Test 43B: Theft Alarm Module Trunk Key Cylinder Sense Switch

Fig 1: Test 43B: Circuit Diagram.

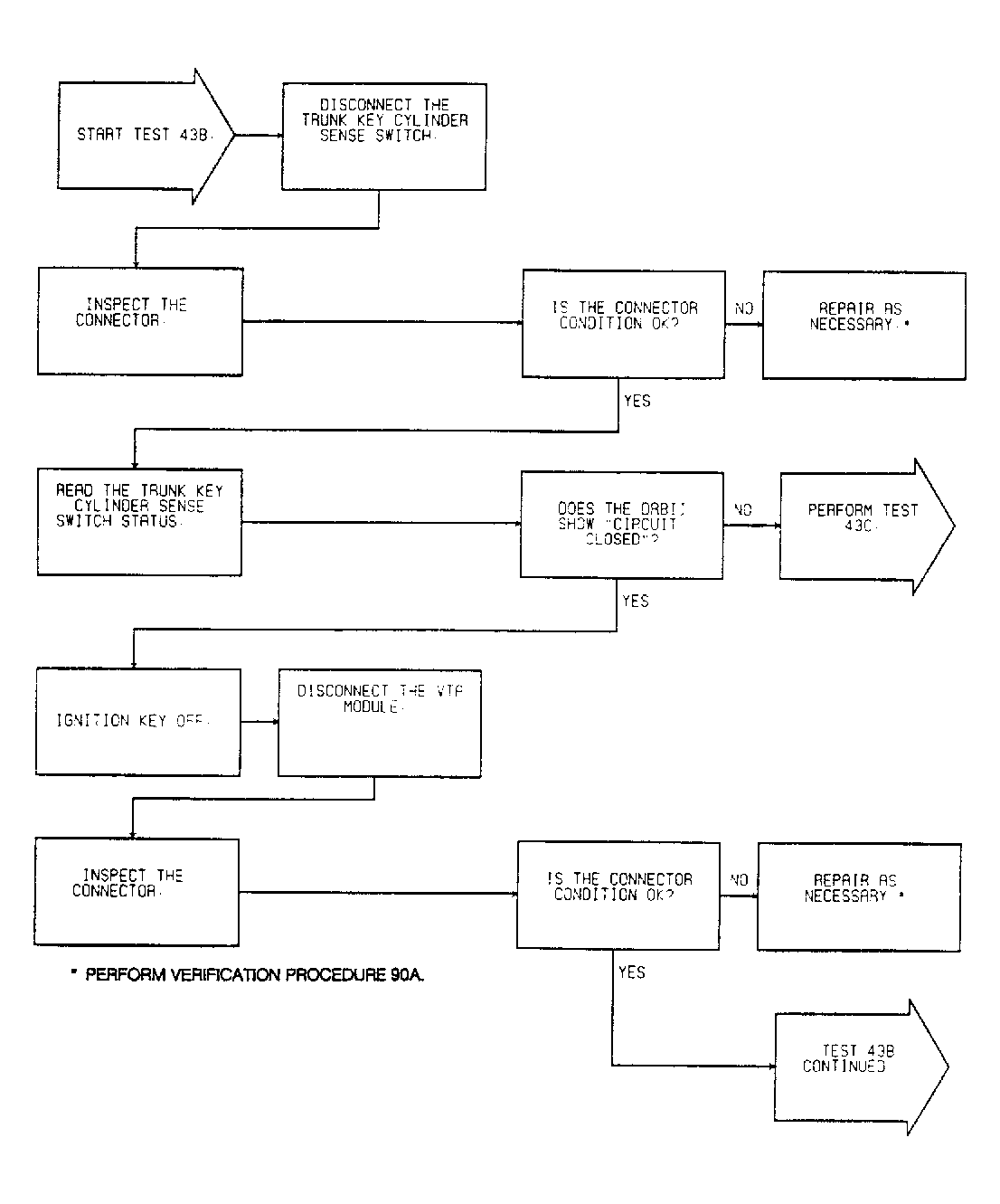

Fig 2: Test 43B: Theft Alarm Trunk Key Cyl Sense Switch (1 of 2)

Fig 3: Test 43B: Theft Alarm Trunk Key Cyl Sense Switch (2 of 2)
