Test 42A: Theft Alarm Module Ignition Run/Acc

Fig 1: Test 42A: Circuit Diagram.

G91D11166

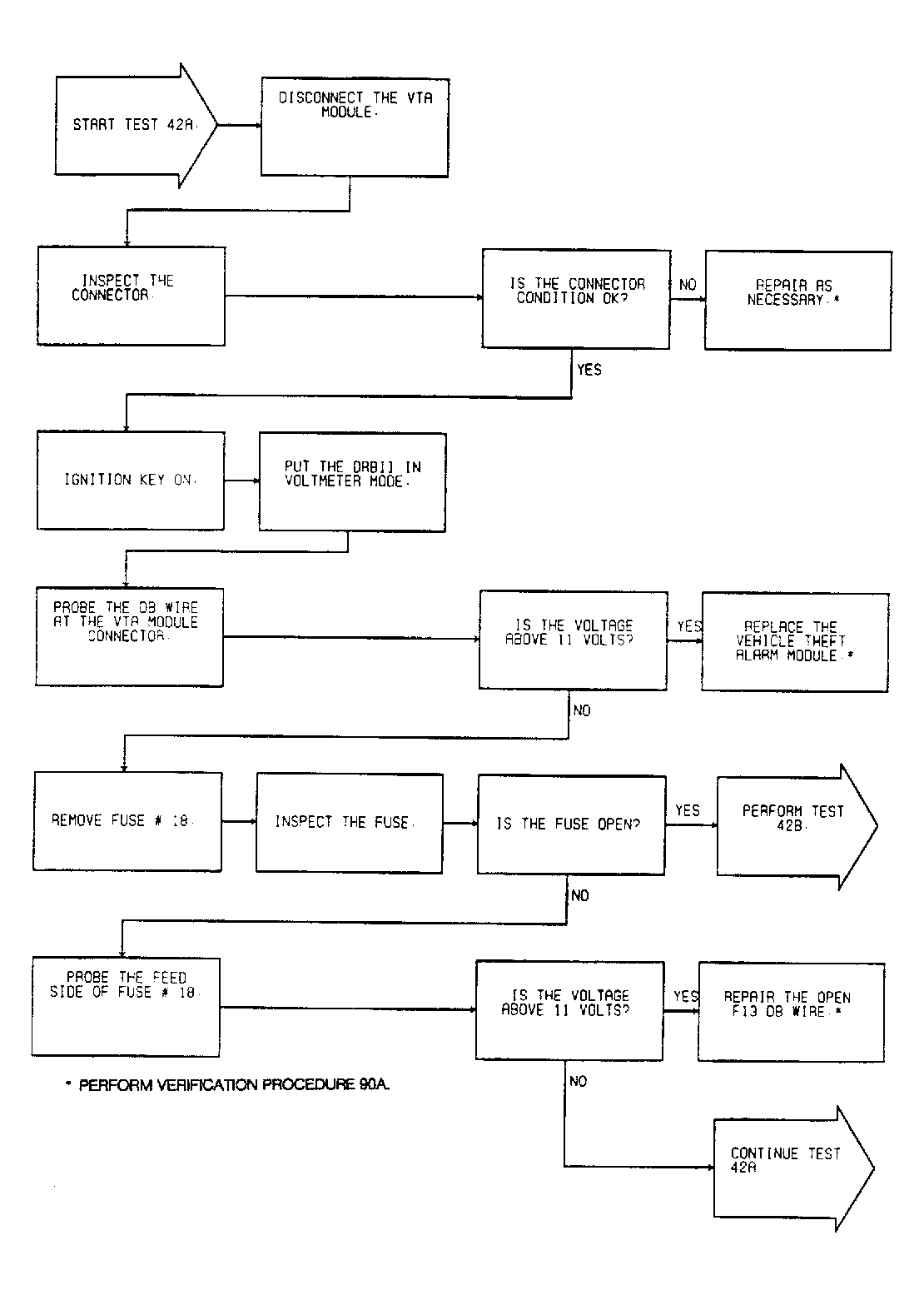

Fig 2: Test 42A: Theft Alarm Ignition RUN/ACC (1 of 2)

G91G11367

Fig 3: Test 42A: Theft Alarm Ignition RUN/ACC (2 of 2)

G91H11368
