Test 41B: Theft Alarm Module Ignition Run Circuit

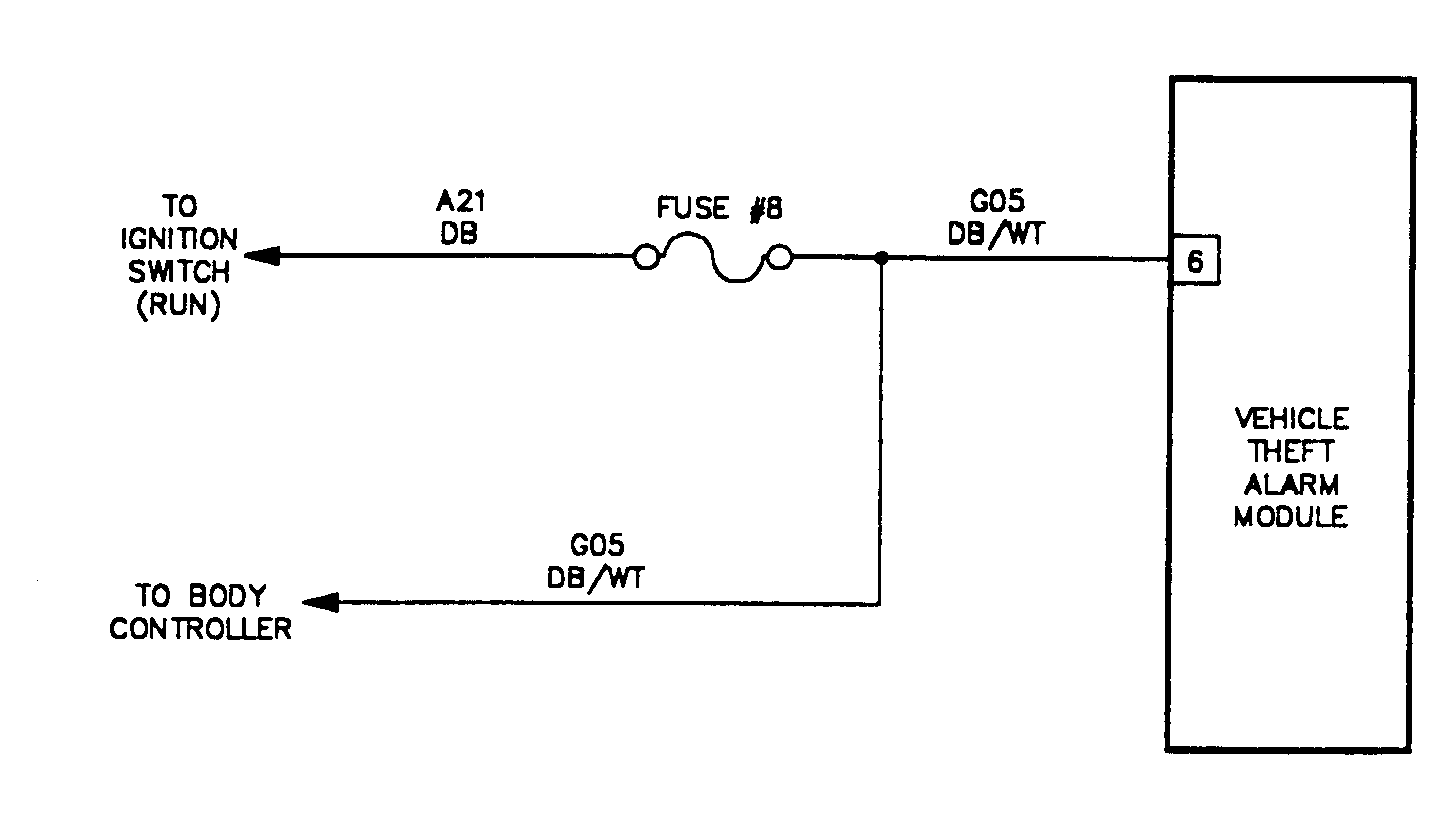

Fig 1: Test 41B: Circuit Diagram.

G91C11165

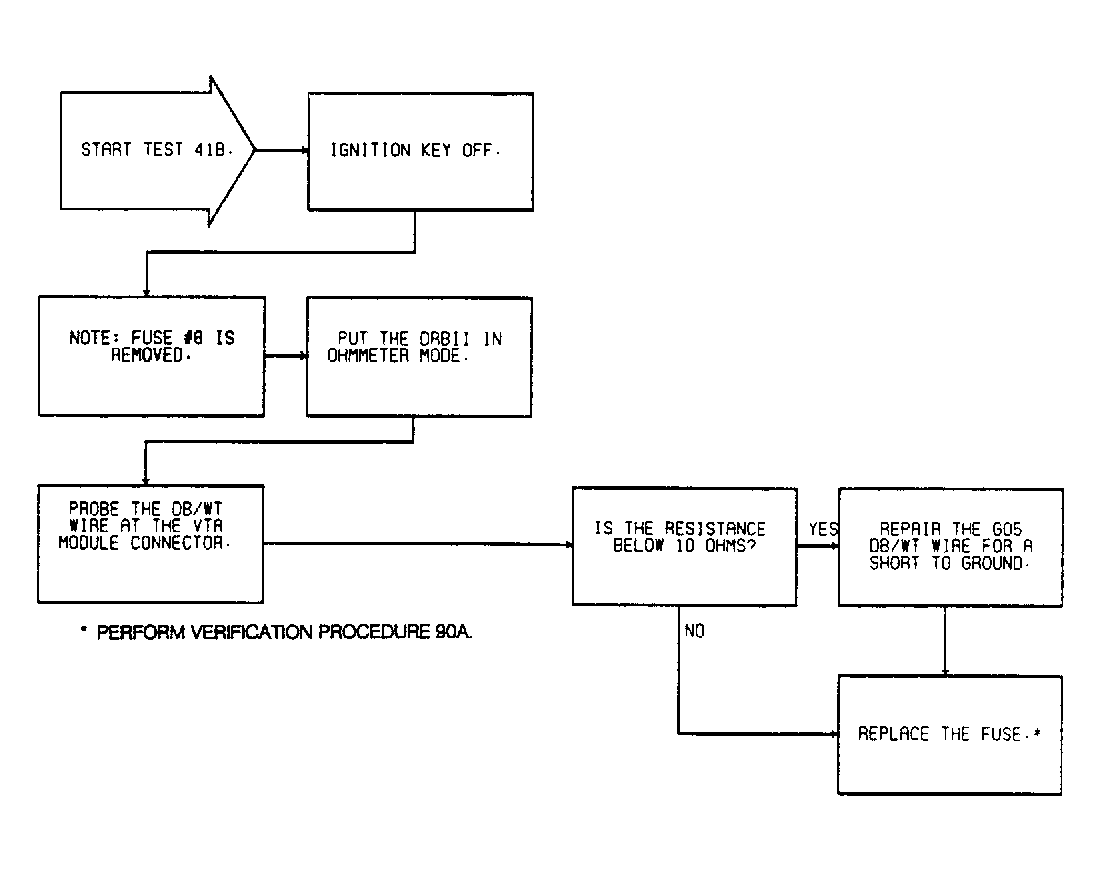

Fig 2: Test 41B: Theft Alarm Ignition Run Circuit

G91F11366
