Test 32A: Cluster Problems Not Identified By Fault Code

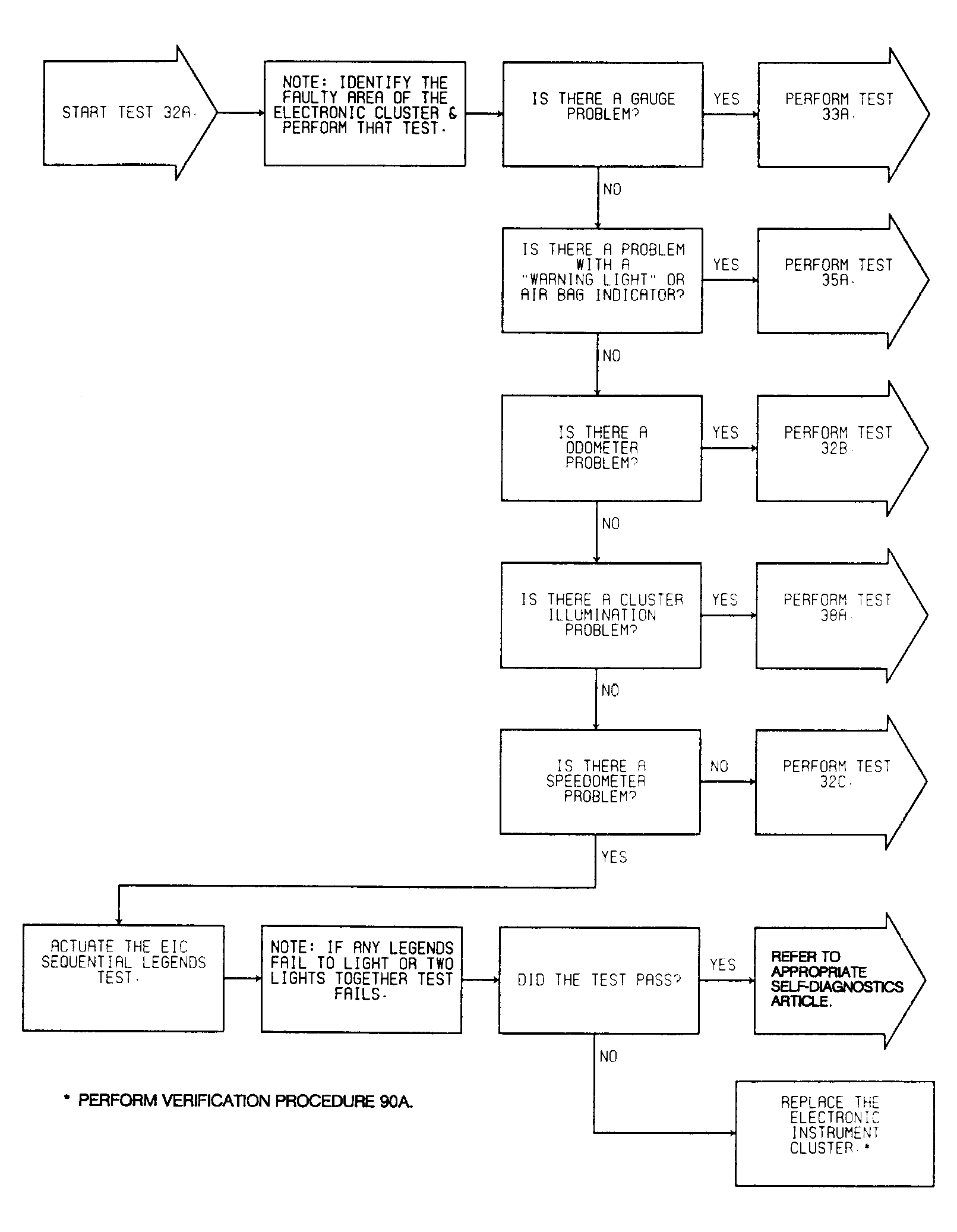

Fig 1: Test 32A: Cluster Problems Not Identified by Fault Code

G91I11203
