Test 57A - Testing For No Termination On Bus

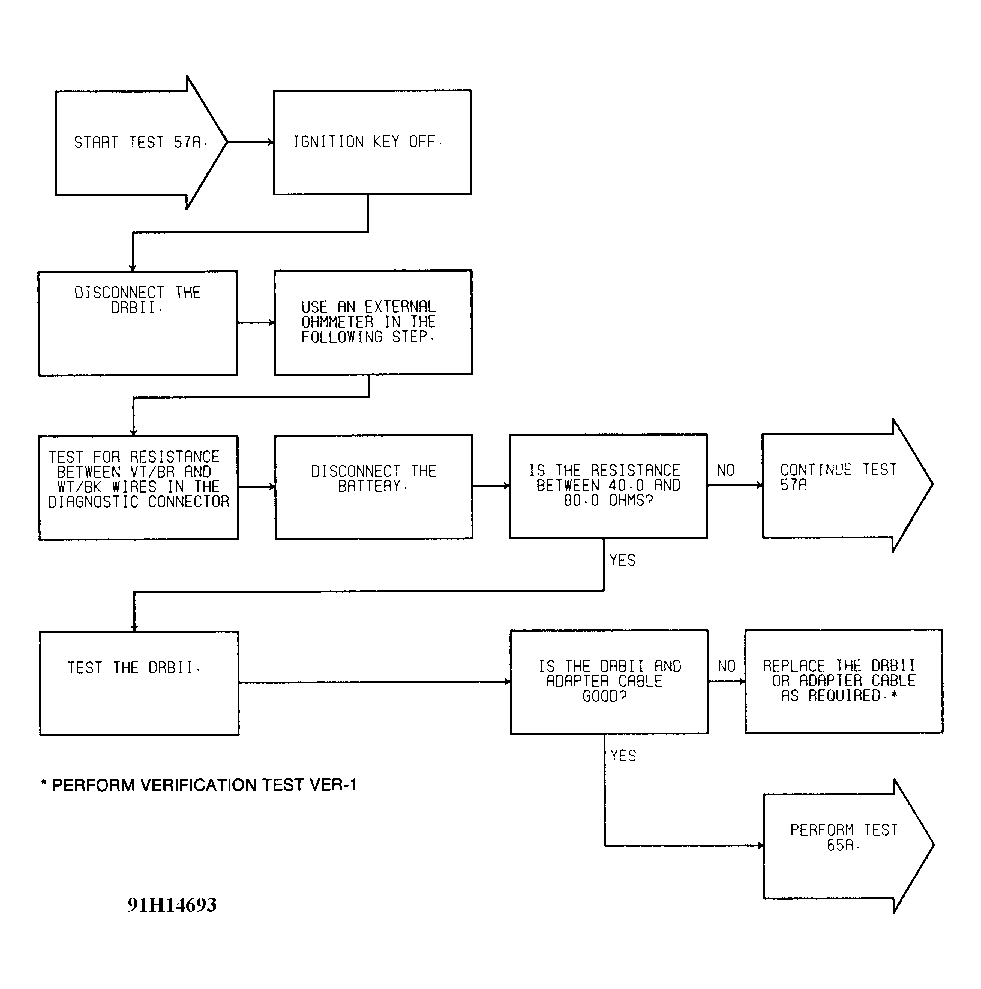

Fig 1: Test 57A (1 of 3) - Testing For No Termination On Bus
G91H14693

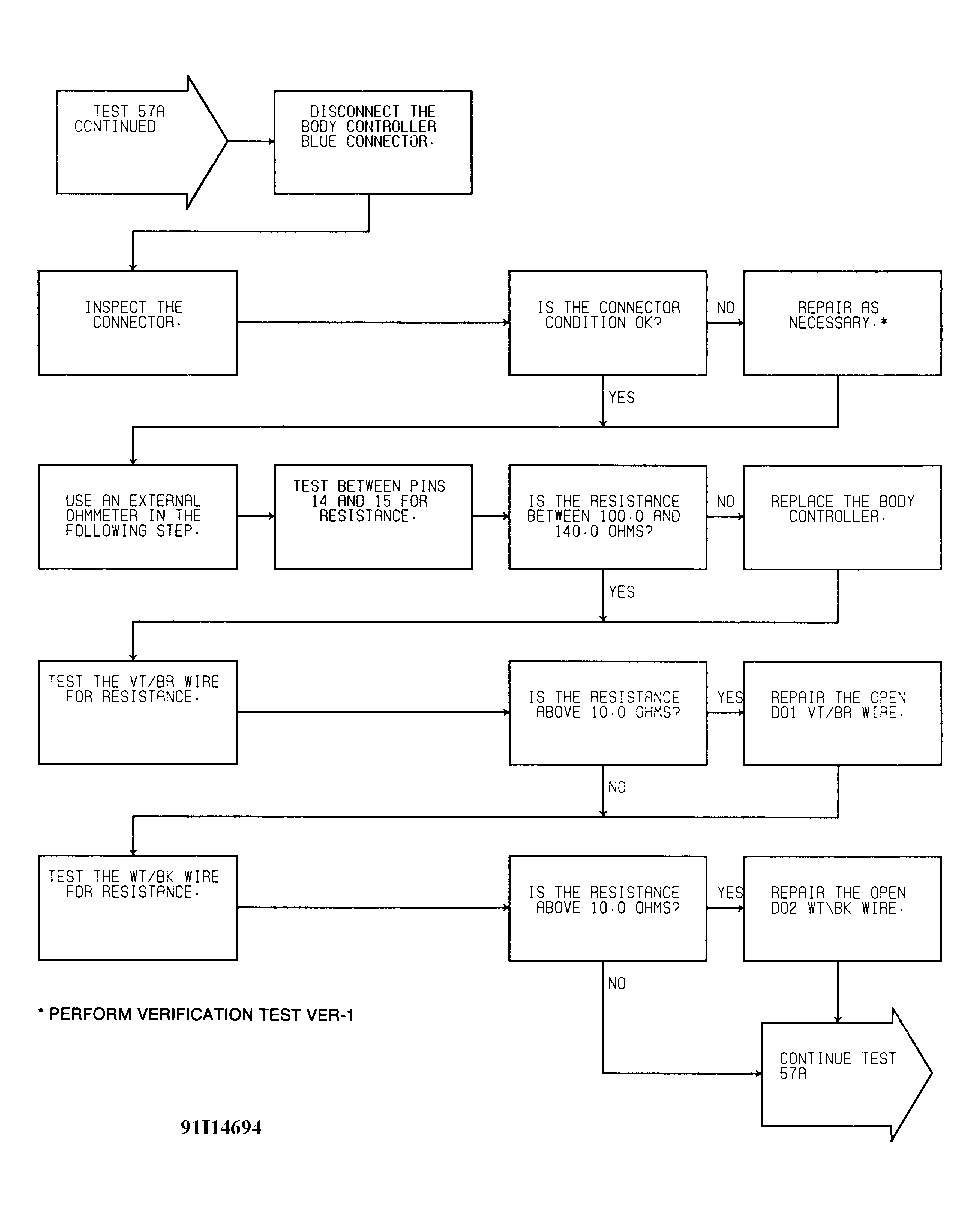

Fig 2: Test 57A (2 of 3) - Testing For No Termination On Bus
G91I14694

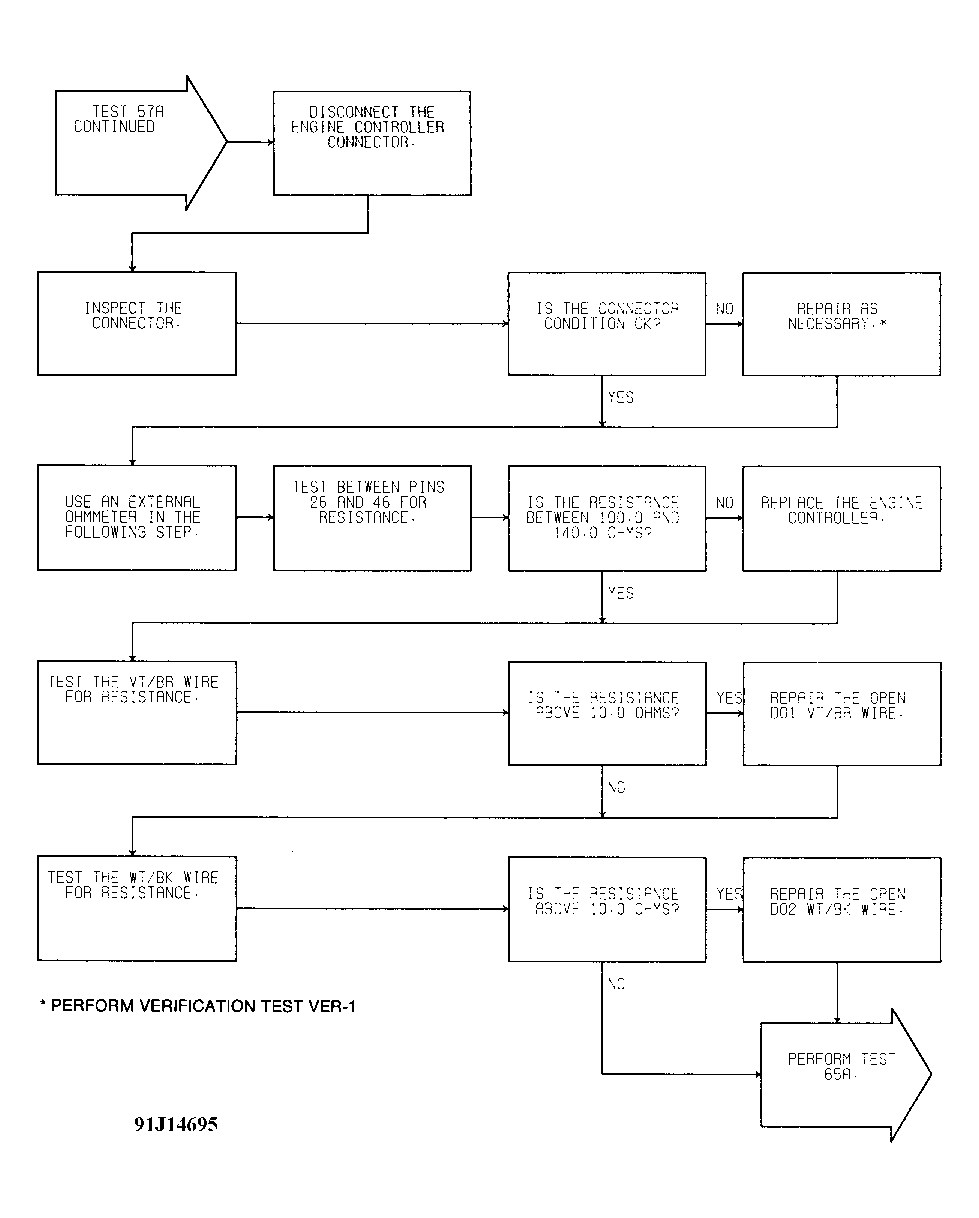

Fig 3: Test 57A (3 of 3) - Testing For No Termination On Bus
G91J14695
