Test 46A - Repairing Faulty Washer Fluid Level Switch

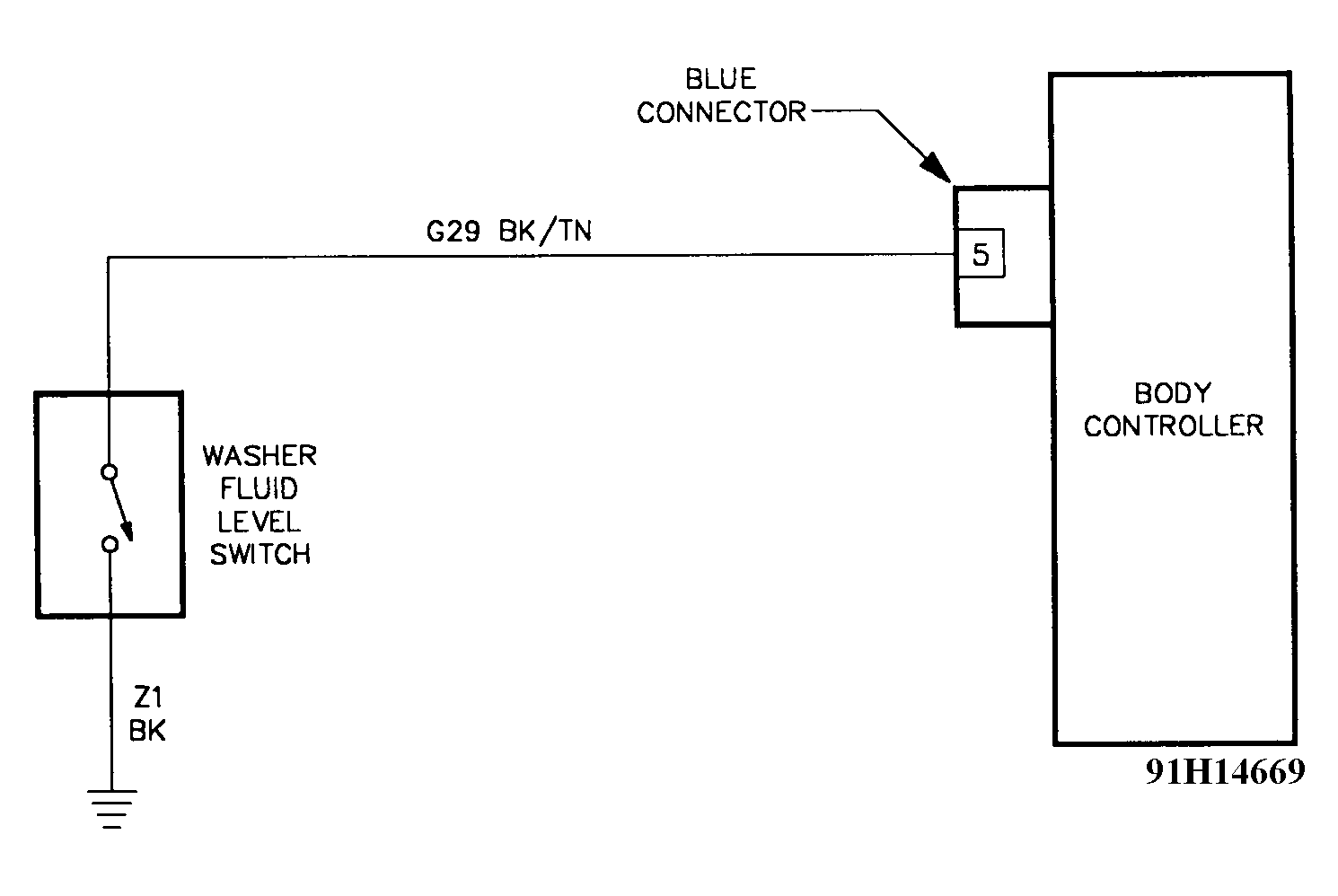

Fig 1: Test 46A Schematic - Repairing Faulty Washer Fluid Level Switch

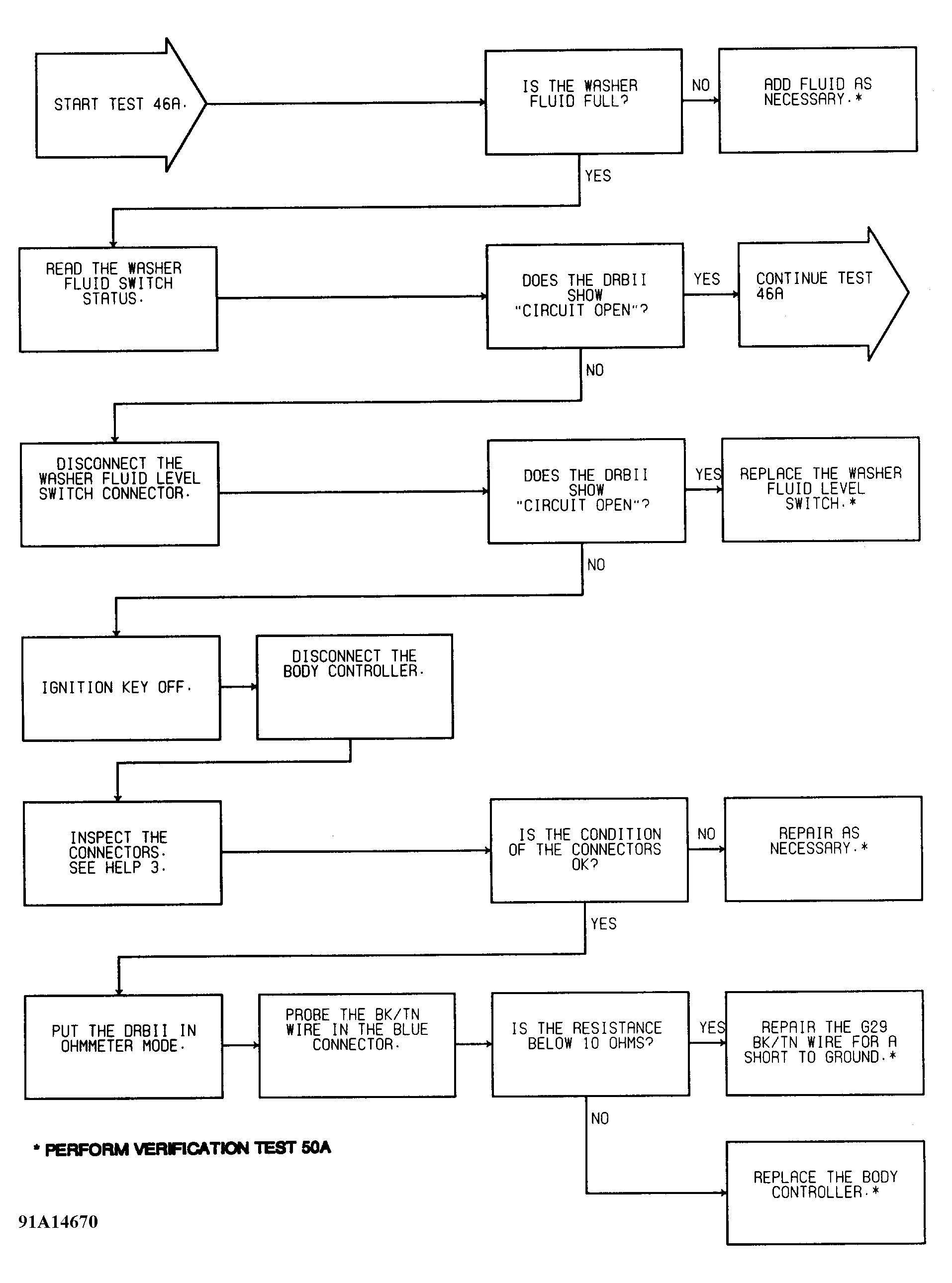

Fig 2: Test 46A Flow Chart (1 of 2) - Repairing Faulty Washer Fluid Level Switch

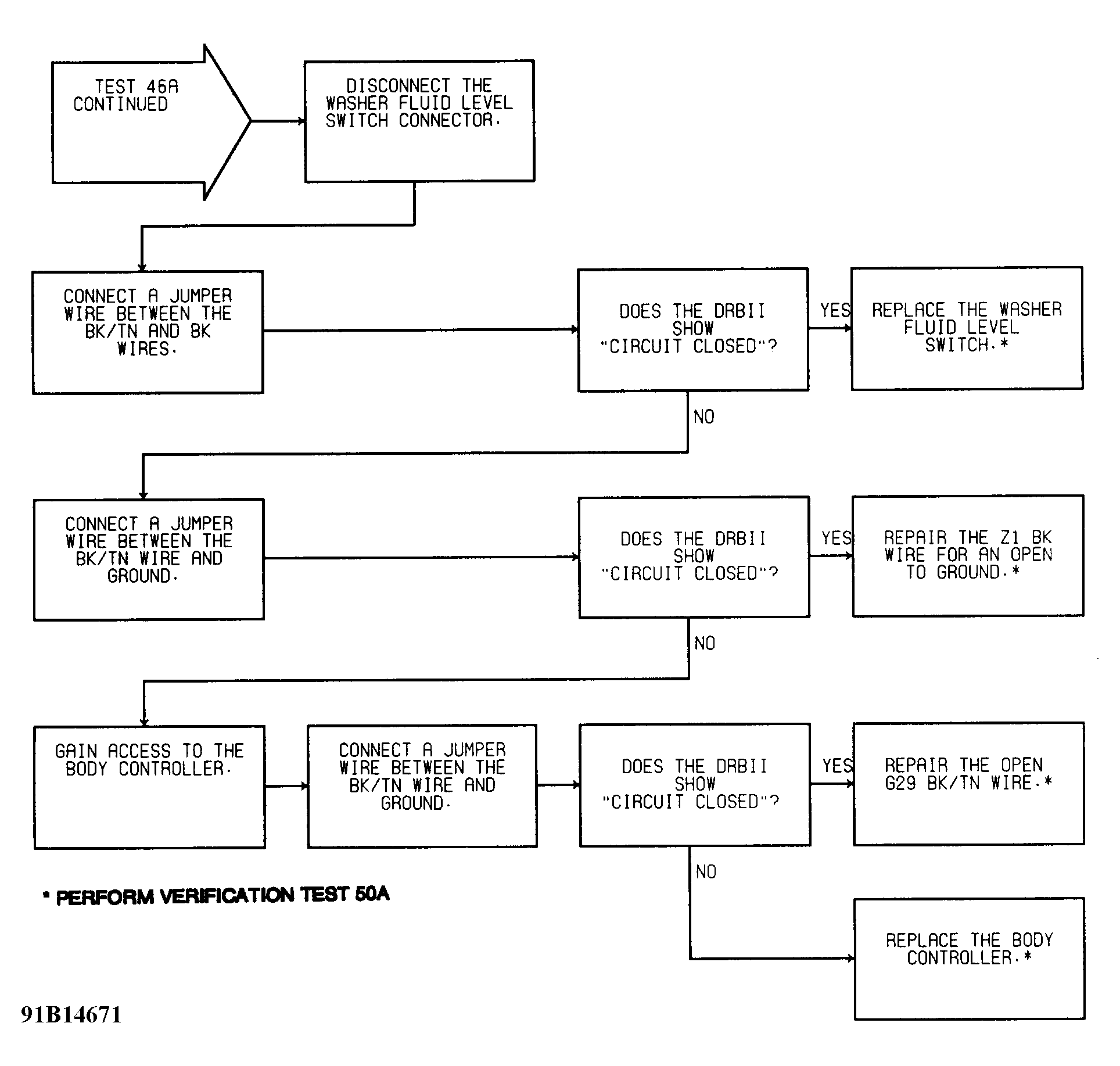

Fig 3: Test 46A Flow Chart (2 of 2) - Repairing Faulty Washer Fluid Level Switch
