Theft Alarm Module Test 59: Driver's Door Key Cylinder Switch Test

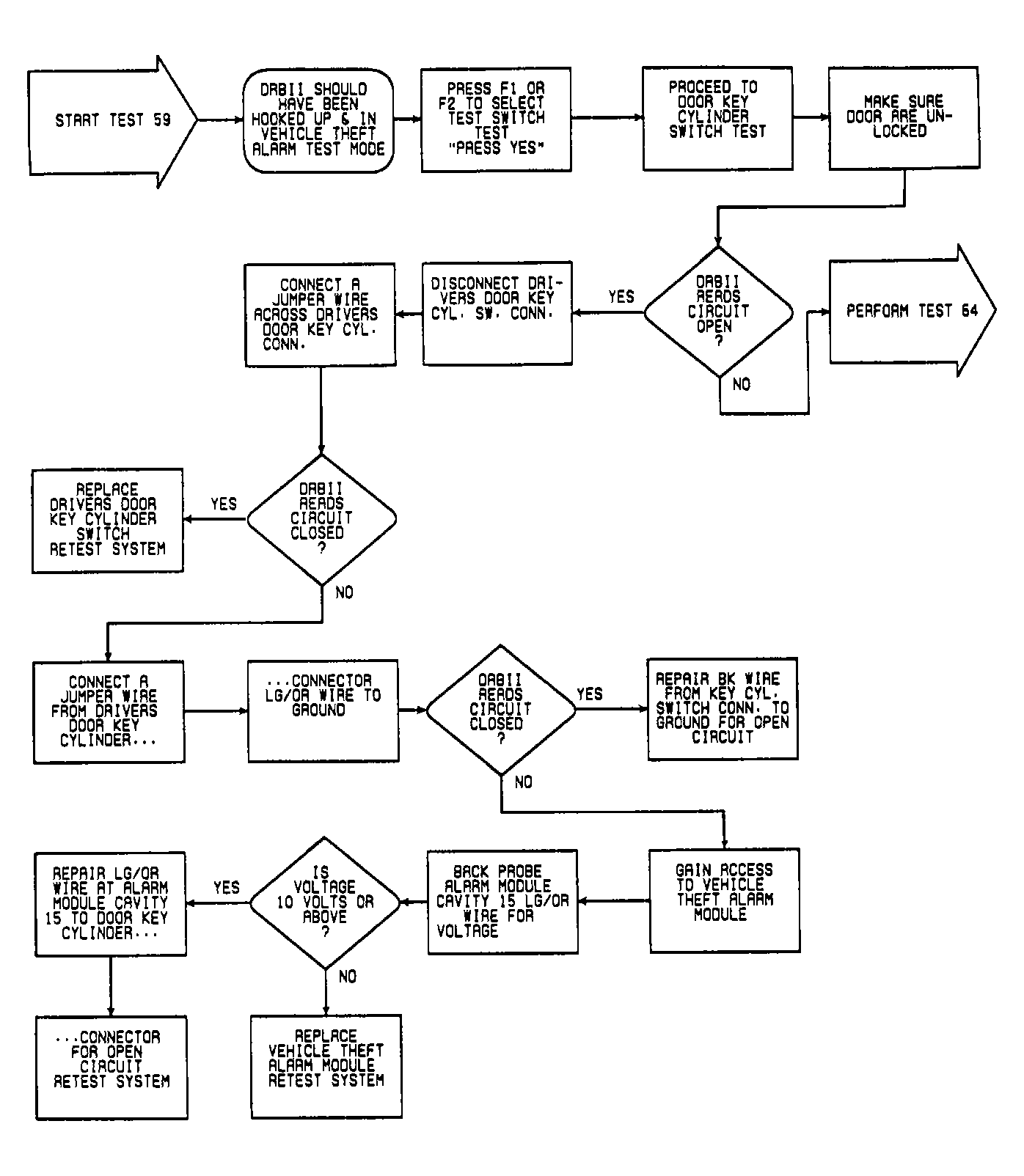

Fig 1: Test 59 Circuit Diagram & Flow Chart
