Traveler SYS Test 88: Repair Elapsed Time Function

Fig 1: Test 88 Circuit Diagram

G90H16466

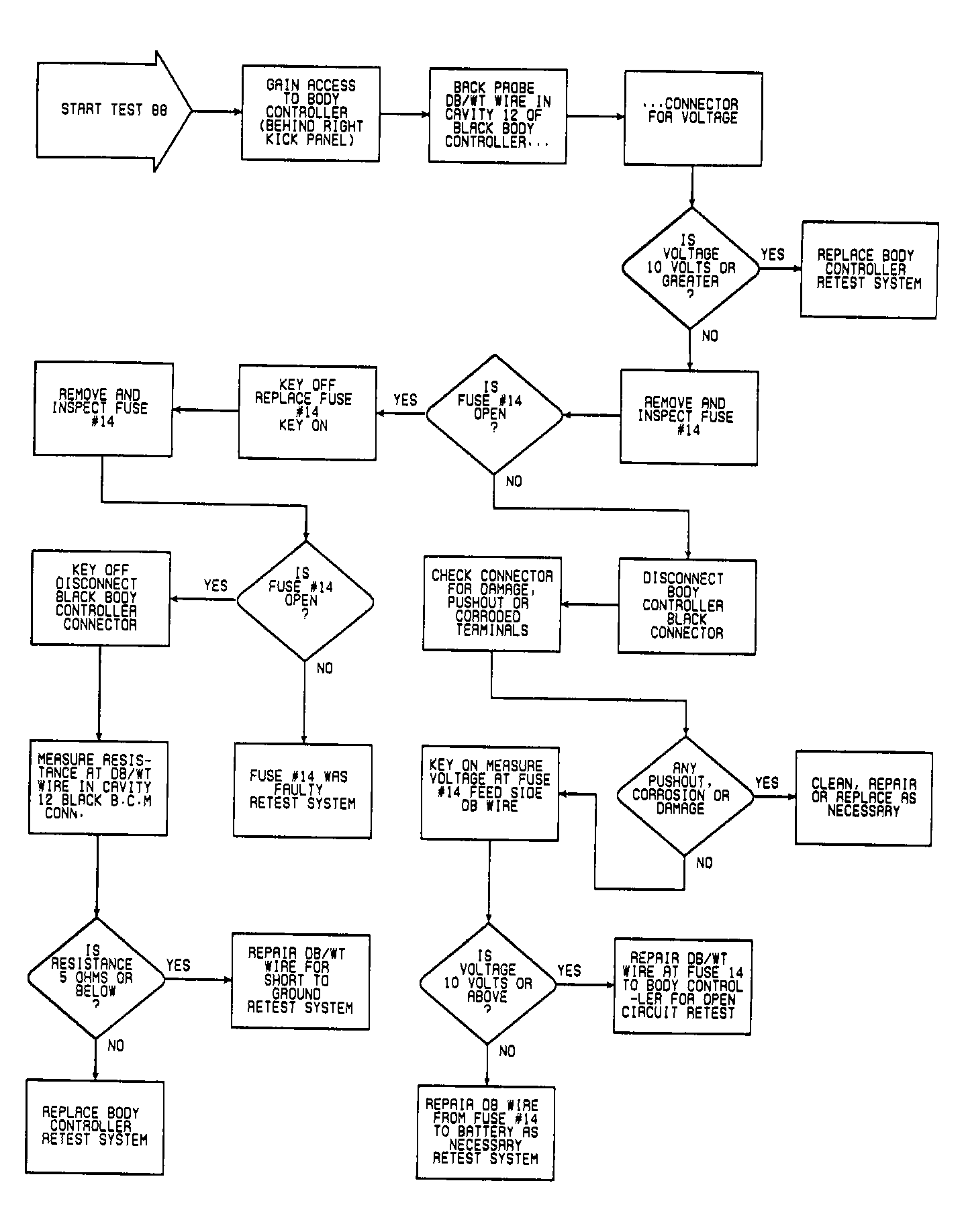

Fig 2: Test 88 Flow Chart

G90H12564
