Theft Alarm Module Test 56: Hood Ajar Switch Test

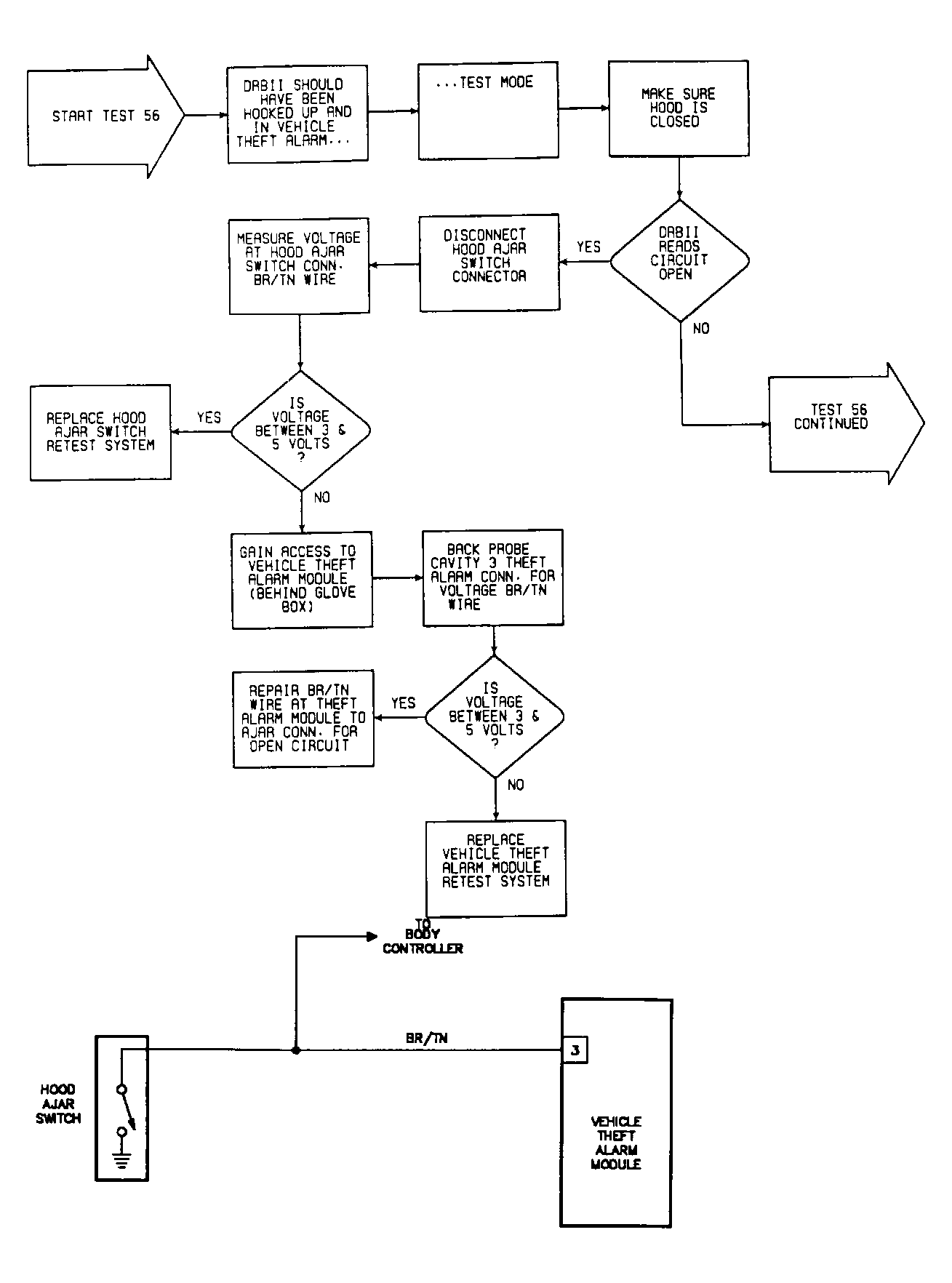

Fig 1: Test 56 Flow Chart (1 of 2)

G90B12519

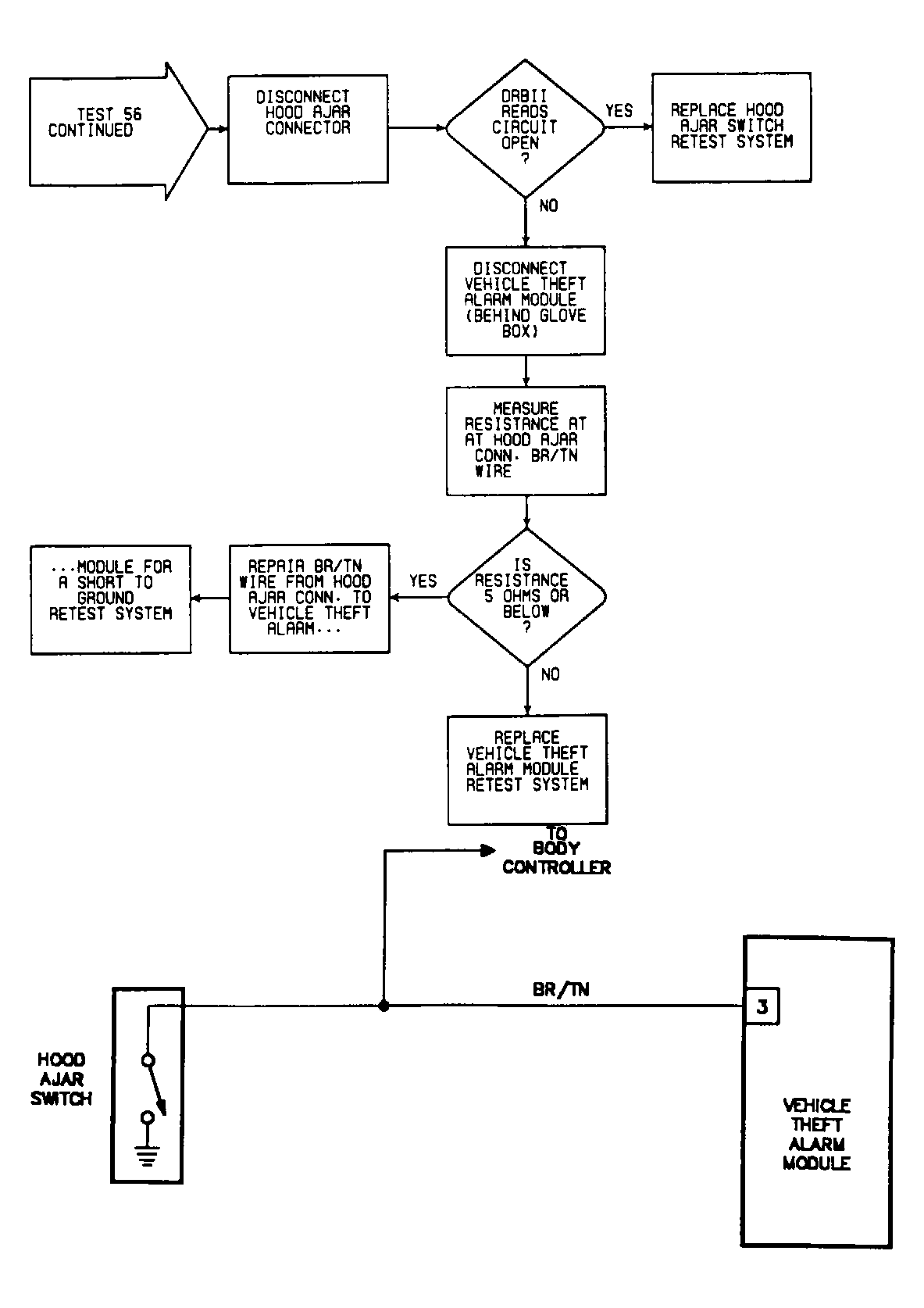

Fig 2: Test 56 Flow Chart (2 of 2)

G90E12520
