Test 51: Diagnosing Vehicle Theft Alarm Module

Fig 1: Test 51 Circuit Diagram

G90G16457

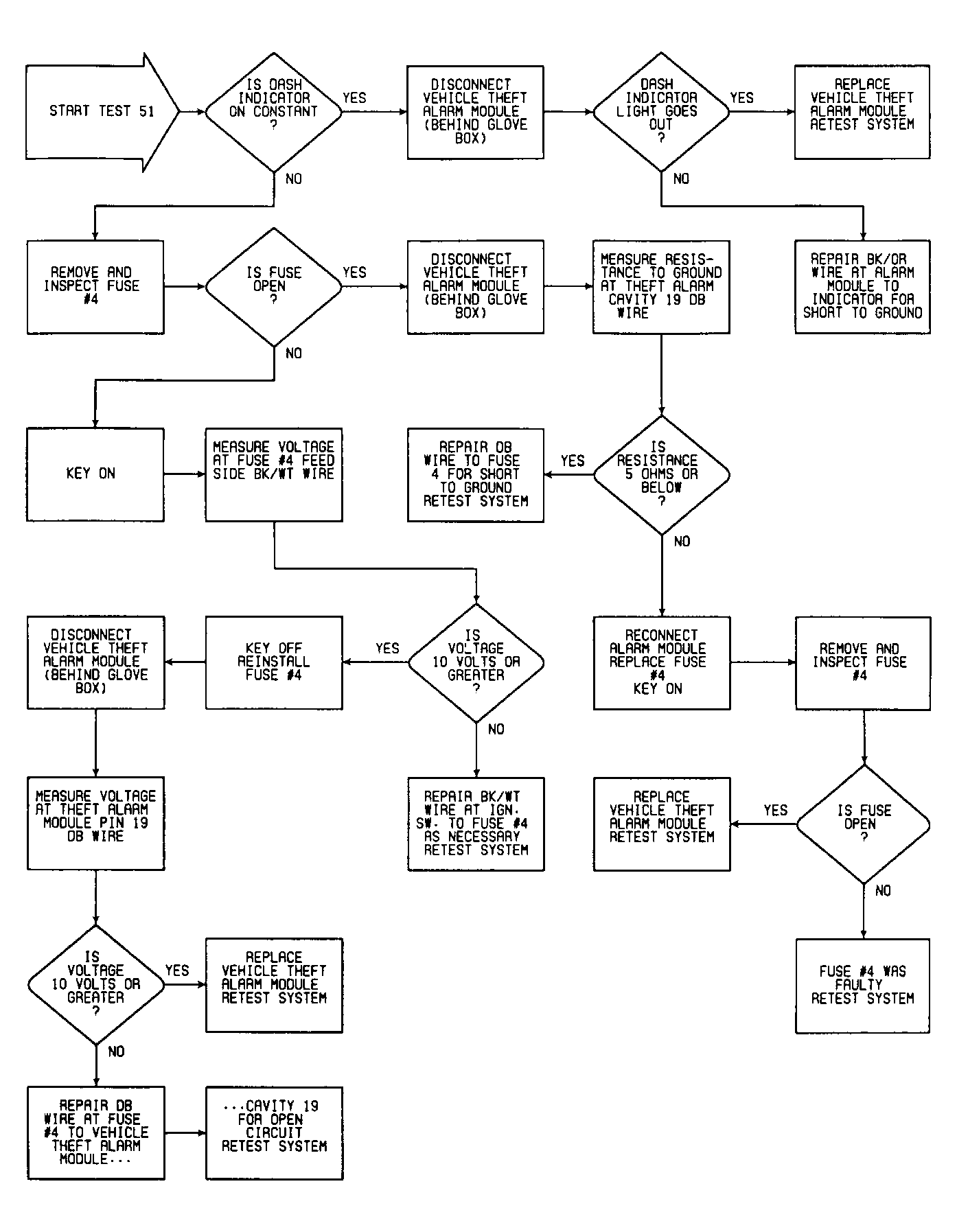

Fig 2: Test 51 Flow Chart

G90F12513
