Elect Cluster Test 44: Brake Light Not Operating Properly

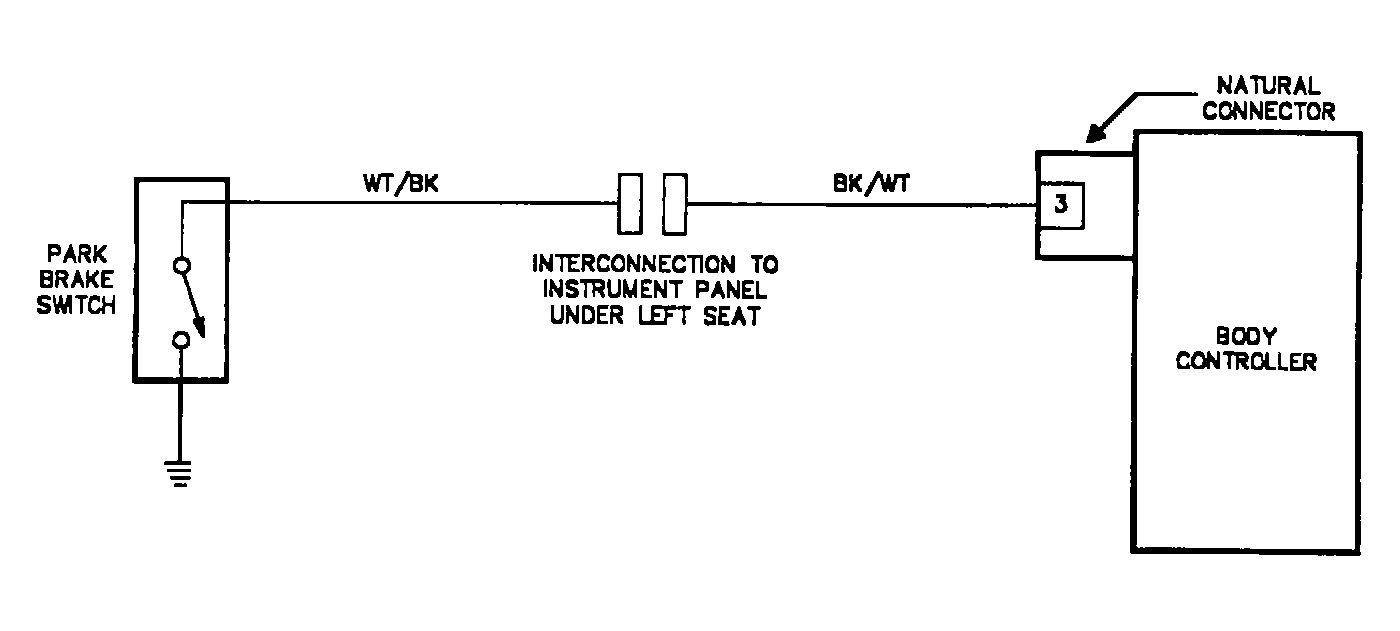

Fig 1: Test 44 Circuit Diagram (For 1 of 2)

G90G06057

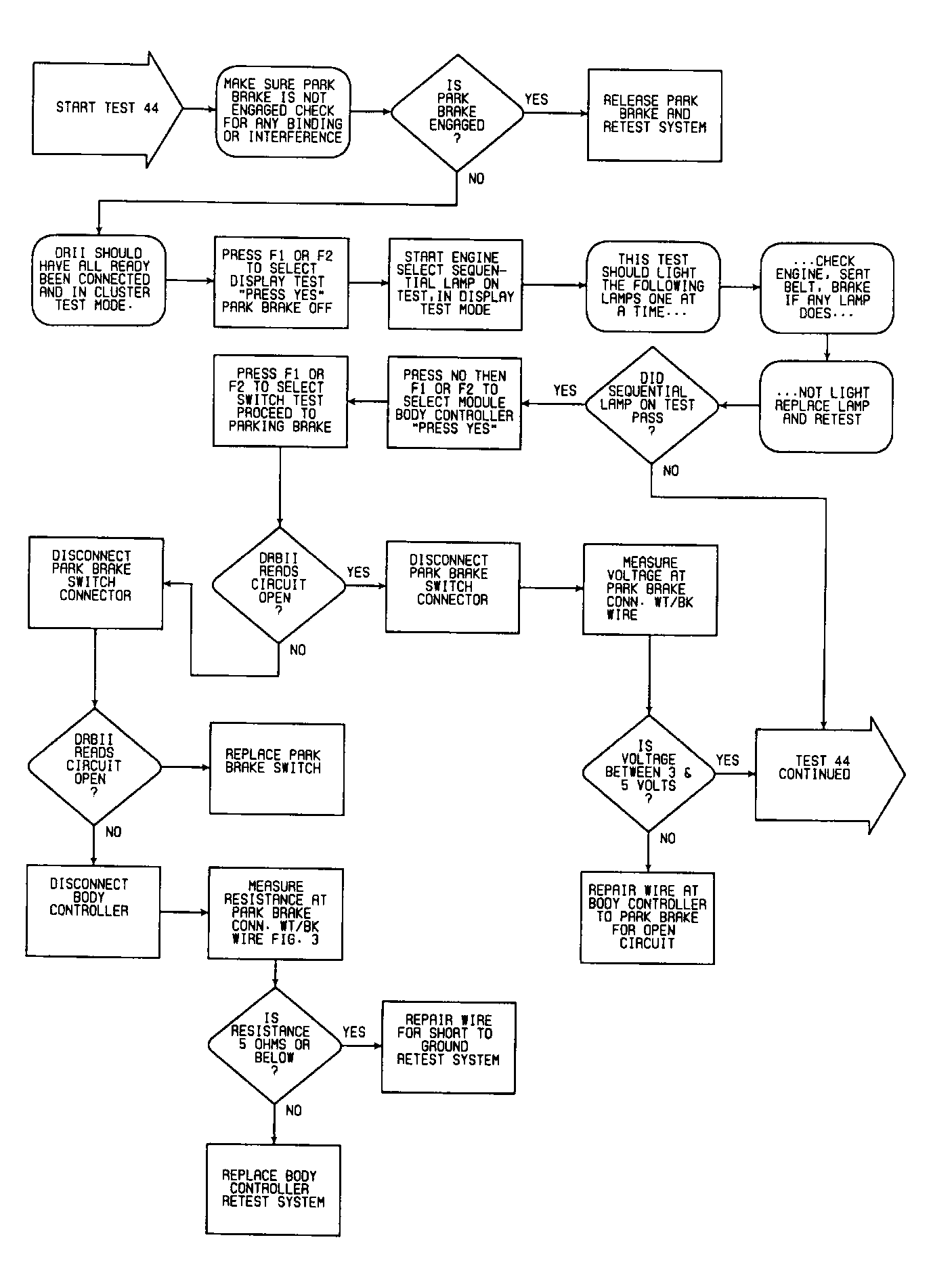

Fig 2: Test 44 Flow Chart (1 of 2)

G90A12500

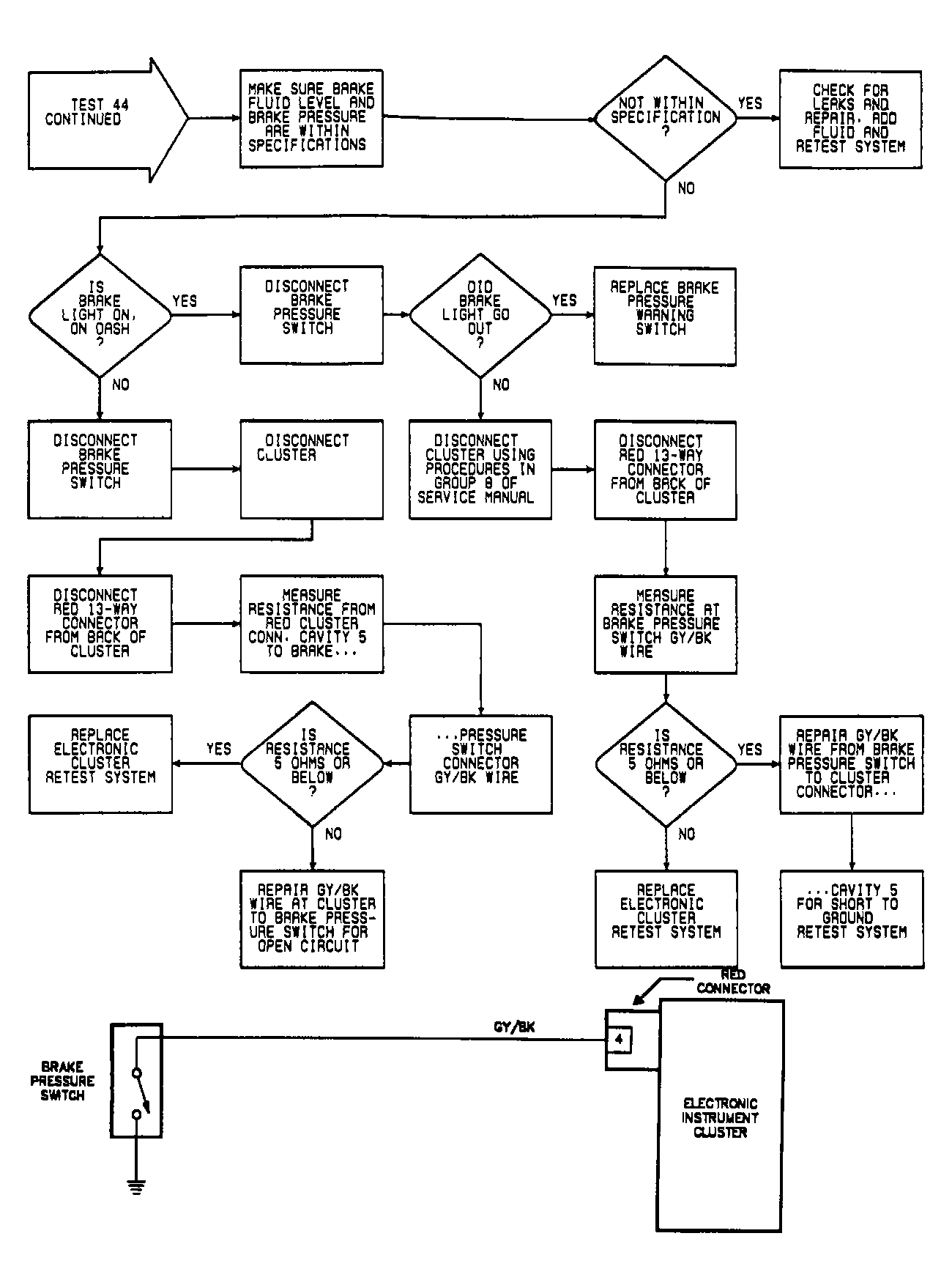

Fig 3: Test 44 Circuit Diagram & Flow Chart (2 of 2)

G90B12501
