EVIC Panel Test 16: Key In IGN

Fig 1: Test 16 Circuit Diagram

G90H16433

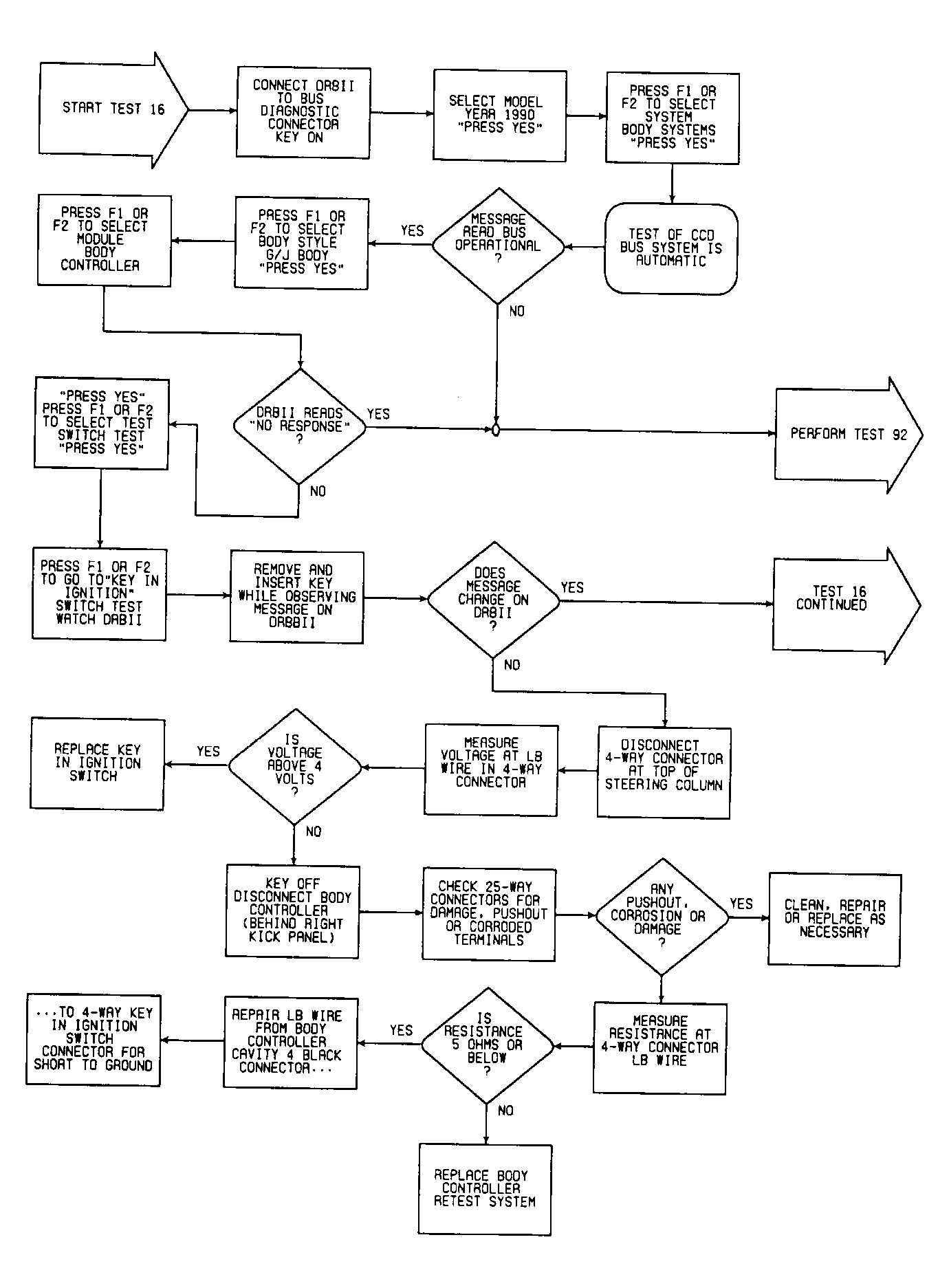

Fig 2: Test 16 Flow Chart (1 of 2)

G90C12460

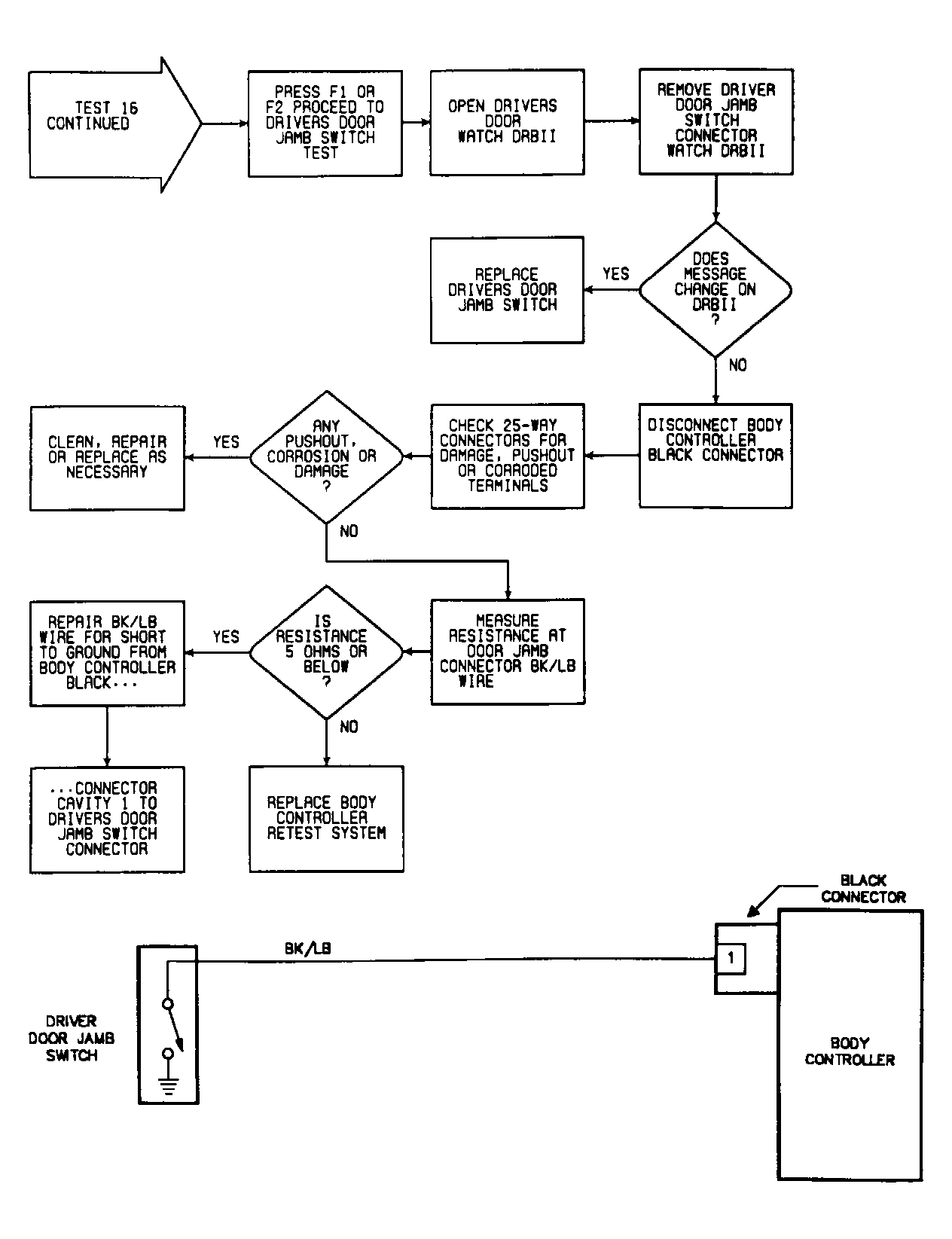

Fig 3: Test 16 Flow Chart (2 of 2)

G90D12461
