Theft Alarm Module Test 58: Power Door Unlock Test

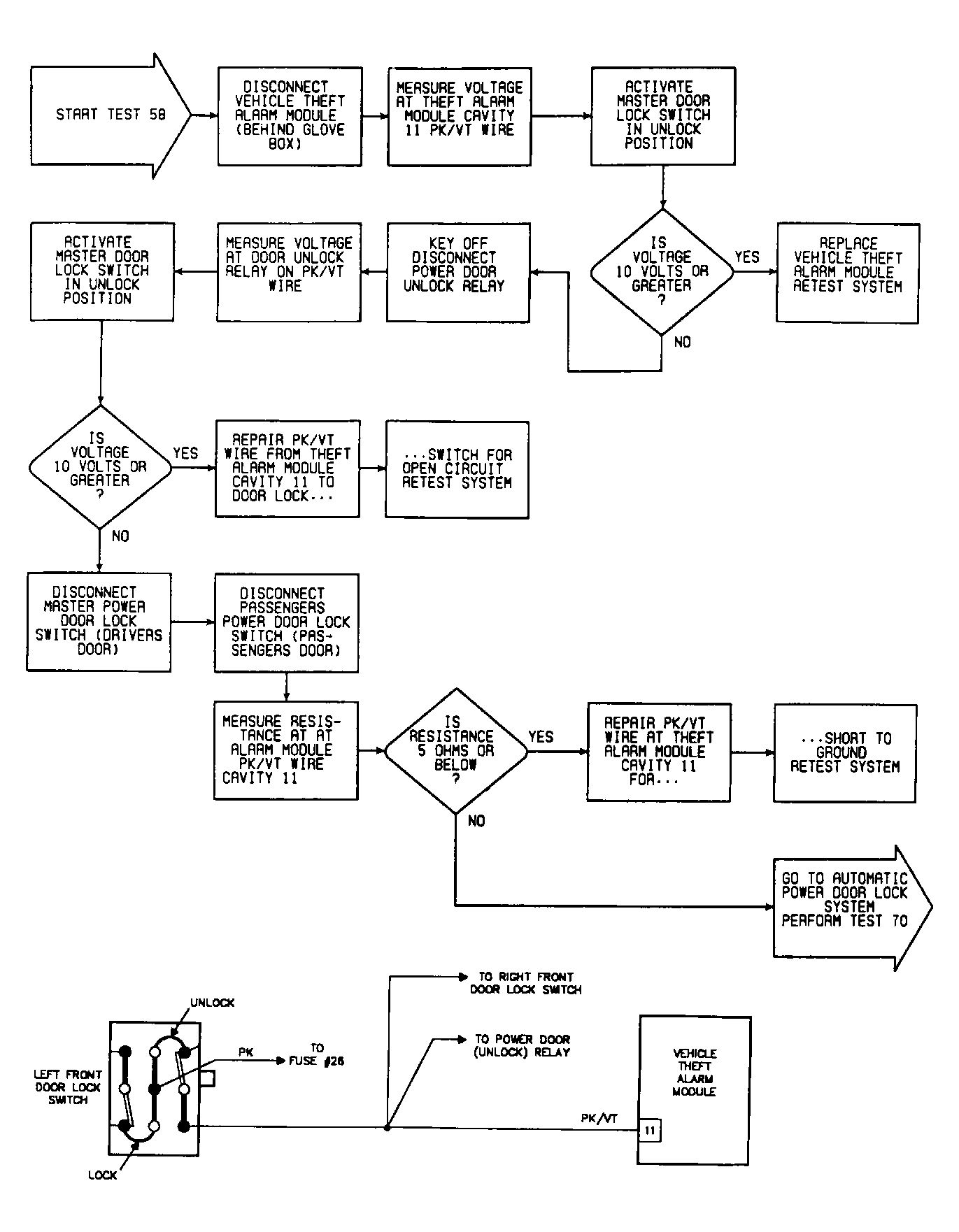

Fig 1: Test 58 Circuit Diagram & Flow Chart

G90G12522
