Test 49: Diagnosing Vehicle Theft Alarm Module

Fig 1: Test 49 Circuit Diagram

G90F16456

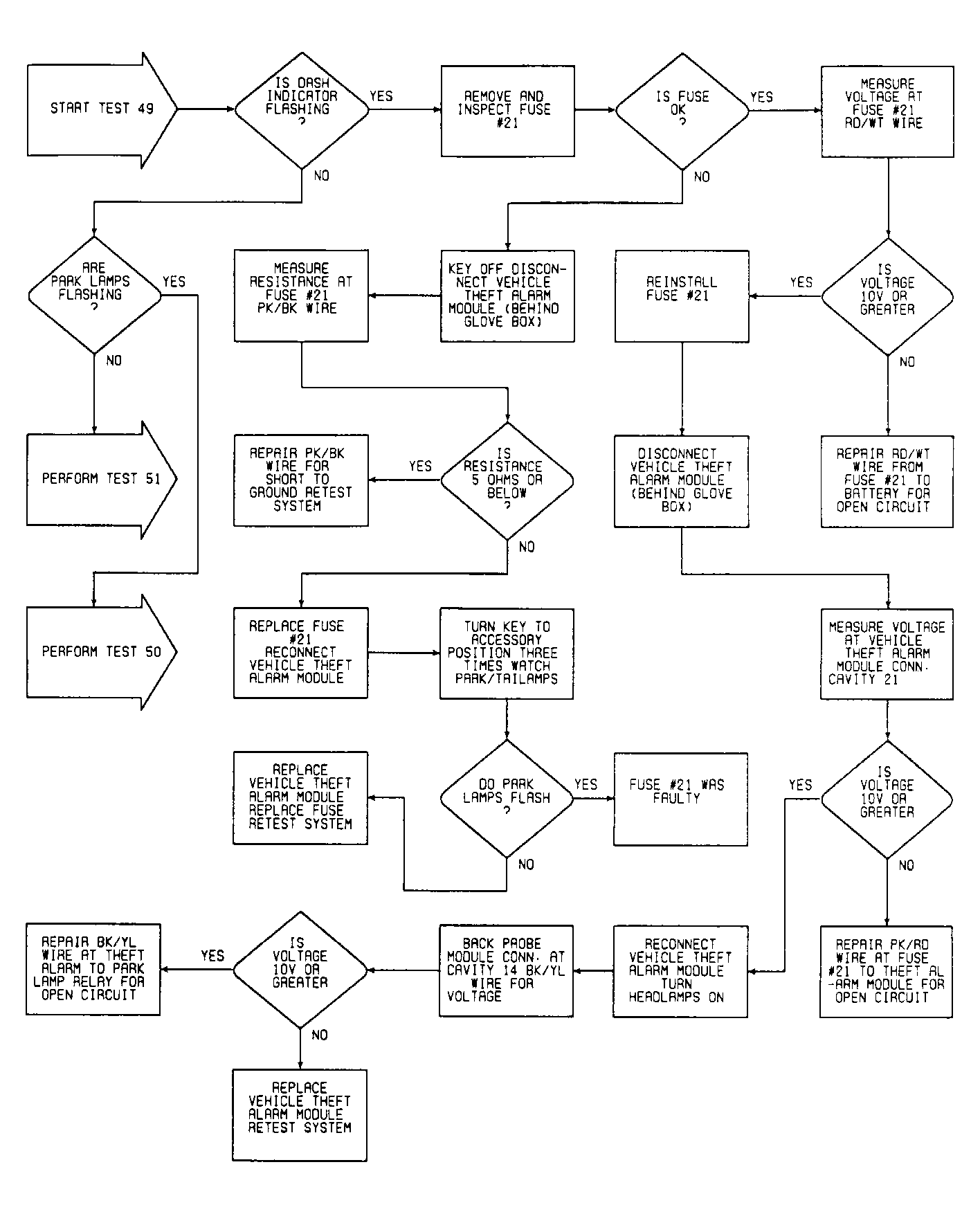

Fig 2: Test 49 Flow Chart

G90D12511
