Test 48: Diagnosing Vehicle Theft Alarm Module

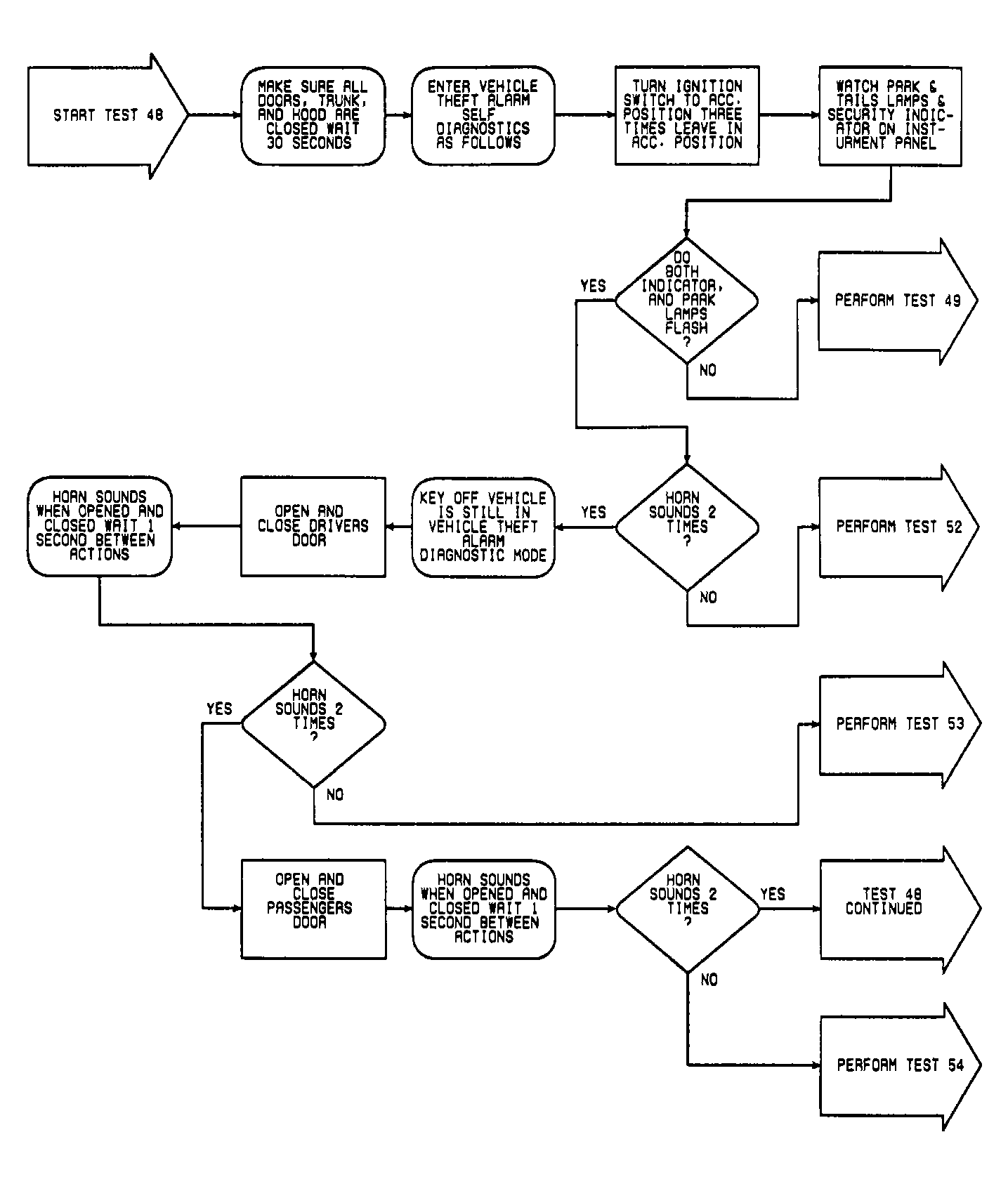

Fig 1: Test 48 Flow Chart (1 of 4)

G90H12507

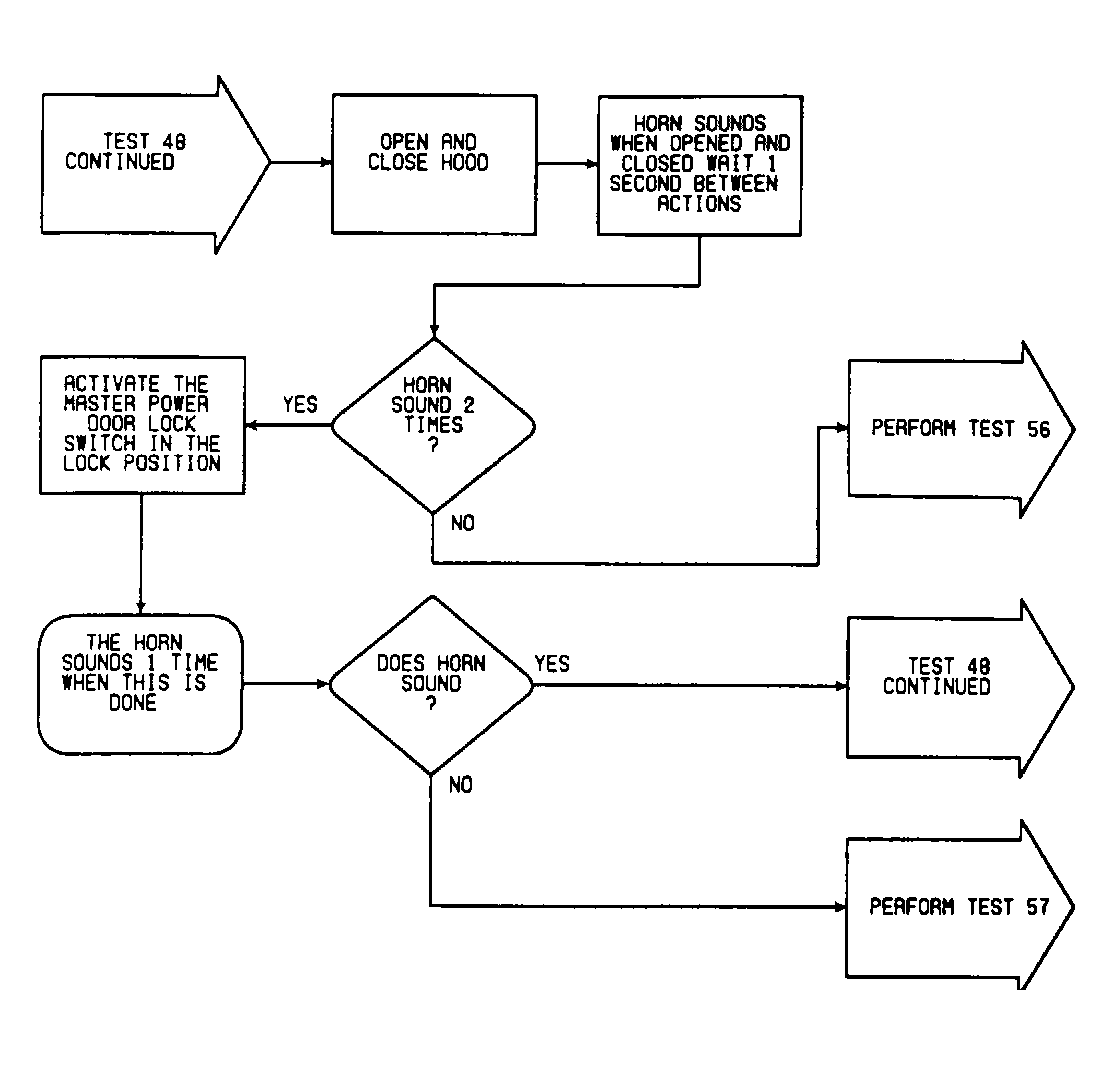

Fig 2: Test 48 Flow Chart (2 of 4)

G90I12508

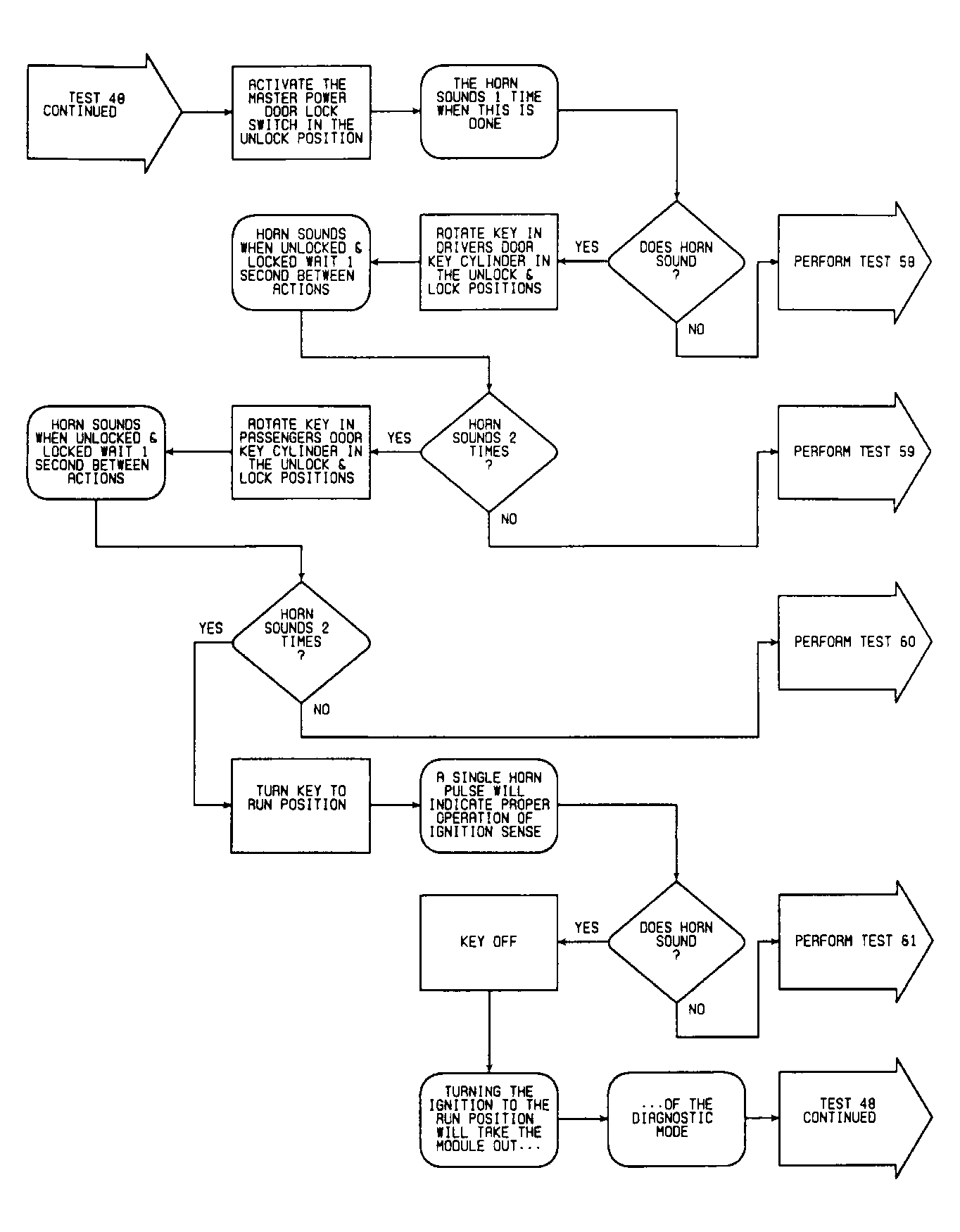

Fig 3: Test 48 Flow Chart (3 of 4)

G90J12509

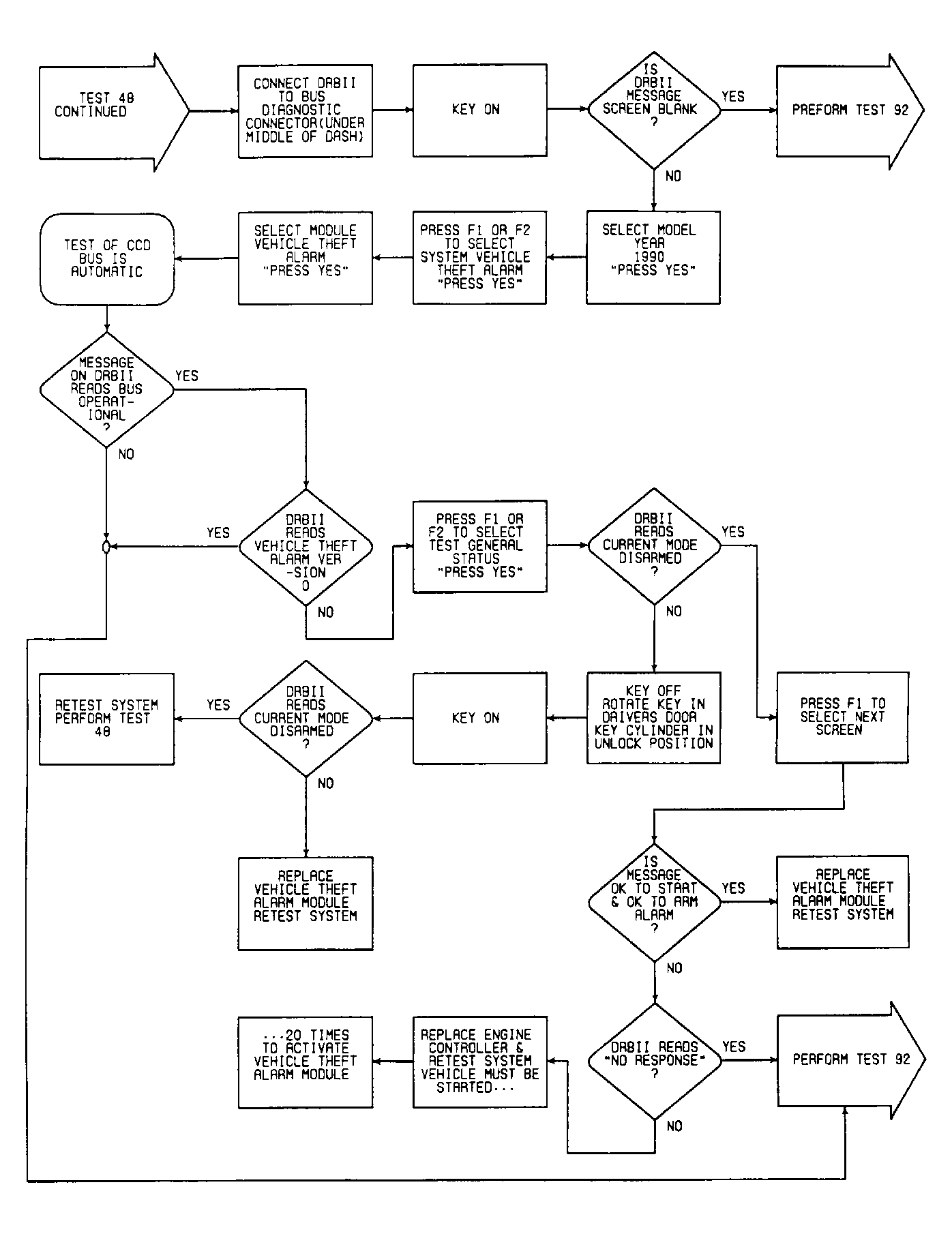

Fig 4: Test 48 Flow Chart (4 of 4)

G90C12510
