Test 47: Diagnosing Vehicle Theft Alarm Module

Fig 1: Test 47 Circuit Diagram (For 1 of 2)

G90E16455

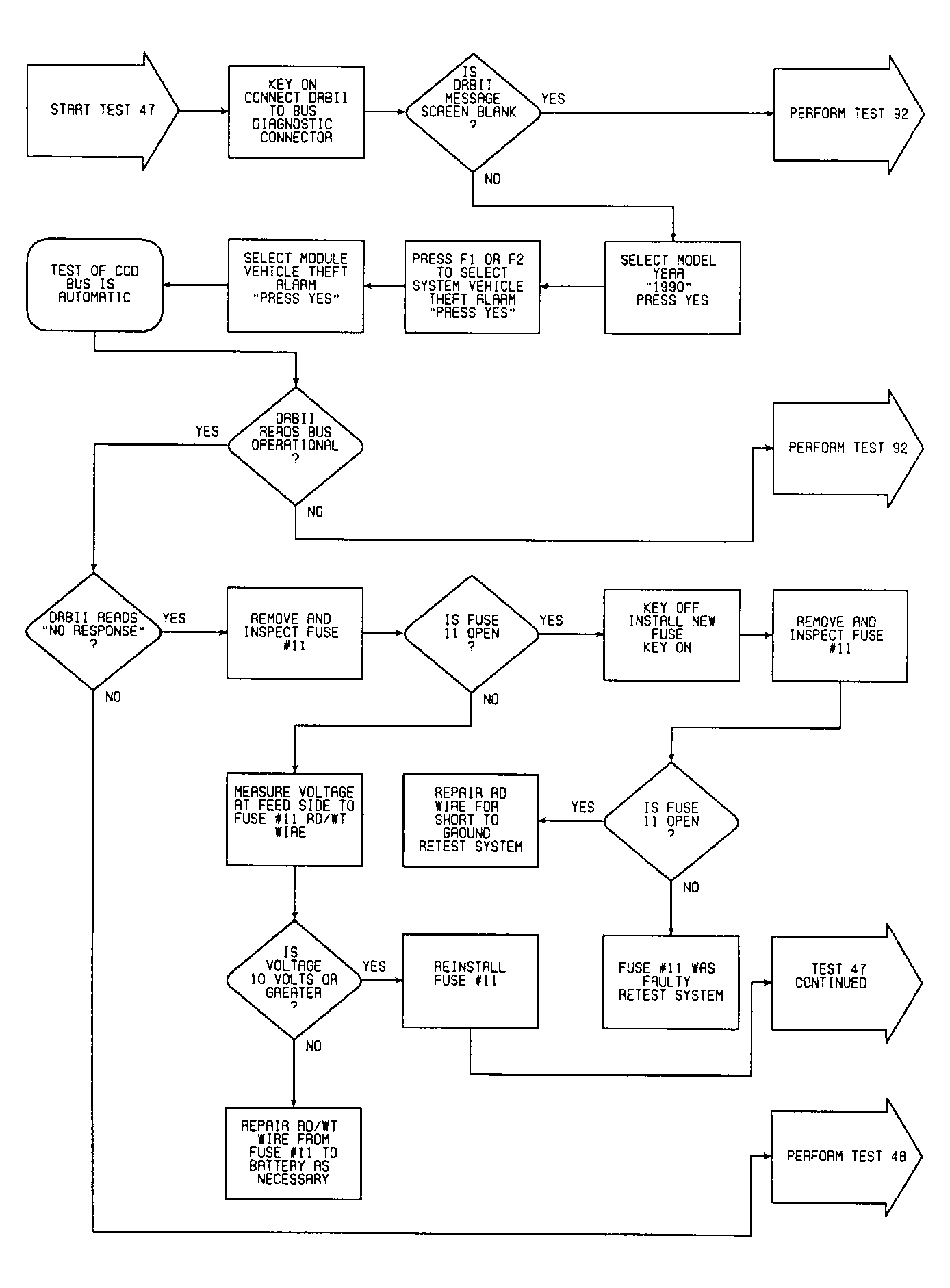

Fig 2: Test 47 Flow Chart (1 of 2)

G90F12505

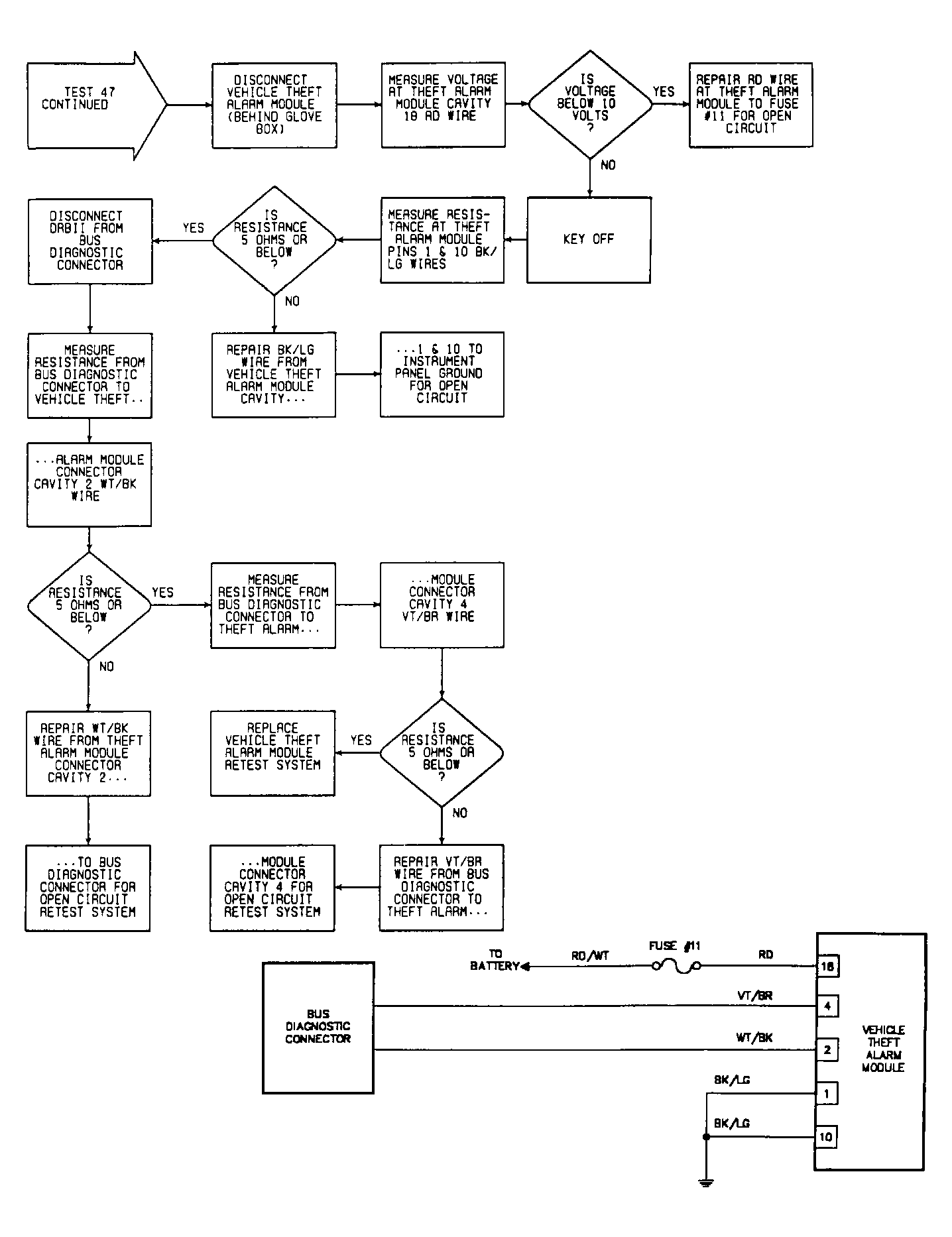

Fig 3: Test 47 Circuit Diagram & Flow Chart (2 of 2)

G90G12506
