Test 34: EVIC Head Monitor Switch Test

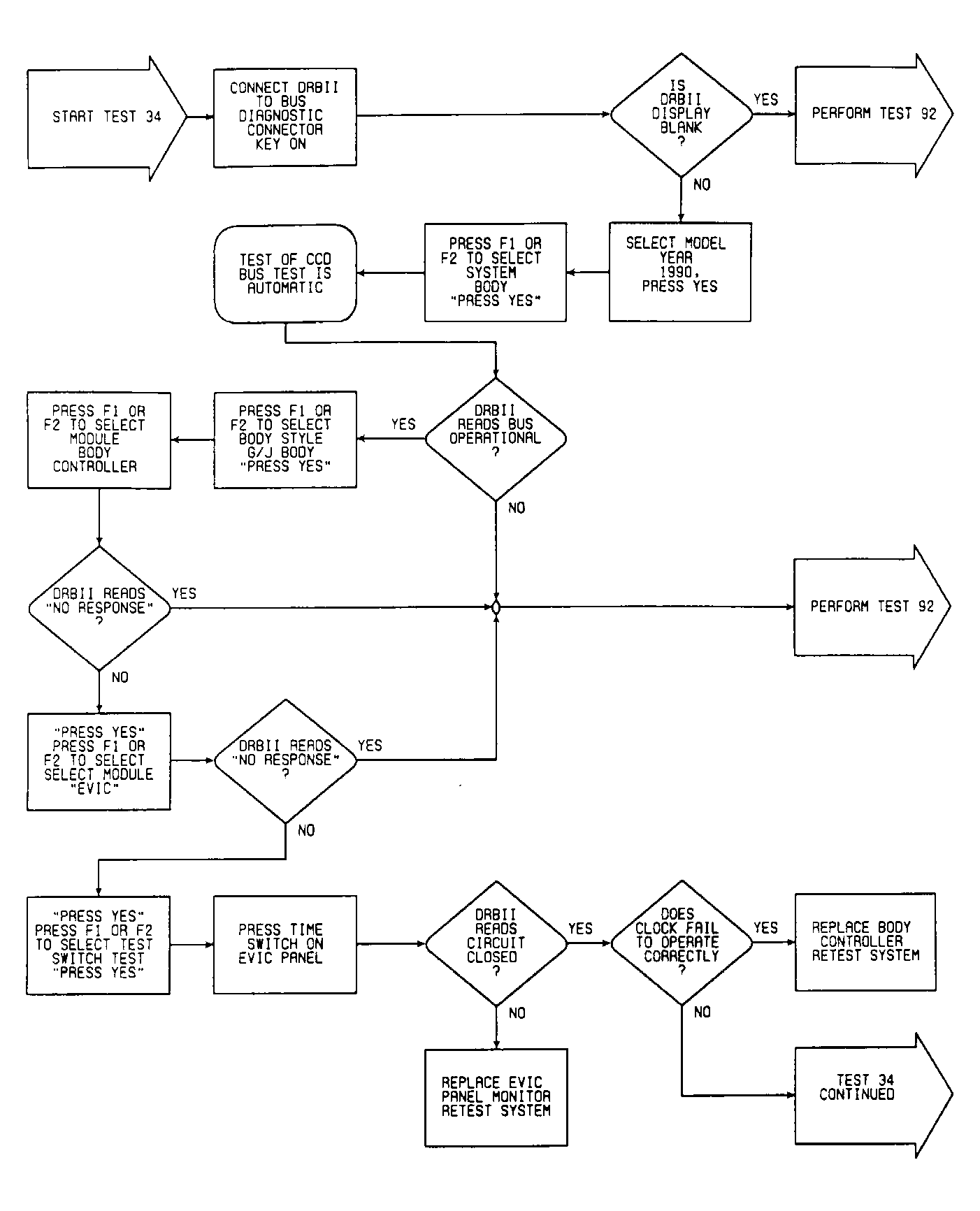

Fig 1: Test 34 Flow Chart (1 of 4)
G90H12481

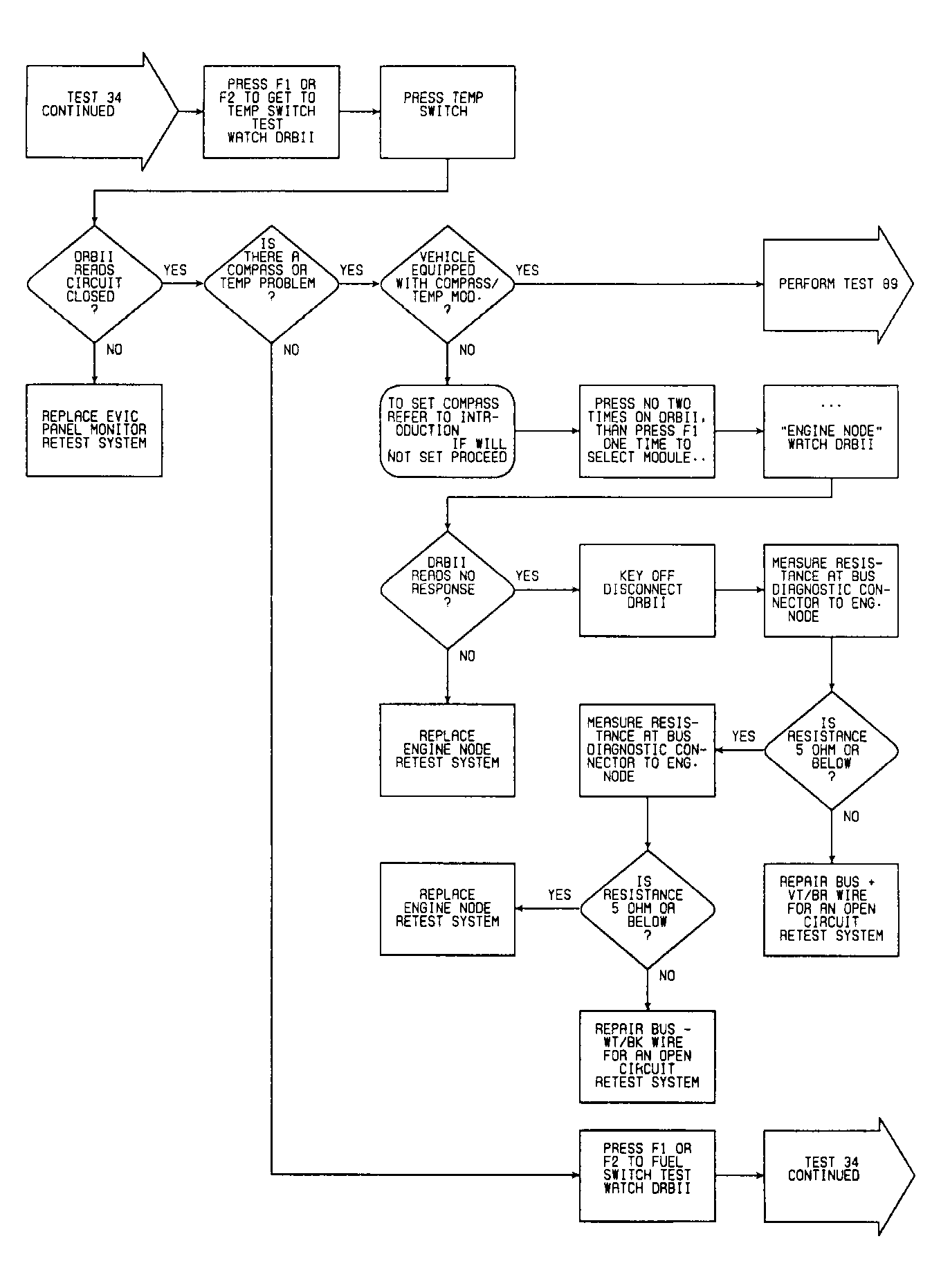

Fig 2: Test 34 Flow Chart (2 of 4)
G90I12482

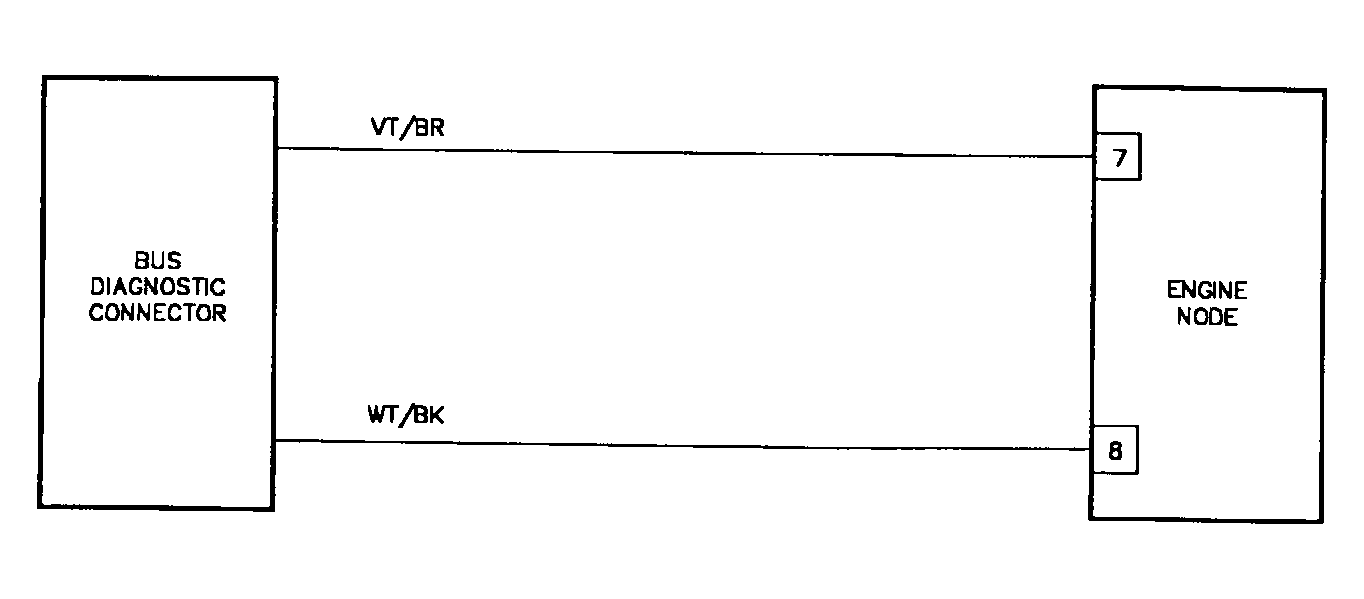

Fig 3: Test 34 Circuit Diagram (For 2 of 4)
G90F16449

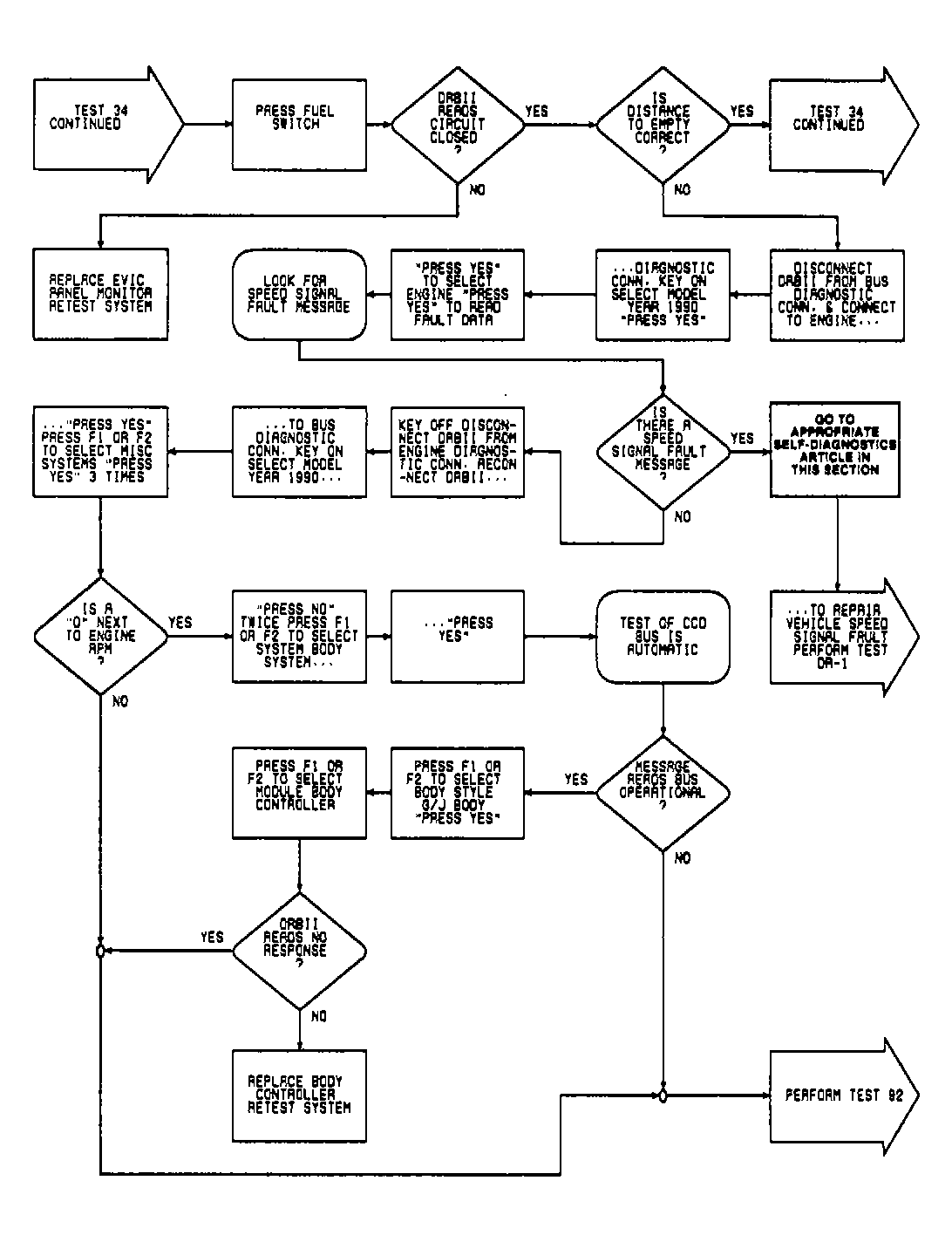

Fig 4: Test 34 Flow Chart (3 of 4)
G90J12483

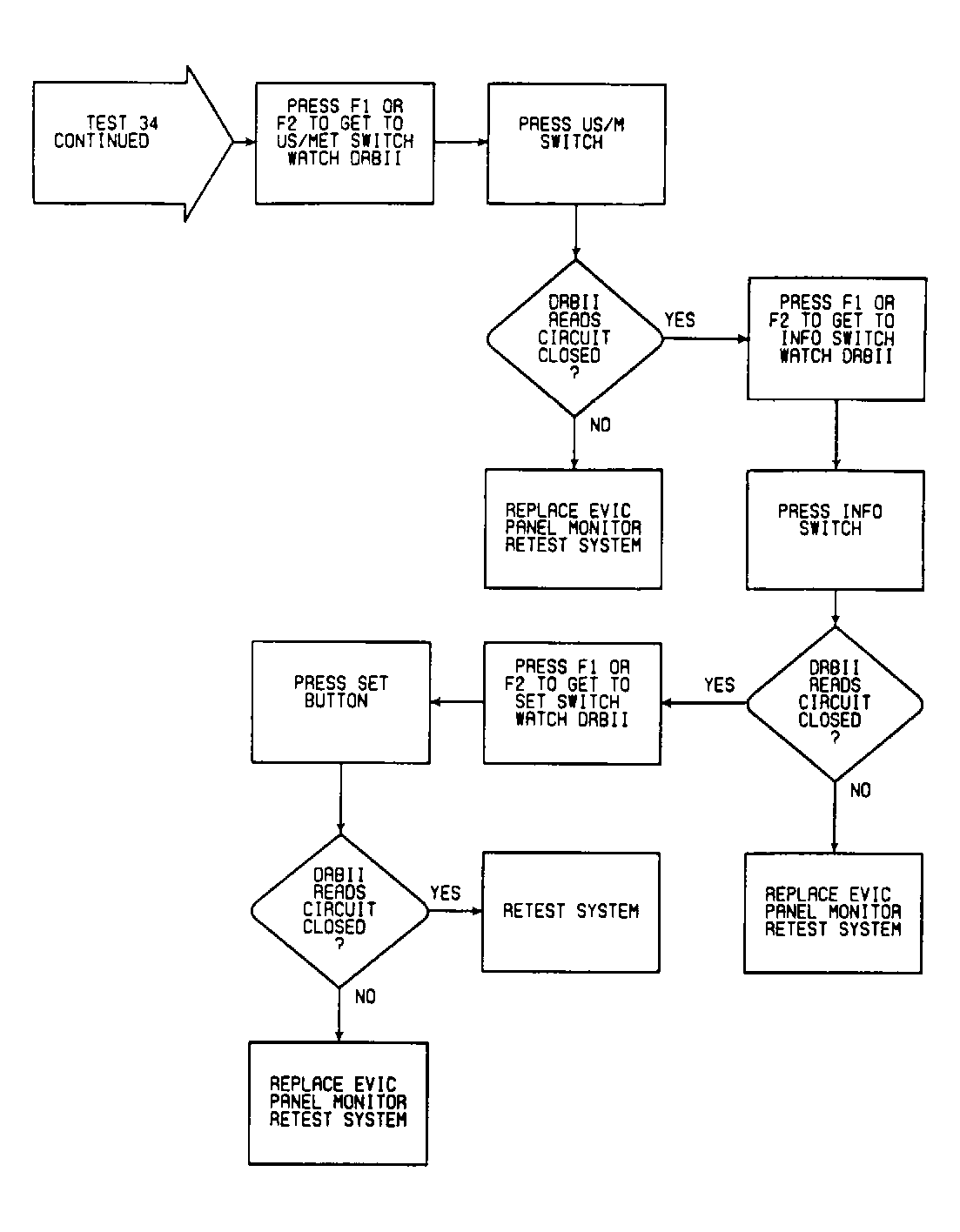

Fig 5: Test 34 Flow Chart (4 of 4)
G90A12484
