Test 2: Blank Message Screen On EVIC Panel

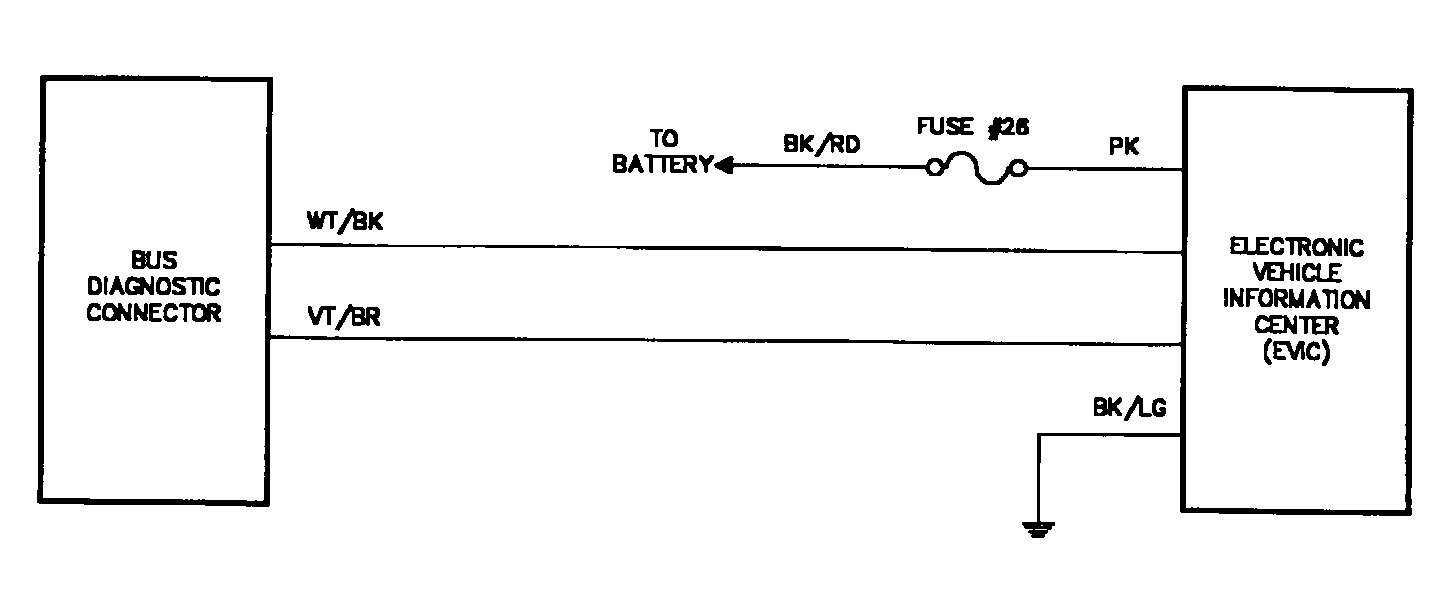

Fig 1: Test 2 Circuit Diagram

G90J16419

Fig 2: Test 2 Flow Chart (1 of 3)

G90G11557

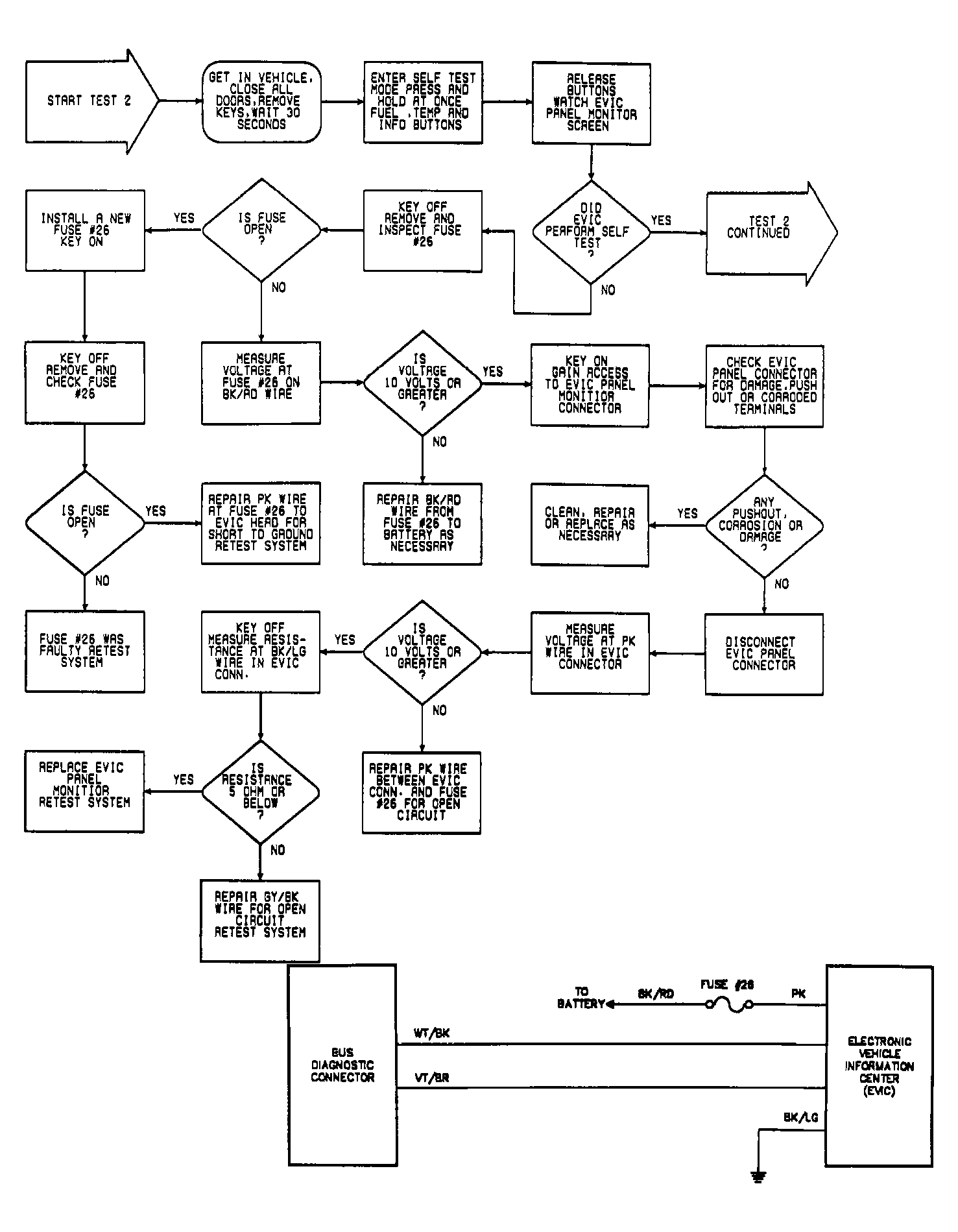

Fig 3: Test 2 Flow Chart (2 of 3)

G90H11558

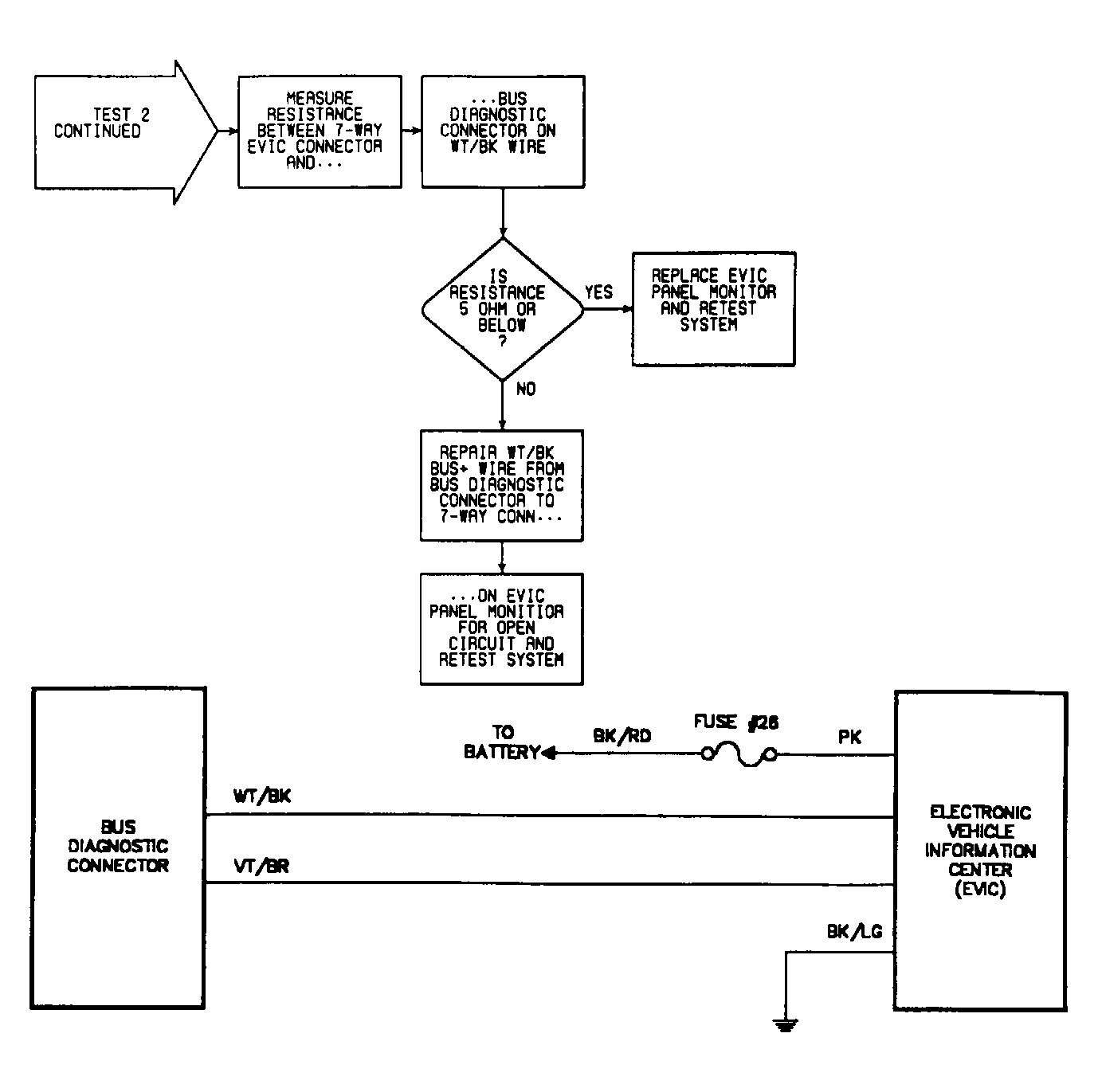

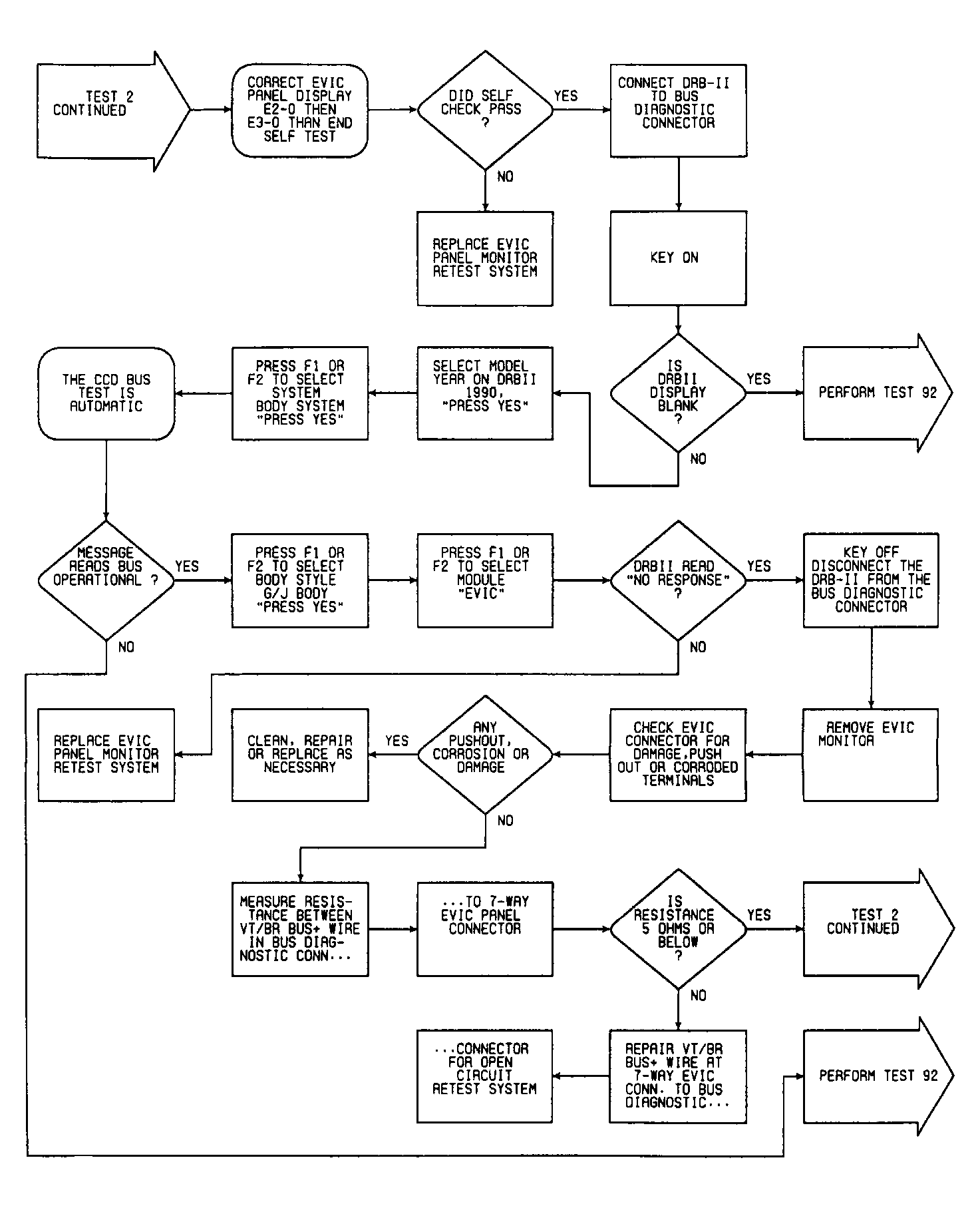

Fig 4: Test 2 Flow Chart (3 of 3)

G90I11559
