EVIC Panel Test 18: Low Fuel Level

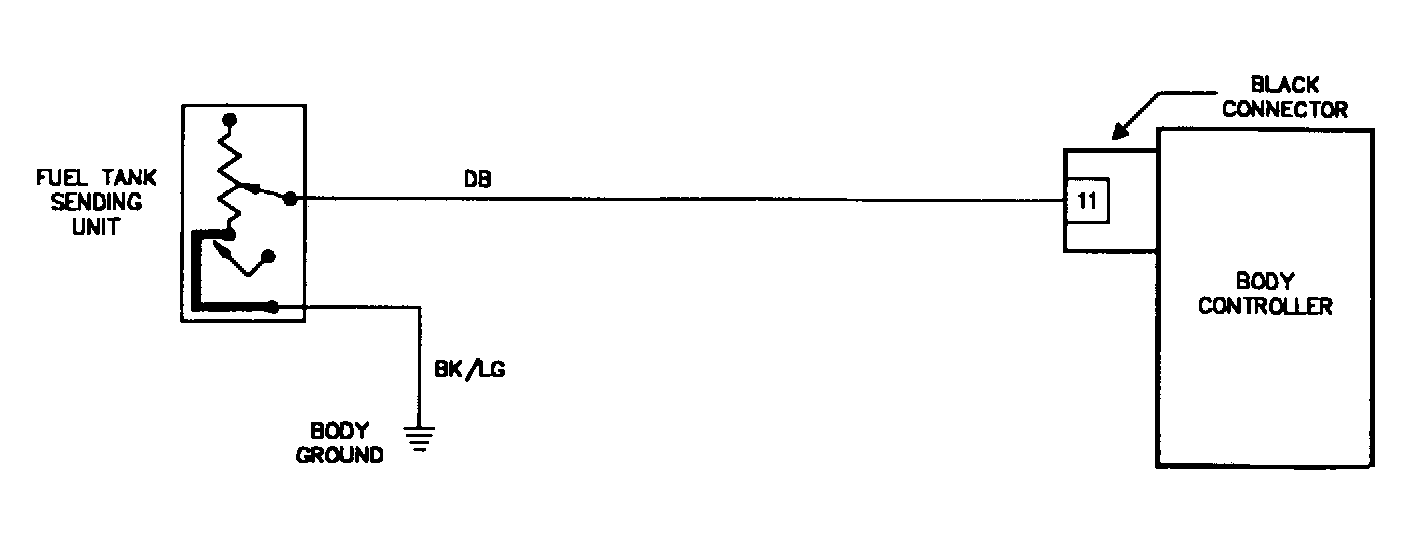

Fig 1: Test 18 Circuit Diagram

G90J16435

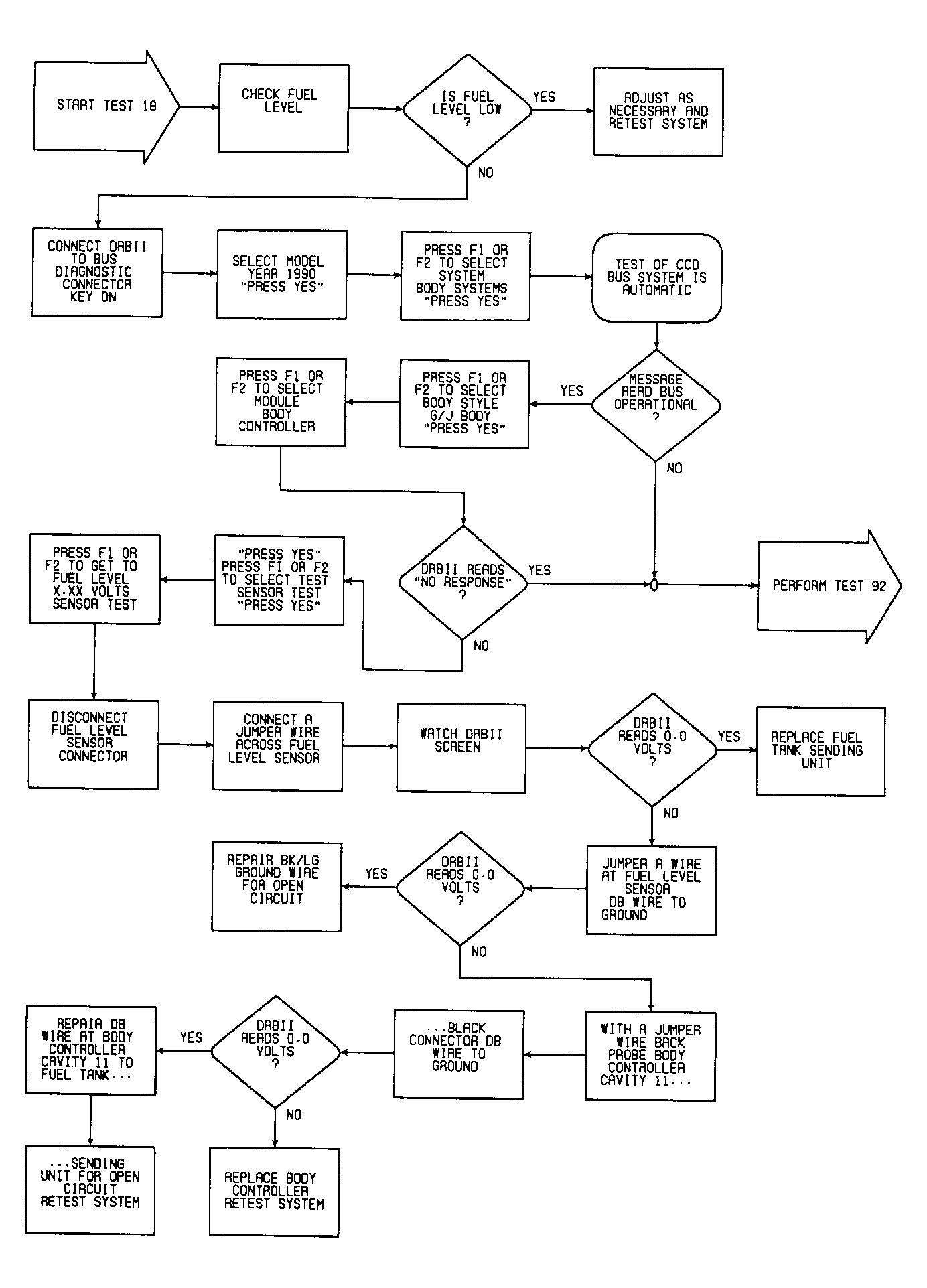

Fig 2: Test 18 FLow Chart

G90F12463
