CCD Bus SYS Test 99: Testing Bus SYS For No Response Message

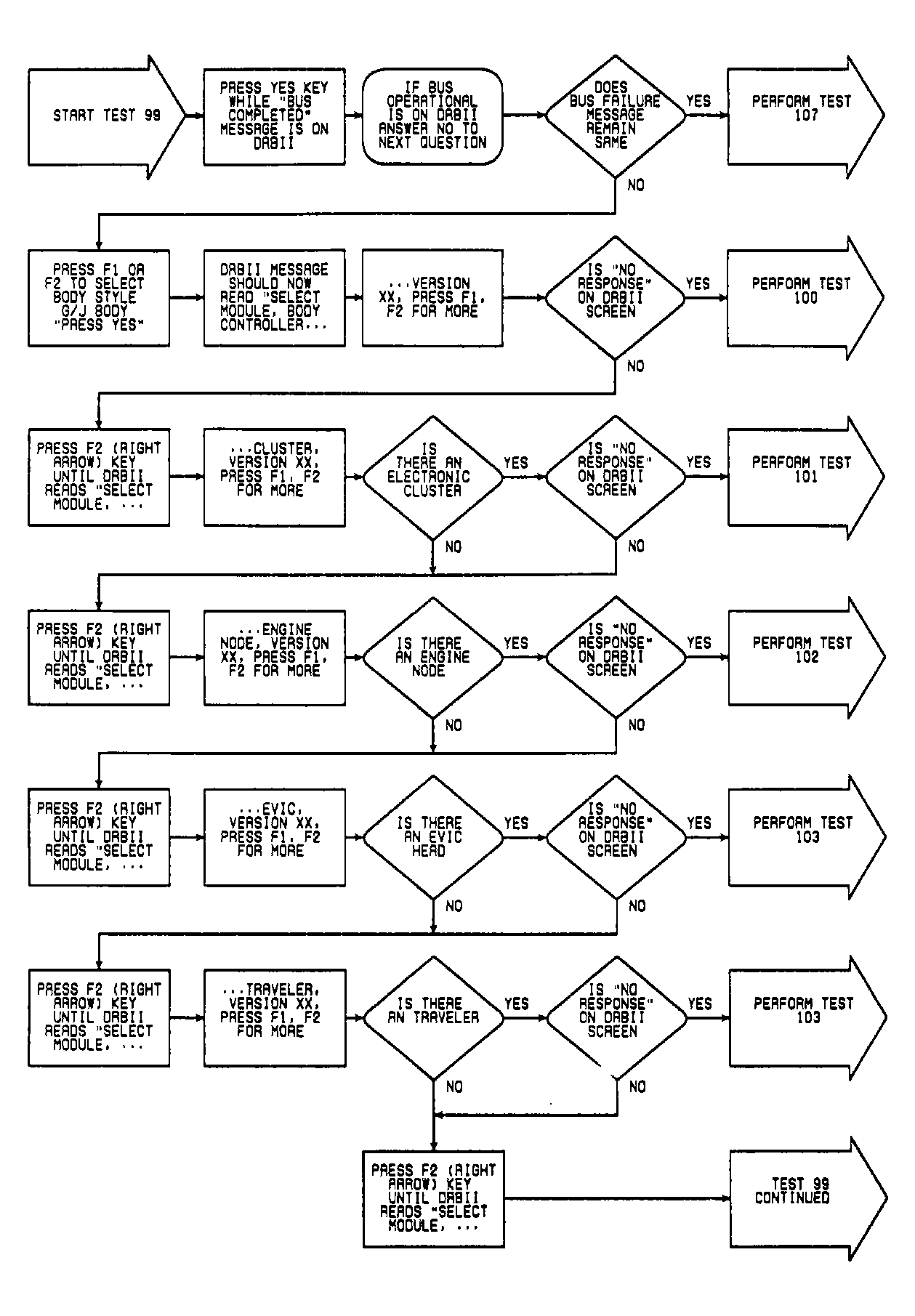

Fig 1: Test 99 Flow Chart (1 of 3)

G90E12587

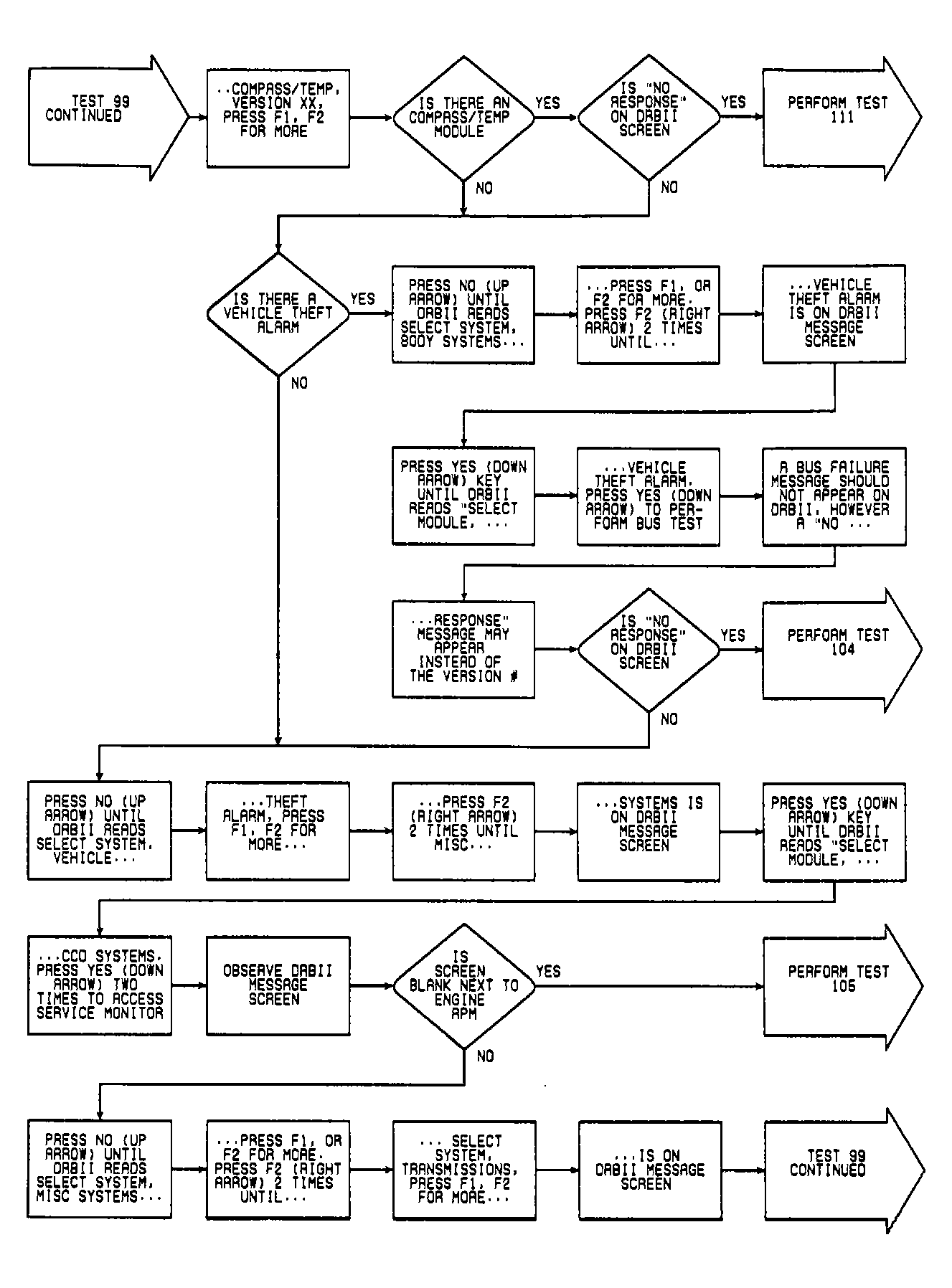

Fig 2: Test 99 Flow Chart (2 of 3)

G90F12588

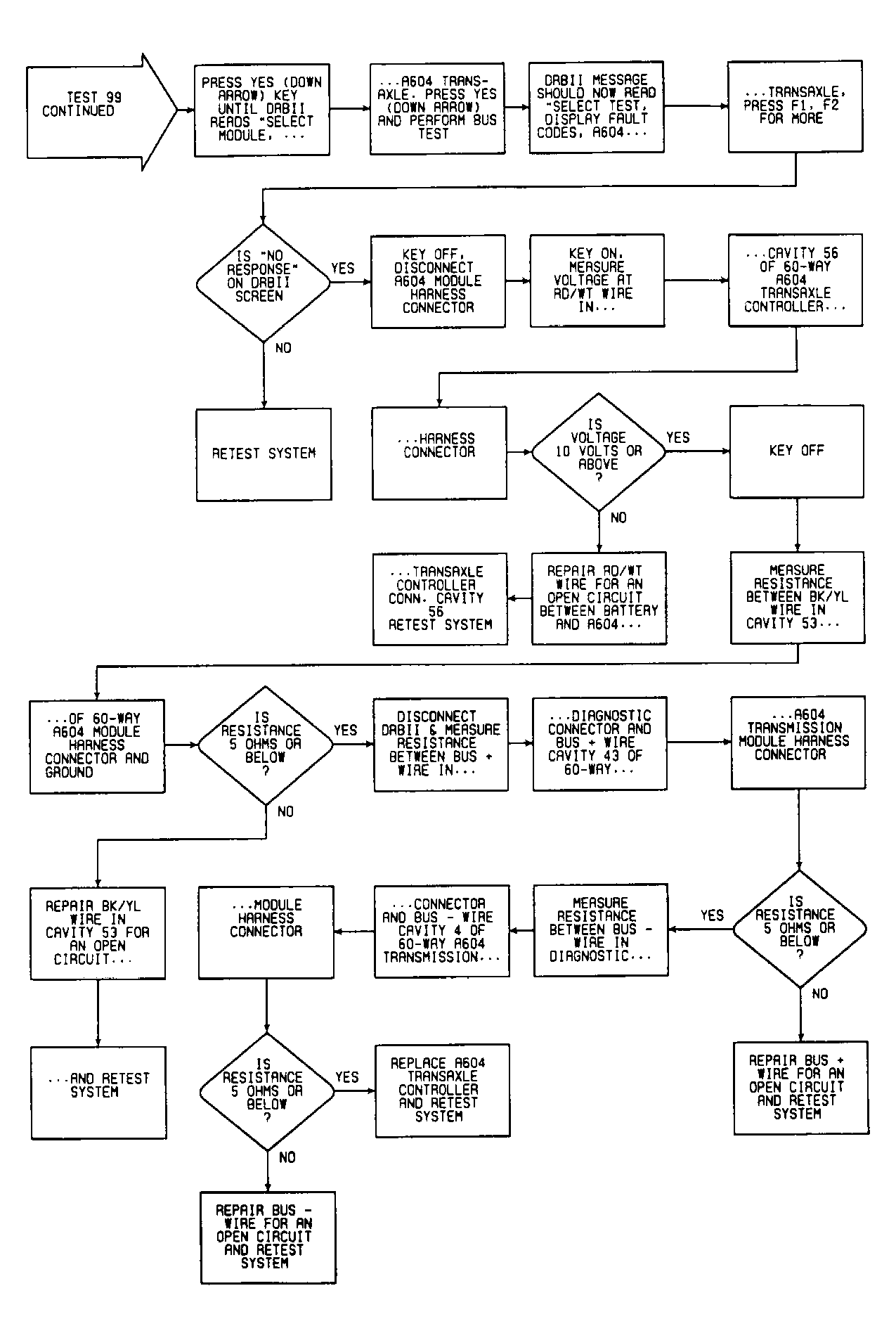

Fig 3: Test 99 Flow Chart (3 of 3)

G90G12589
