CCD Bus SYS Test 94: Check For CCD Bus Failure Messages Using DRB-II

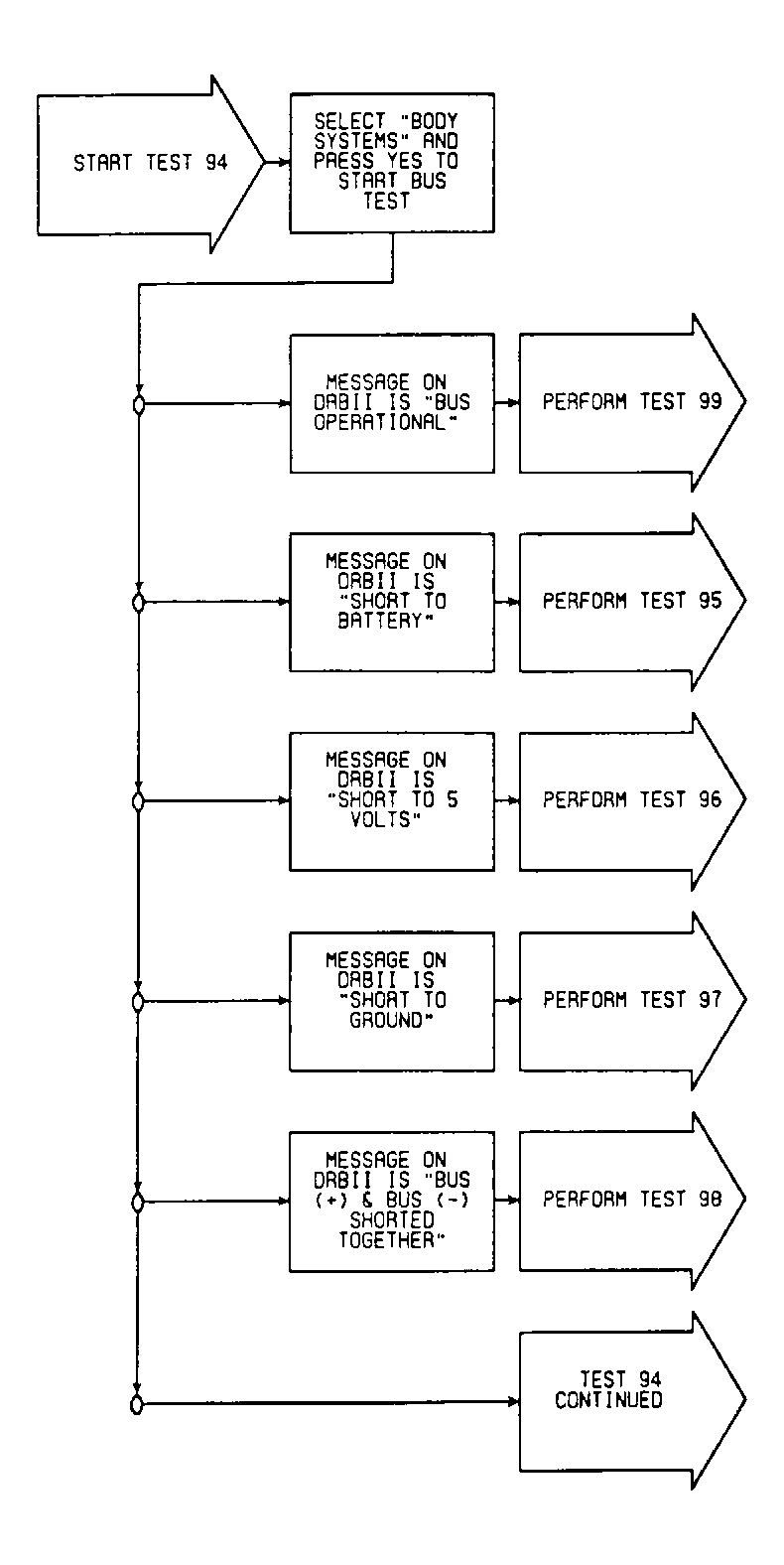

Fig 1: Test 94 Flow Chart (1 of 2)

G90I12573

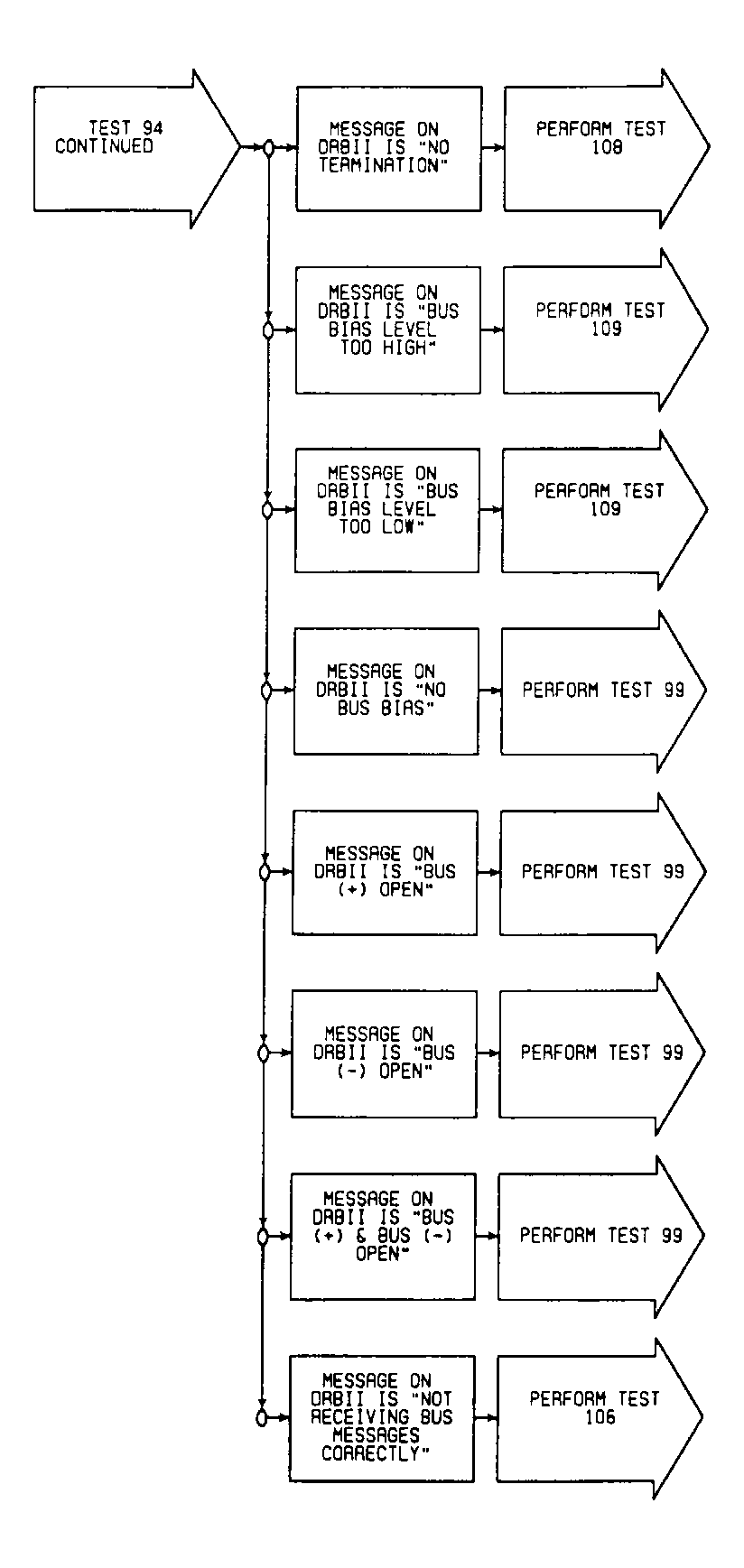

Fig 2: Test 94 Flow Chart (2 of 2)

G90J12574
