CCD Bus SYS Test 93: Repair DRB-II Failures

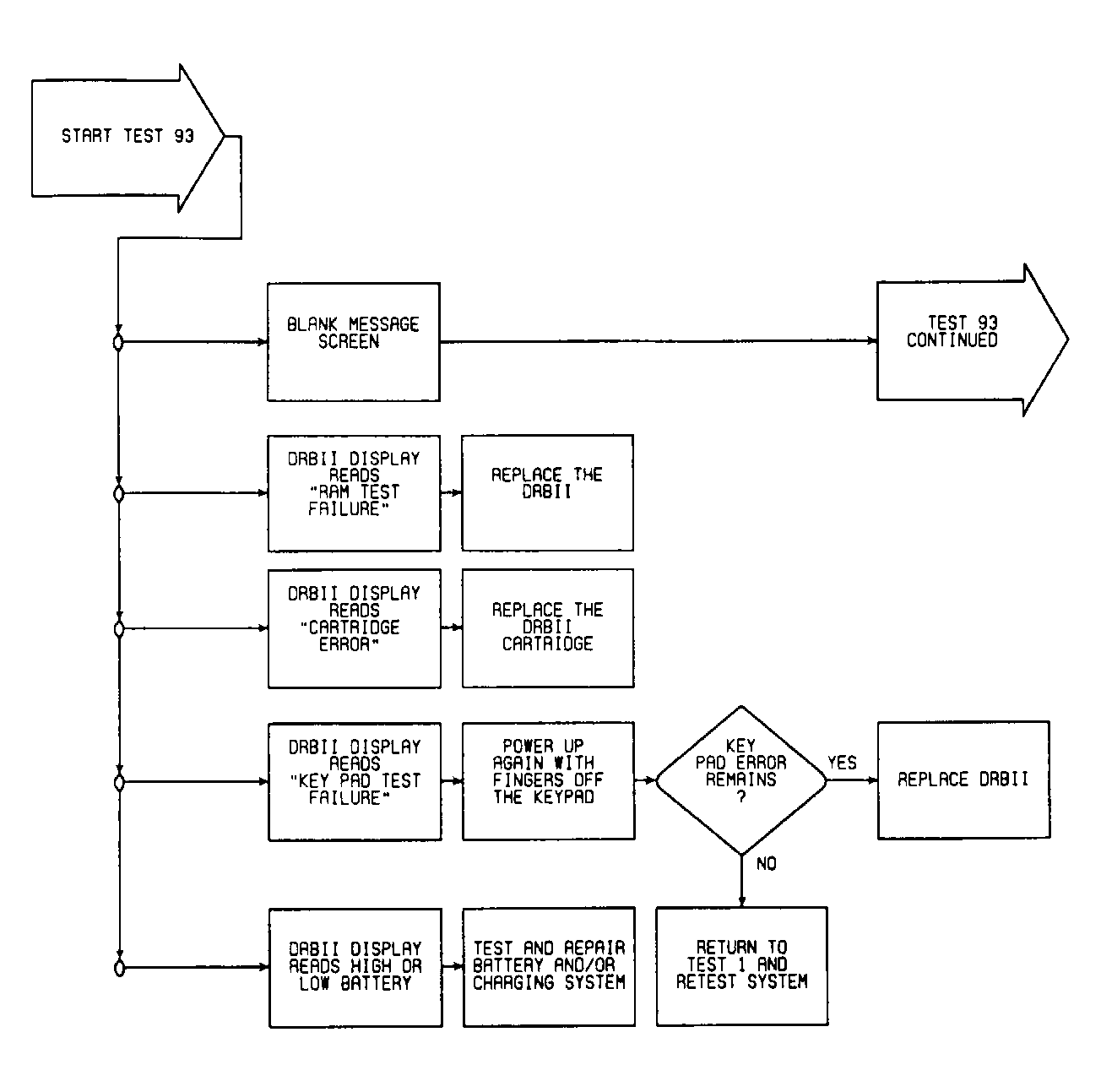

Fig 1: Test 93 Flow Chart (1 of 2)

G90G12571

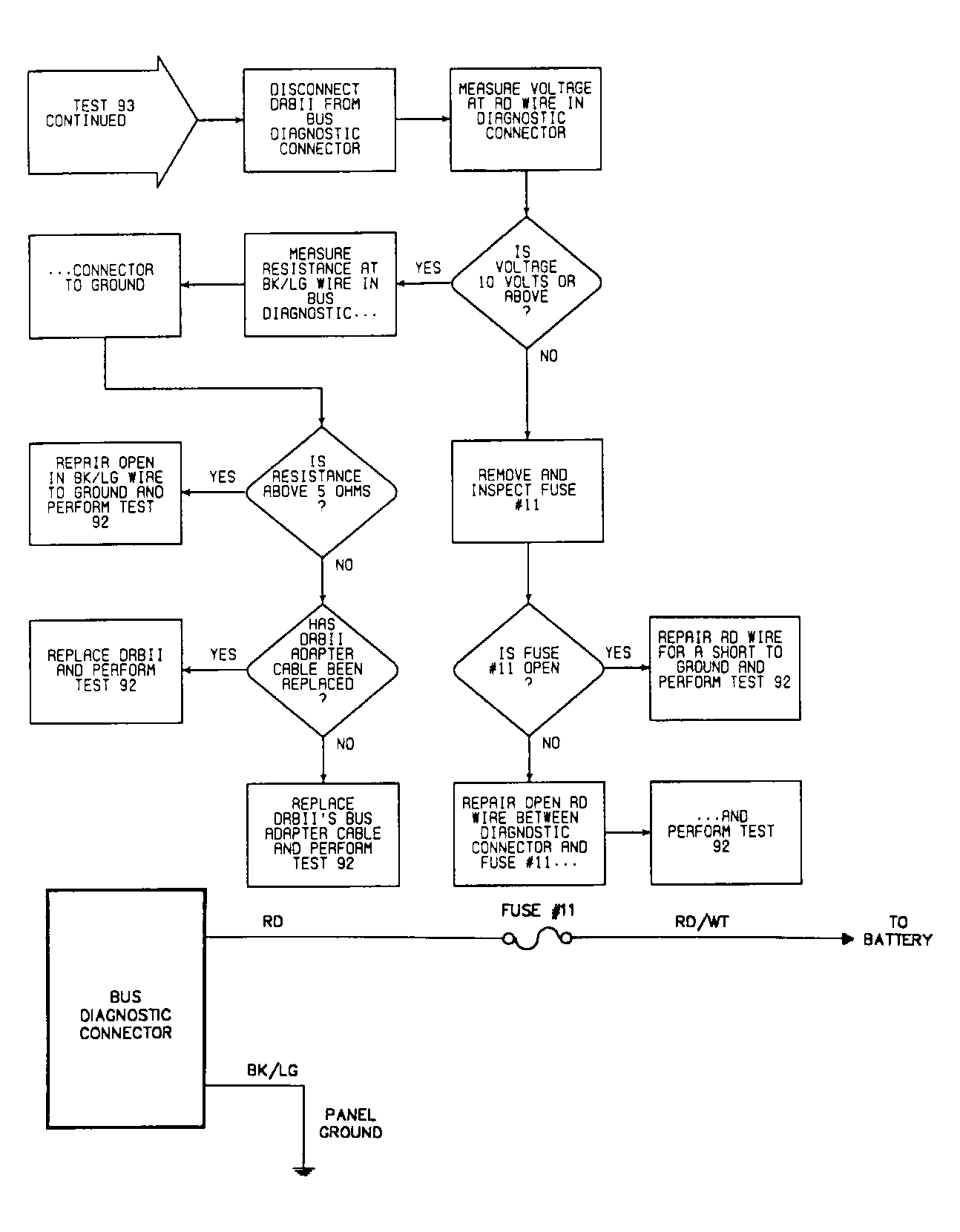

Fig 2: Test 93 Circuit Diagram & Flow Chart (2 of 2)

G90H12572
