CCD Bus SYS Test 111: No Response From Compass/Temp Module

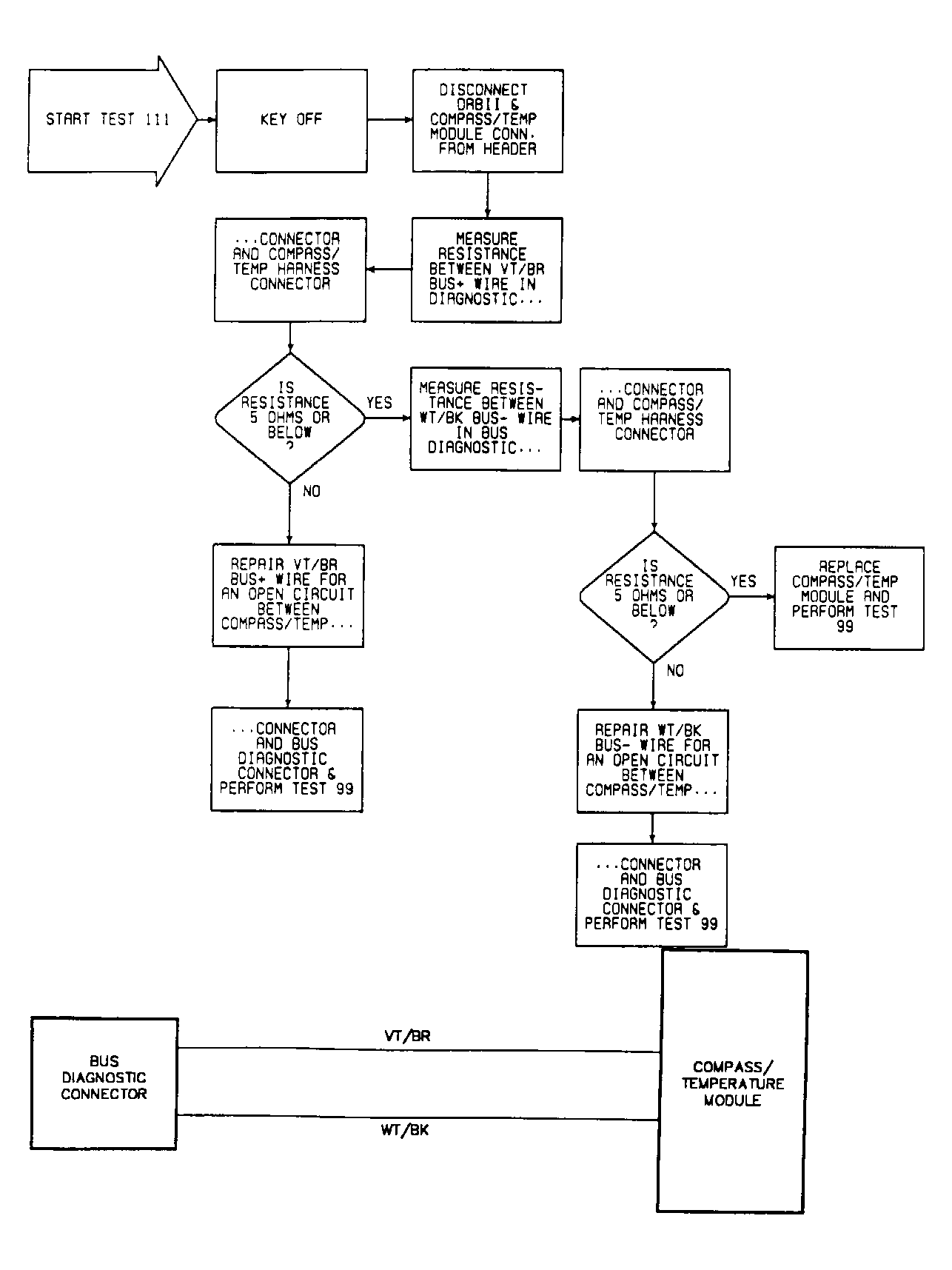

Fig 1: Test 111 Circuit Diagram & Flow Chart

G90G12605
