Engine Controls - Tests W/O Codes - BCC
>>
Test 126: Repairing Bus System For Bias Level Too High Or Too Low Message
Test 126: Repairing Bus System For Bias Level Too High Or Too Low Message

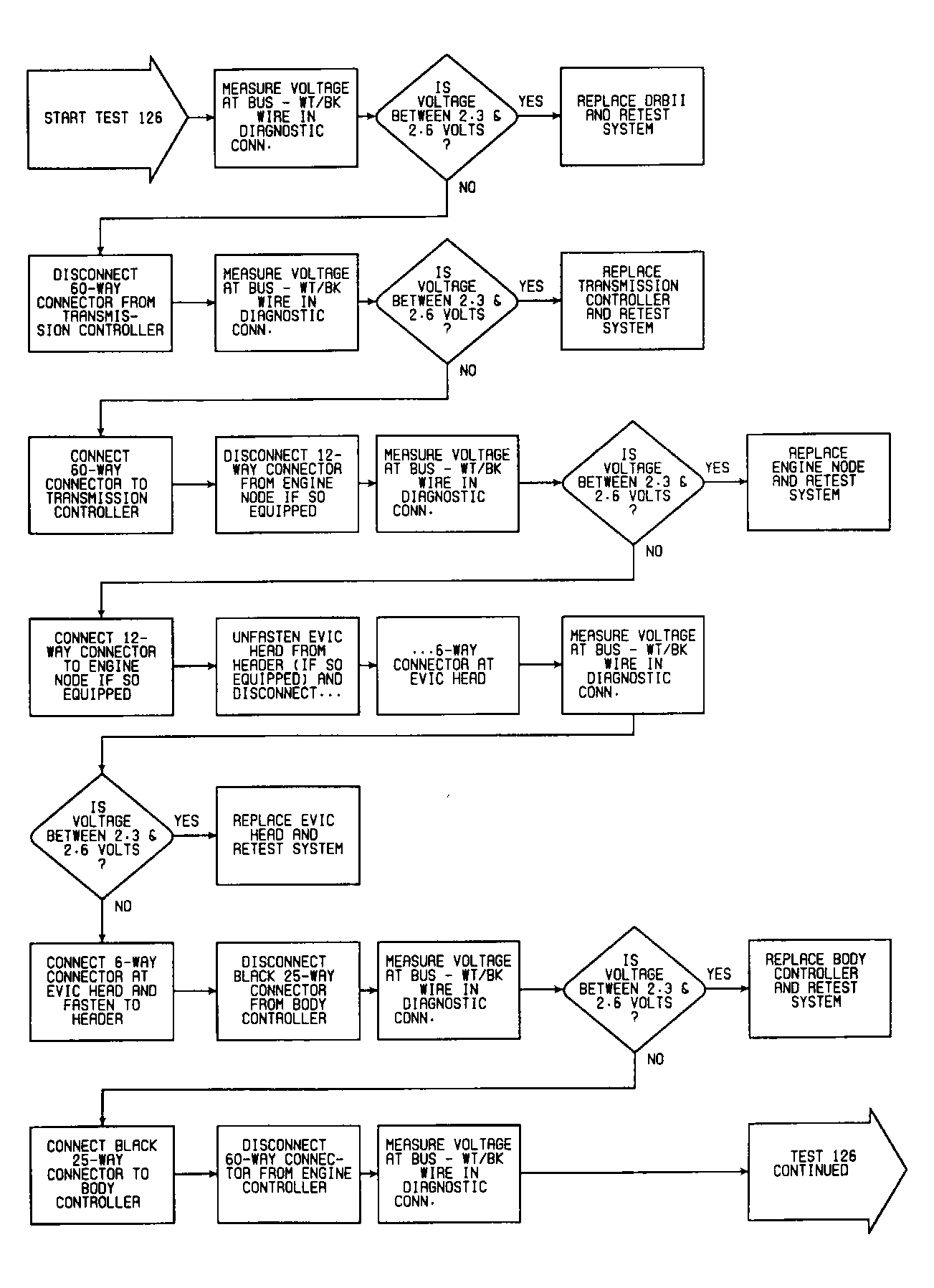

Fig 1: Test 126: Flow Chart (1 of 2)

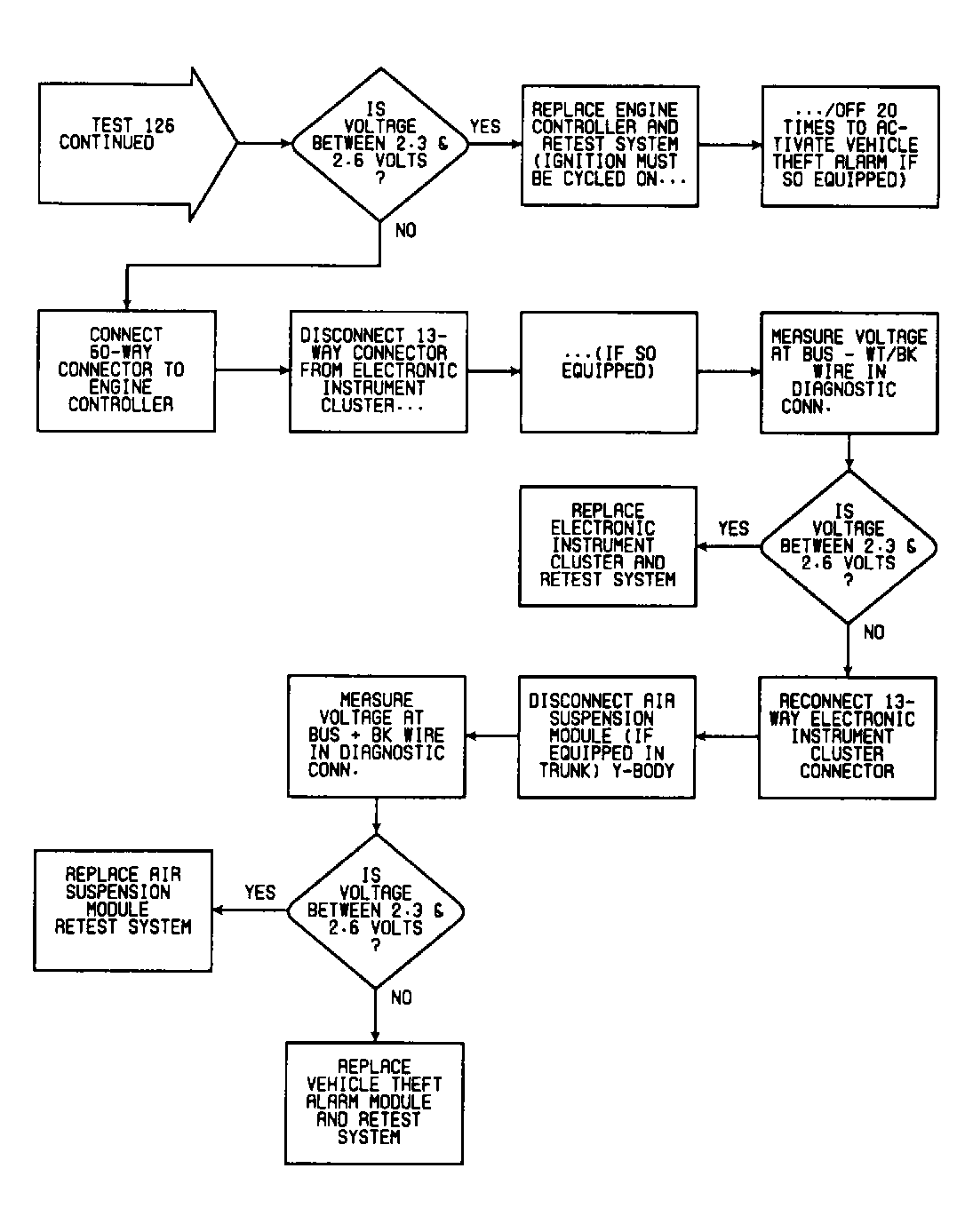

Fig 2: Test 126: Flow Chart (2 of 2)
