SP-VER: Speed Control Verification Check
SP-VER: Speed Control Verification Check

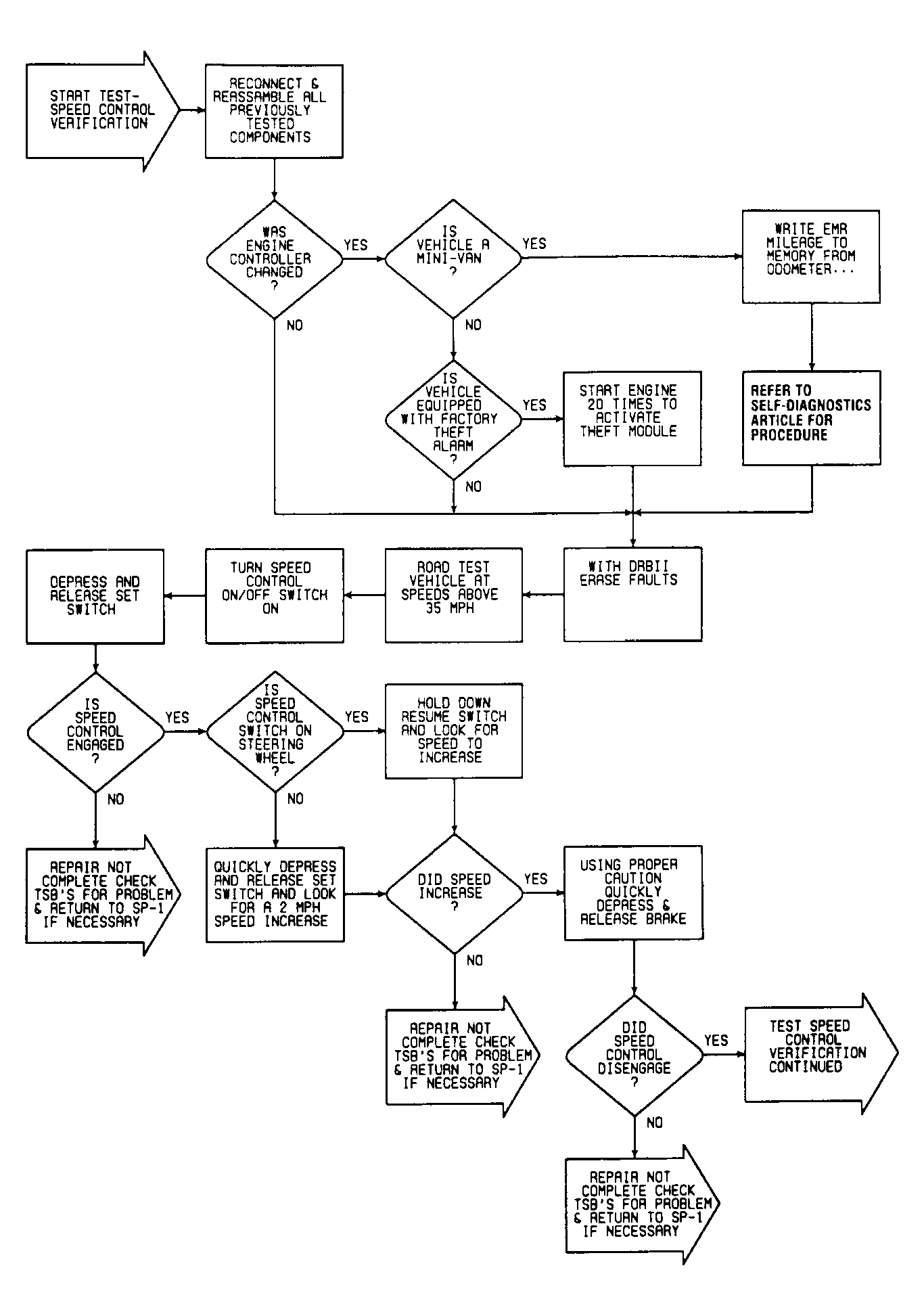

Fig 1: SP-VER Flow Chart (1 of 2)

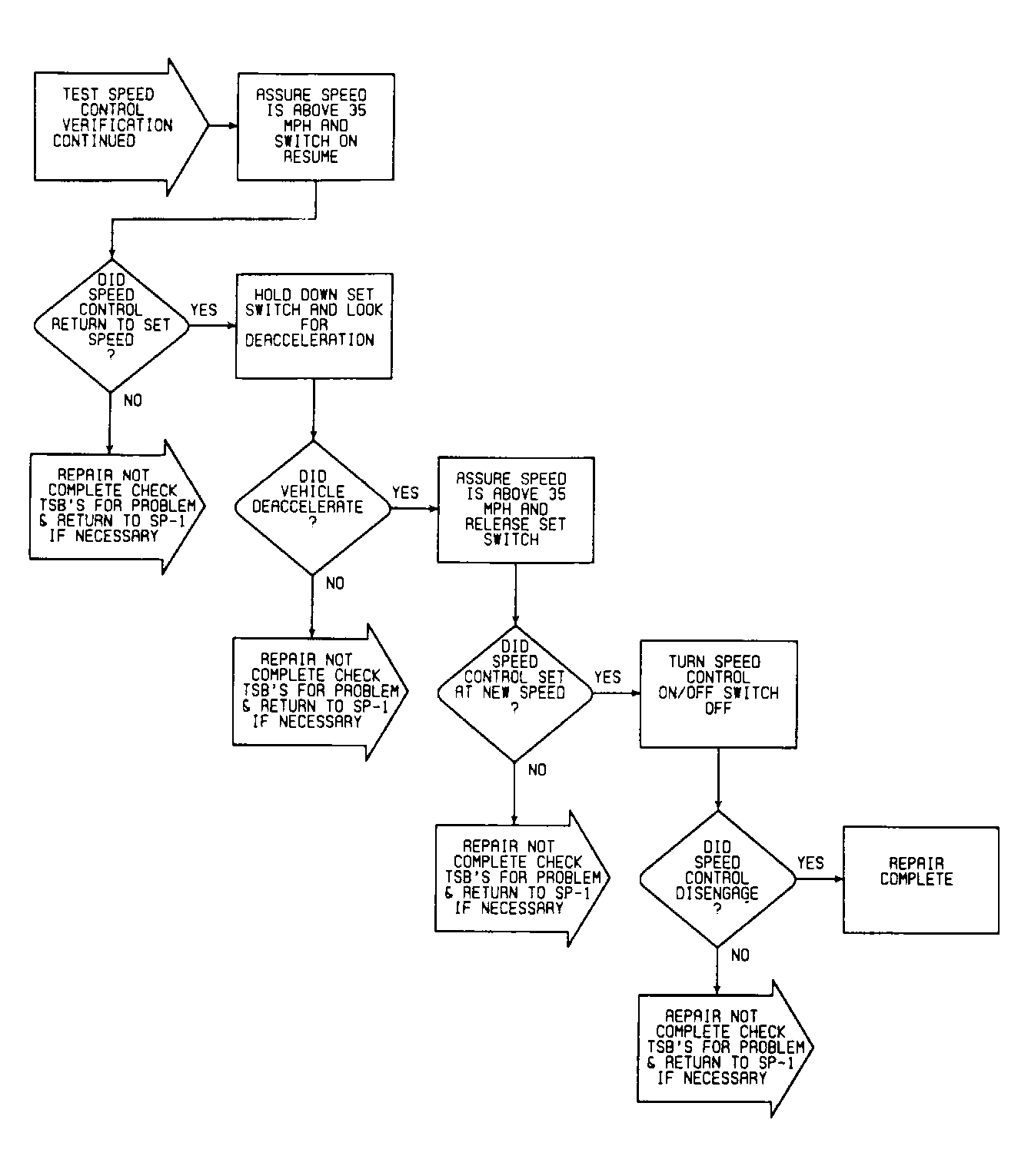

Fig 2: SP-VER Flow Chart (2 of 2)
