NS-9 - Checking Control Circuits To Distributor Pick-Up, Distributor Pick-Up & Engine Controller

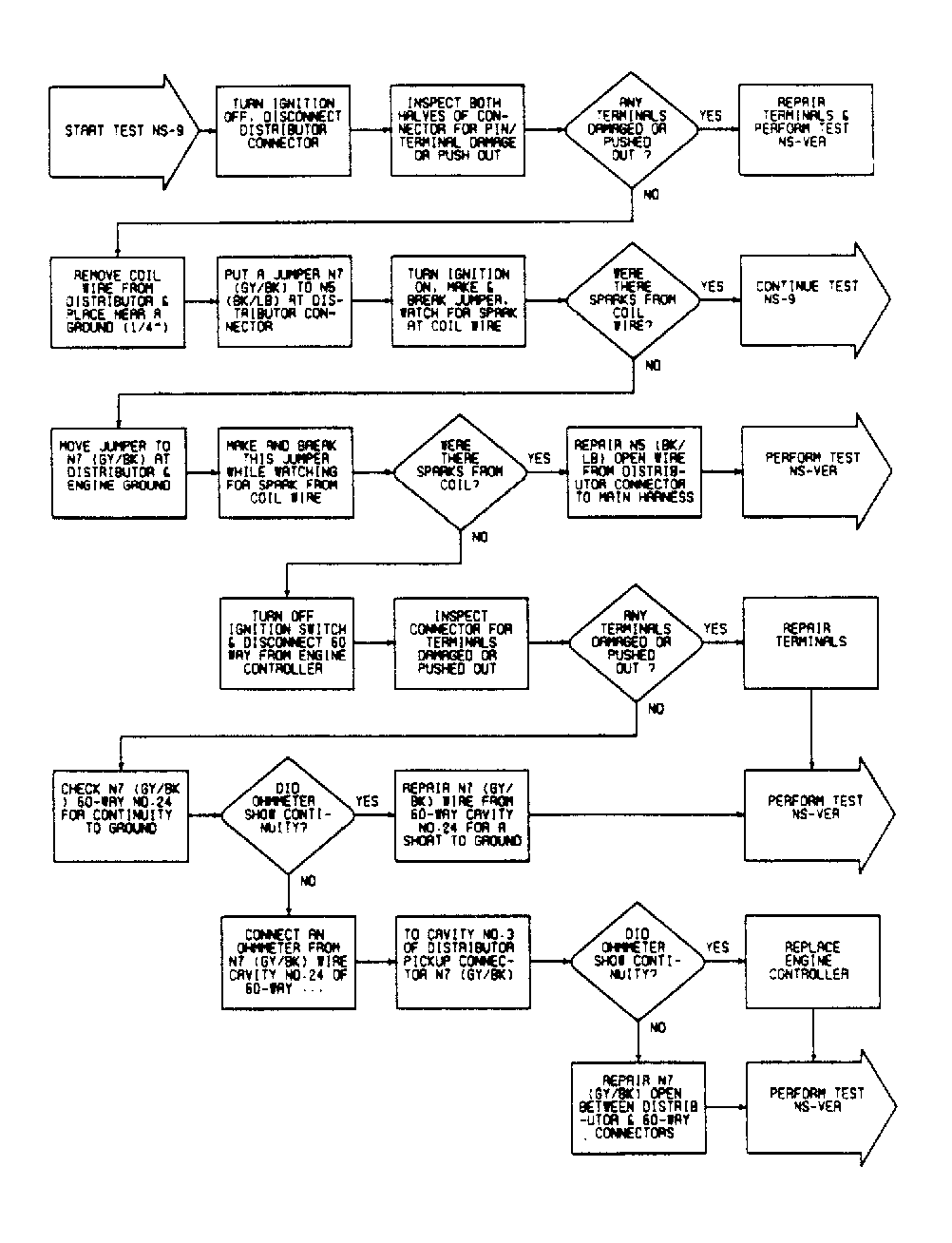

Fig 1: NS-9 - FC (1 of 2), Checking Control Circuits To Distributor Pick-Up, Distributor Pick-Up, & Engine Controller
G107492
Fig 2: NS-9 - View of Distributor Connector
G107493

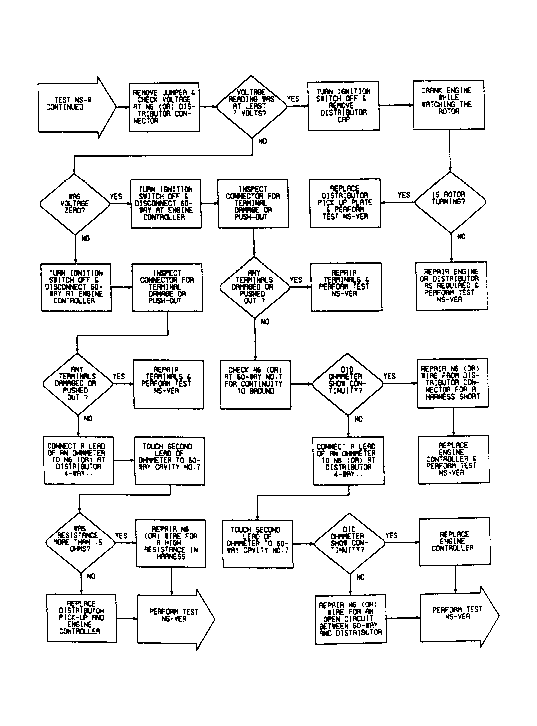

Fig 3: NS-9 - FC (2 of 2), Checking Control Circuits To Distributor Pick-Up, Distributor Pick-Up, & Engine Controller
G107494
