NS-8, Checking INJ. Interface Fault & Control Circuit

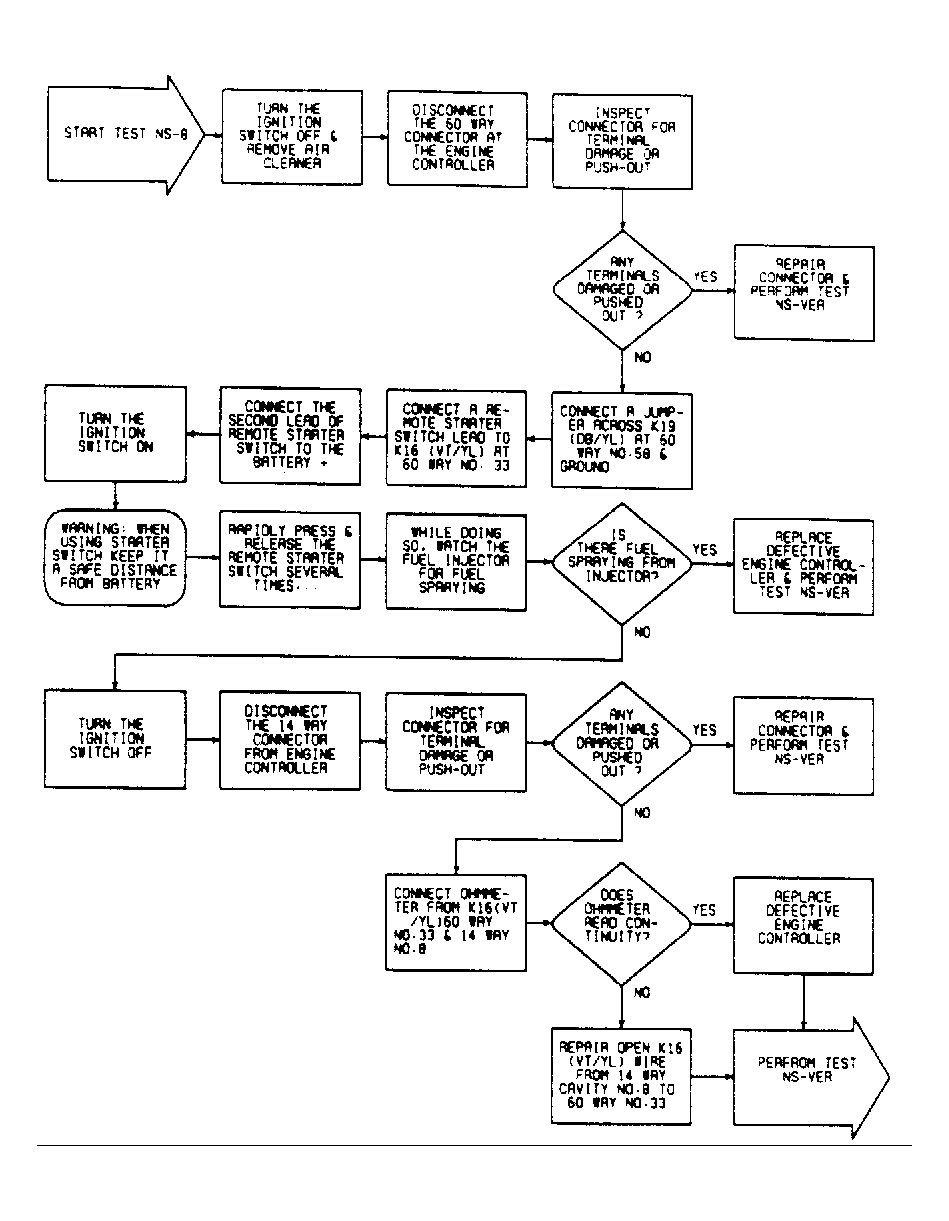

Fig 1: NS-8, Inj. Interface Fault & Control Circuit Check (1 of 2)

G108028

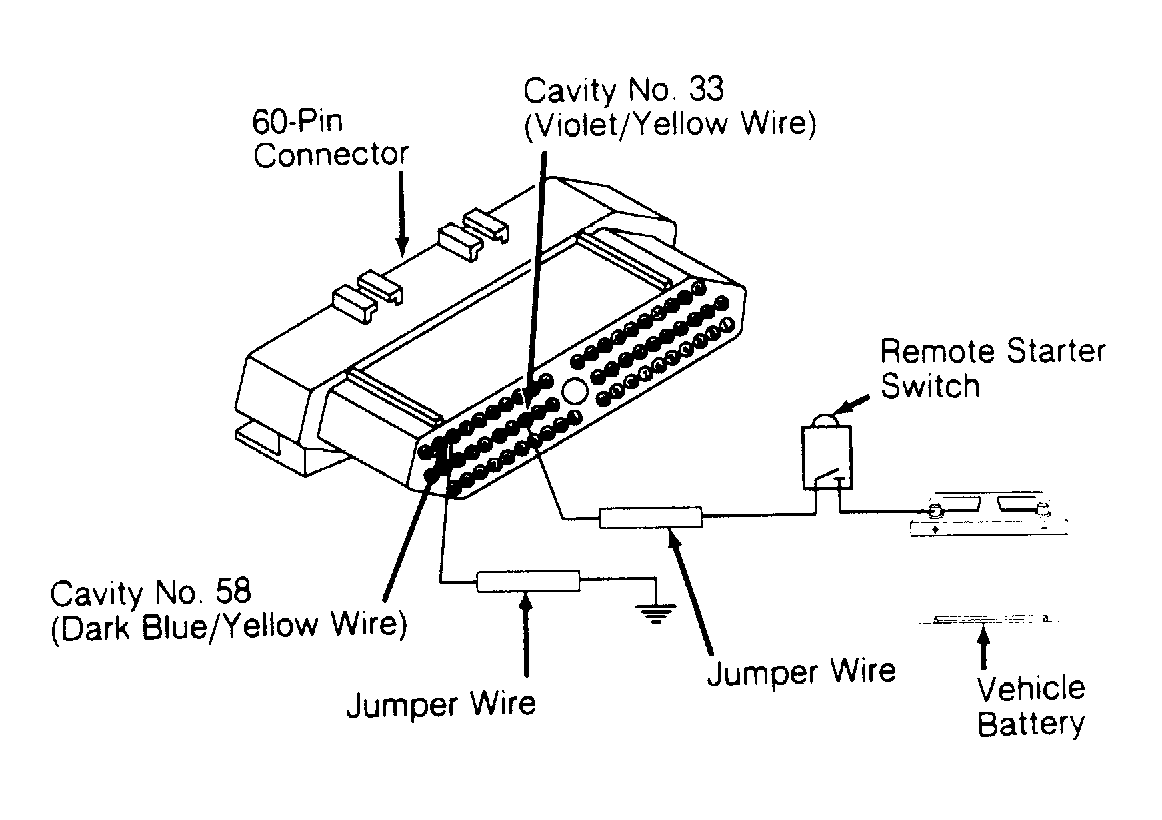

Fig 2: NS-8, Inj. Interface Fault & Control Circuit Check (2 of 2)

G108029
