Installation Procedure

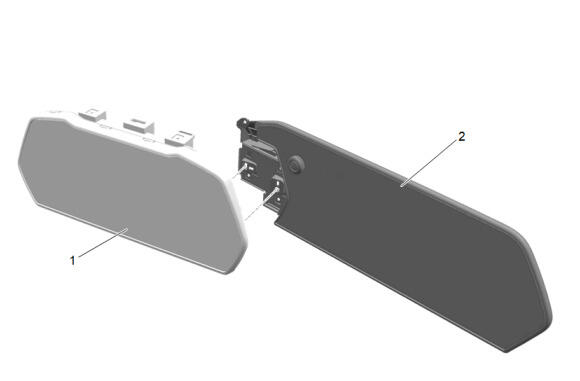

  1. GM6473007Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) @ Instrument Panel Cluster Control Module (1) - Install

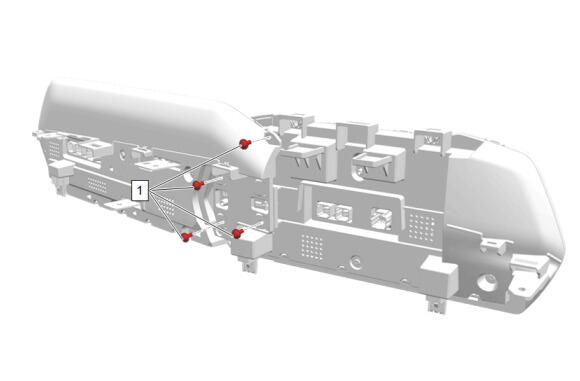

  2. GM6473006Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Driver Information Display Screw (1) - Install and tighten [4x] - Fastener Specifications

  3. GM6186012Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Driver Information Display (1) - Install
  5. GM6186011Courtesy of GENERAL MOTORS COMPANY

    Driver Information Display Bolt (1) - Install and tighten [5x] - Fastener Specifications

  6. GM5910816Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt Cover - Left Side (1) - Install

  7. GM5910819Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt Cover - Right Side (1) - Install

  8. GM5910807Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (2) - Install

  9. Instrument Panel Trim Plate Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications
  10. GM5910805Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install
