Installation Procedure

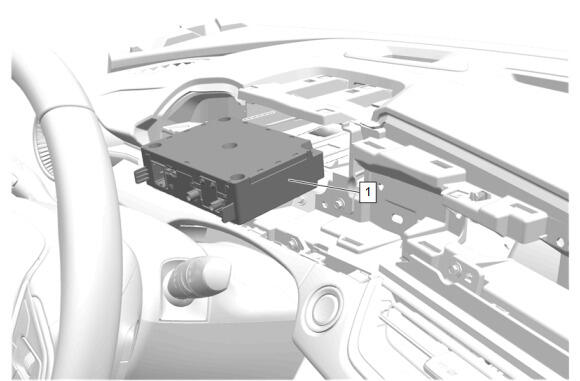

  1. GM5931275Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install

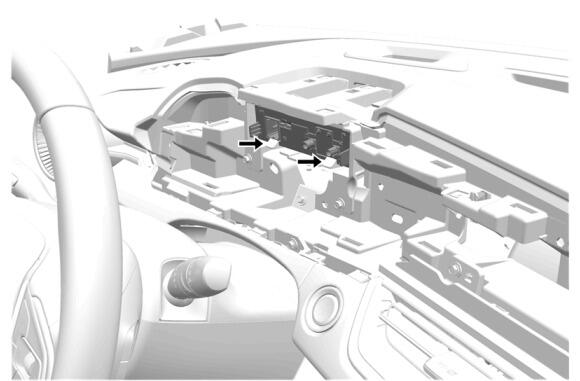

  2. GM5931274Courtesy of GENERAL MOTORS COMPANY

    Secure the retaining tabs.

  3. Connect the electrical connectors.

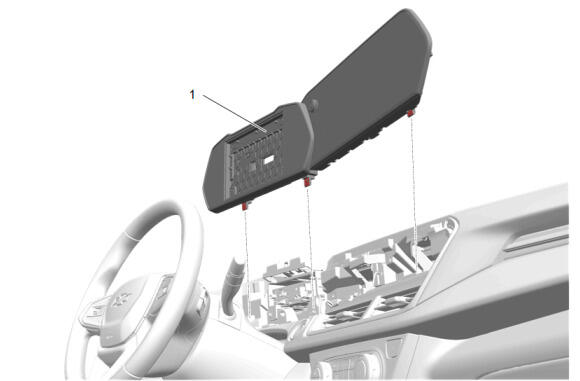

  4. GM6186012Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Driver Information Display (1) - Install

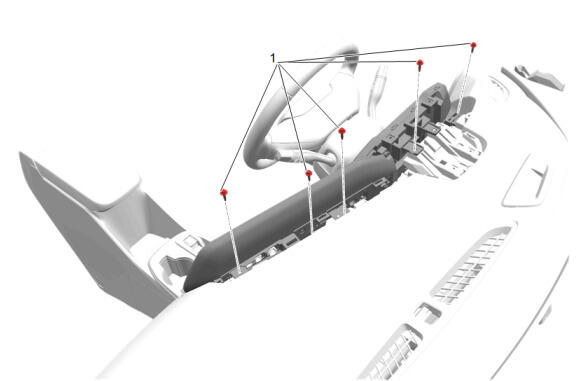

  6. GM6186011Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Driver Information Display Bolt (1) - Install and tighten [5x] - Fastener Specifications

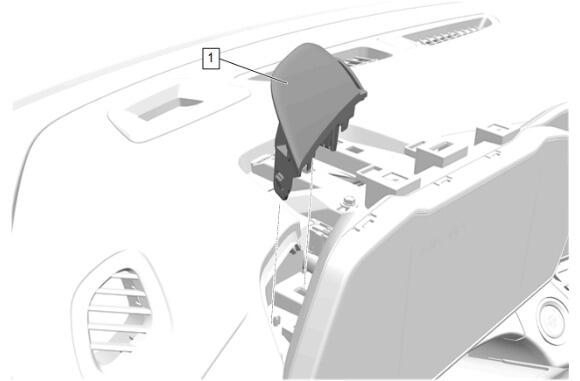

  7. GM5910816Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt Cover - Left Side (1) - Install

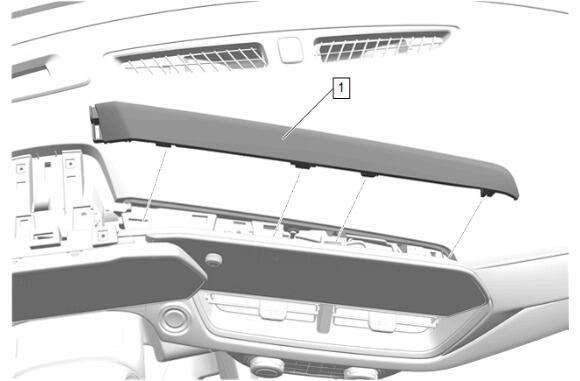

  8. GM5910819Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt Cover - Right Side (1) - Install

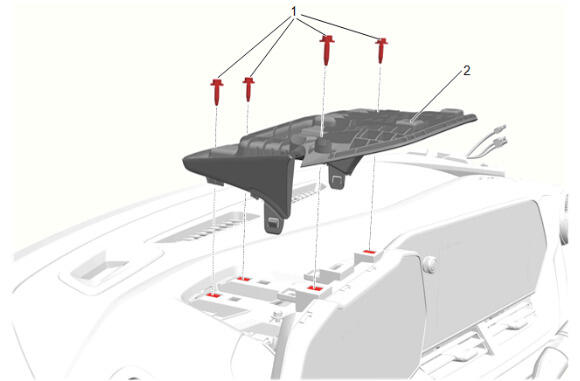

  9. GM5910807Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (2) - Install

  10. Instrument Panel Trim Plate Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications

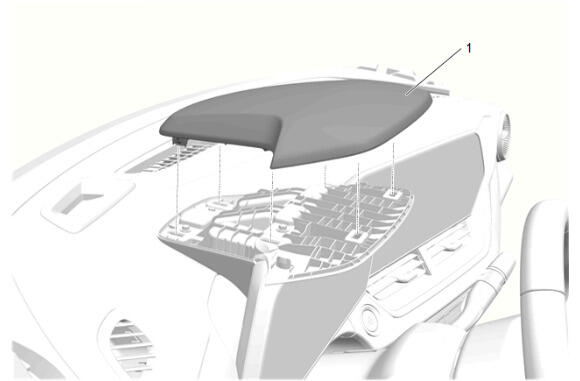

  11. GM5910805Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install

  12. Perform the necessary programming and setup procedure:Control Module References
