Installation Procedure

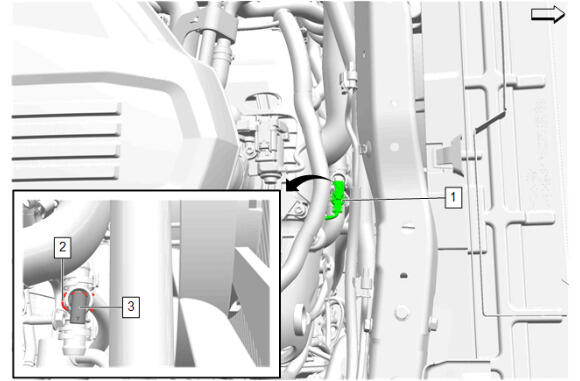

  1. GM6385969Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor (3) @ Engine Coolant Flow Control Valve - Install

  2. Retainer (2) - Install
  3. Electrical Connector (1) @ Engine Coolant Temperature Sensor - Connect
  4. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
  5. Start the engine and check for coolant leaks.
