Fastener Specifications
NOTE:

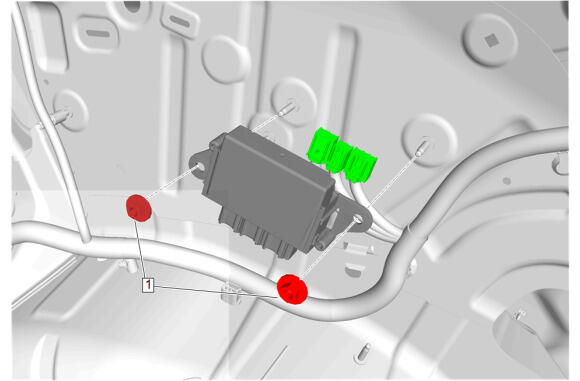

Callout items in the following chart represent components shown in graphic above.
Parking Assist Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Parking Assist Alarm Control Module Nut [2x] | - | - | 4.5 N.m (40 lb in) | Parking Assist Control Module Replacement |
