Installation Procedure

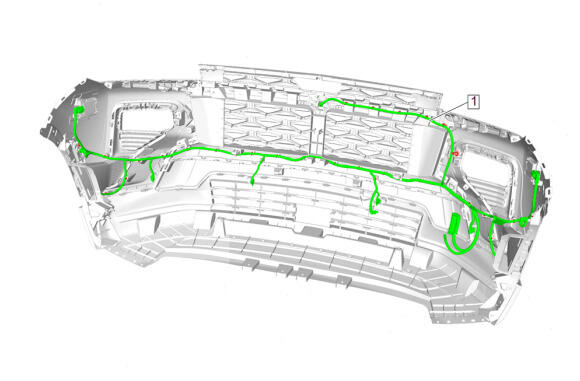

  1. GM6398055Courtesy of GENERAL MOTORS COMPANY

    Front Object Alarm Sensor Wiring Harness (1) - Install

  2. Connect all electrical connectors.

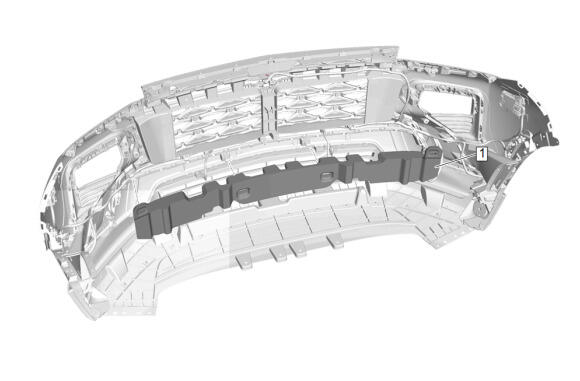

  3. GM6397880Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Energy Absorber (1) - Install

  4. GM6398048Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)
