Removal Procedure

  1. GM6398052Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation

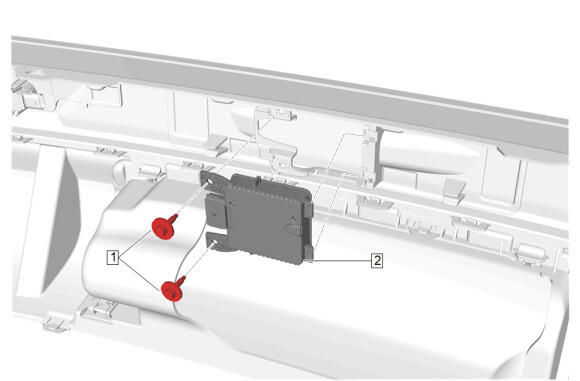

  2. GM6397966Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Short Range Radar Sensor Bolt (1) - Remove [2x]
    4. NOTE:

    Observe the mounting a location of the rear short range radar sensor to ensure proper reinstallation.

  4. Short Range Radar Rear Sensor (2) - Remove
