Installation Procedure

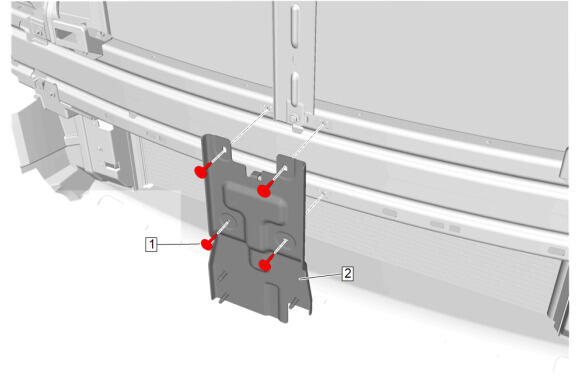

  1. GM6397877Courtesy of GENERAL MOTORS COMPANY

    Forward Range Radar Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Forward Range Radar Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. GM6397878Courtesy of GENERAL MOTORS COMPANY

    Forward Range Radar Sensor (2) - Install

  4. Forward Range Radar Sensor Nut (1) - Install and tighten [3x] - Fastener Specifications
  5. Connect the electrical connector.
  6. GM6398048Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (Z71)

  7. Relearn the forward range radar sensor. Radar Sensor Module - Long Range Learn
