Installation Procedure

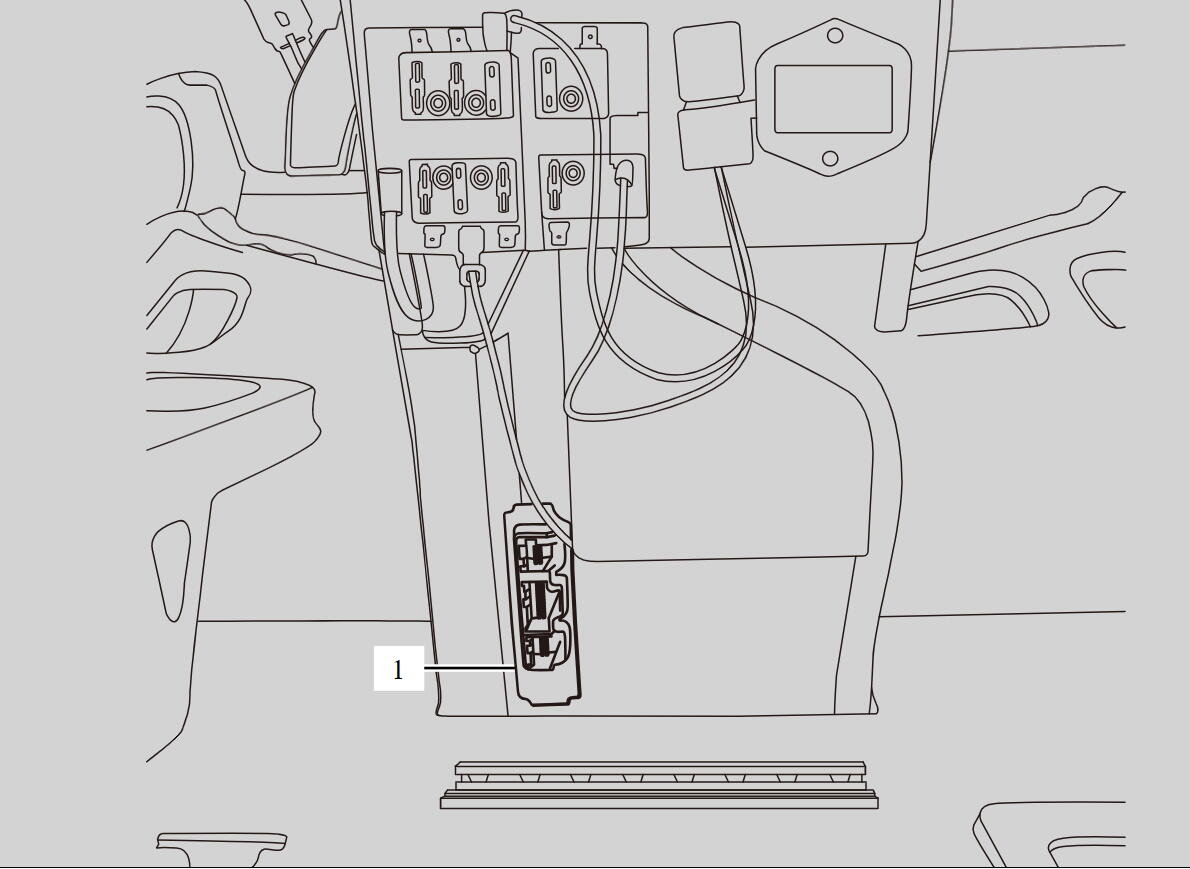

GM6886269Courtesy of GENERAL MOTORS COMPANY
  1. Special Purpose Vehicle Control Module (1) = Install
  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.
  4. Front Floor Console = Install - FRONT FLOOR CONSOLE REMOVAL AND INSTALLATION
  5. Perform the necessary programming and setup procedure: Control Module References
