Installation Procedure

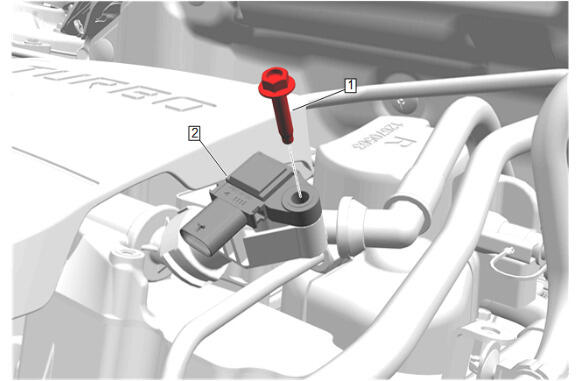

  1. GM6205677Courtesy of GENERAL MOTORS COMPANY

    Crankcase Pressure Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Crankcase Pressure Sensor Bolt (1) - Install and tighten to 8.5 N.m (75 lb in)
  3. Connect the electrical connector.
