Installation Procedure
Vehicle Stability Control System Switch (1) - Install
- Ensure that the retaining tabs are fully secured.
Connect the electrical connectors.
- Instrument Panel Outer Air Outlet - Left Side (1) - Install
- CAUTION:
Refer to Fastener Caution .
Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications
Instrument Panel Center Trim Pad - Left Side (1) - Install
Instrument Panel Trim Pad - Left Side (1) - Install
Instrument Panel Outer Trim Cover - Left Side (1) - Install
Instrument Panel Lower Trim Panel Outer Filler (1) - Install
Connect the electrical connectors.
- Radio Control (1) - Install
Radio Control Bolt (1) - Install and tighten [6x] - Fastener Specifications
Instrument Panel Trim Plate Applique - Right Side (1) - Install
Instrument Panel Trim Plate Applique Bolt (1) - Install and tighten [8x] - Fastener Specifications
Connect the electrical connectors.
- Instrument Panel Center Trim Pad - Right Side (1) - Install
Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Instrument Panel Fuse Block Access Hole Cover - Right Side (1) - Install
Connect the electrical connectors.
- Instrument Panel Cluster Control Module (1) - Install

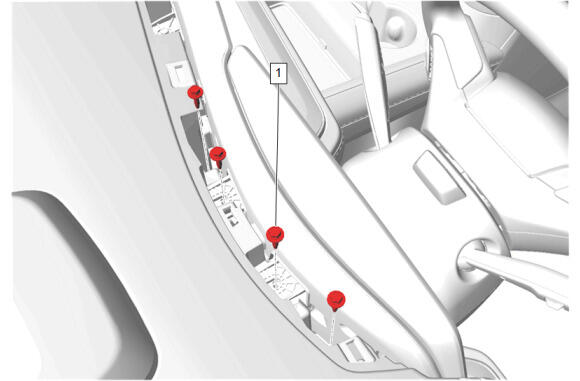

Instrument Cluster Bolt (1) - Install and tighten [4x] - Fastener Specifications

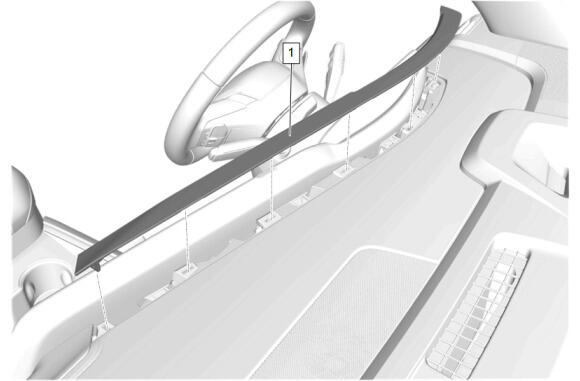

Instrument Panel Upper Trim Panel Cover (1) - Install
