Removal Procedure

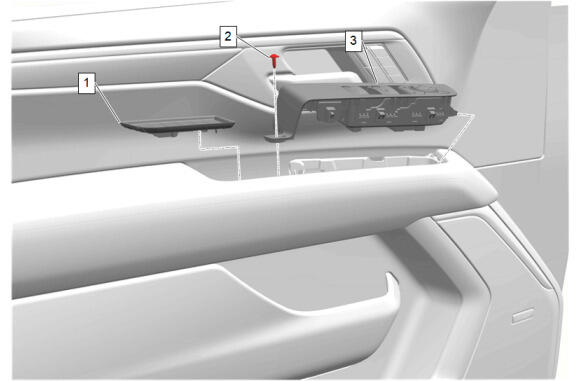

Front Side Door Armrest Pull Cup Bolt Cap (1) - Remove
- Front Side Door Trim Panel Bolt (2) - Remove
- Using a flat bladed plastic trim tool, start at the rear of the front side door accessory switch mount plate (3) and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim.
- Rotate the front side door accessory switch mount plate (3) up and rearward to unhook the front retaining feature.
- Disconnect the electrical connectors.
- Front Side Door Accessory Switch Mount Plate - Driver Side (3) - Remove
Release the front side door window control switch (1) from the switch mount plate by depressing the tabs along each side of the switch.
- Front Side Door Window Control Switch (1) - Remove
