Removal Procedure
- Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

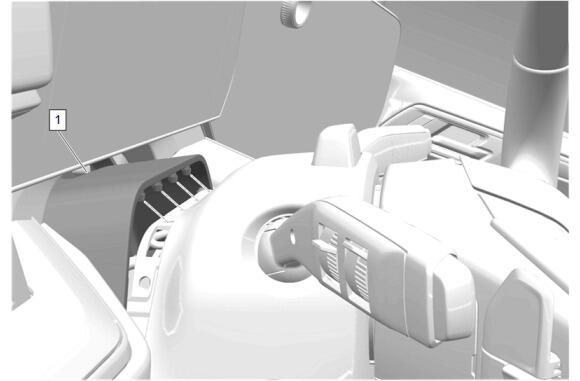

Using a small plastic trim tool, separate the instrument panel steering column opening closeout (1) from the instrument panel steering column upper trim cover.

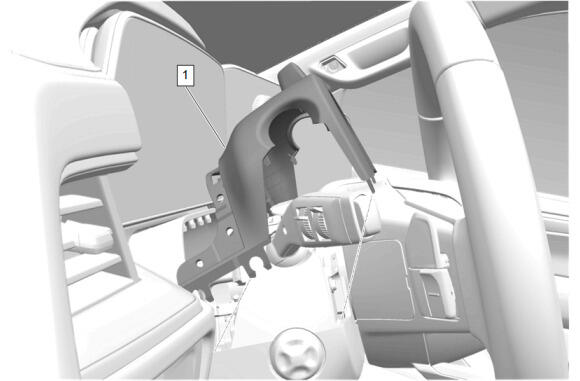

Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover and remove.
- NOTE:
Some components not shown for graphic clarity.
Disconnect the electrical connector. (1)
Driver Monitoring Camera (1) - Remove
