Fastener Specifications

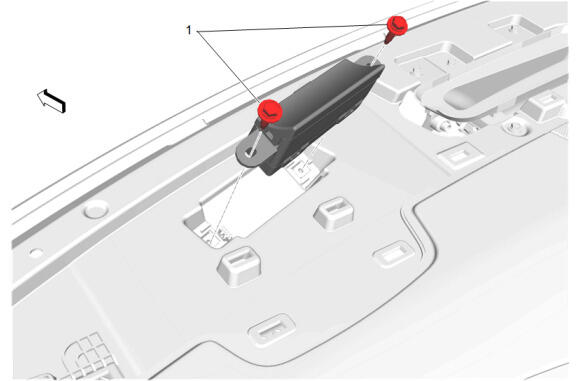

Forward Collision Alert Display (- UV6)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement (- UV6) |

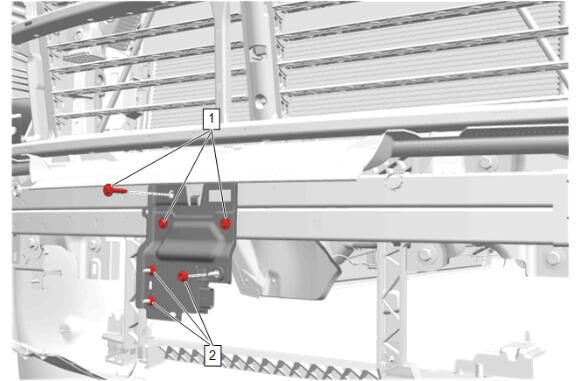

Front Body Mounted Sensors (UGN)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Bracket Bolt [3x] | - | - | 9 N.m (80 lb in) | Forward Range Radar Bracket Replacement (UGN) |
| 2 | Forward Range Radar Sensor Nut [3x] | - | - | 2.5 N.m (22 lb in) | Forward Range Radar Sensor Replacement (UGN) |

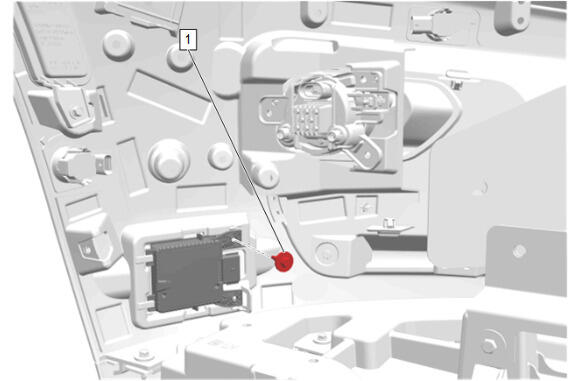

Front Short Range Radar Sensor (UKL)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt | - | - | 2.5 N.m (22 lb in) | Front Short Range Radar Sensor Replacement (UKL) |

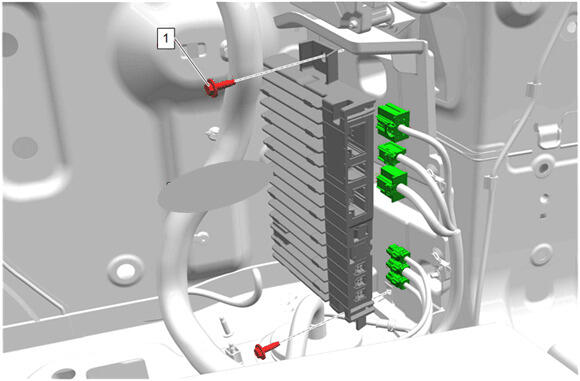

Image Processing Module (UKL / UK0)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Active Safety Control Module Bolt [2x] | - | - | 9 N.m (80 lb in) | Image Processing Module Replacement (UKL / UK0) |

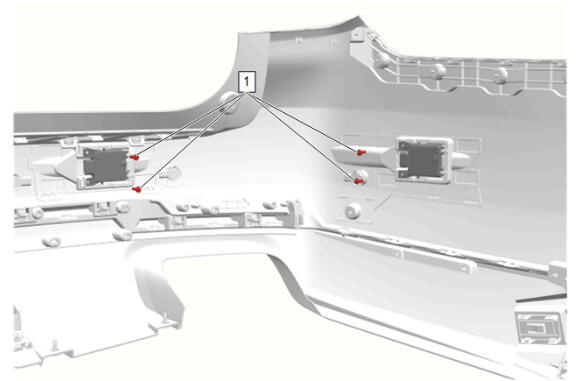

Rear Short Range Radar Rear Sensor & Rear Side Sensor (UKL)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Rear Sensor Replacement |
| Short Range Radar Rear Side Sensor Replacement (UKL) |

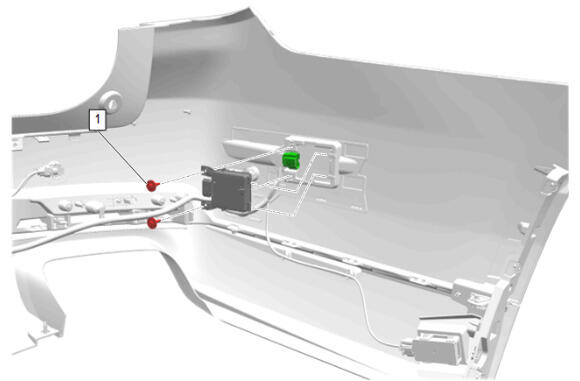

Side Obstacle Detection Control Module (UKI - UKL)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement (UKI - UKL) |
