Installation Procedure
Power Transfer Unit Heat Shield (2) - Install
- Power Transfer Unit Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications

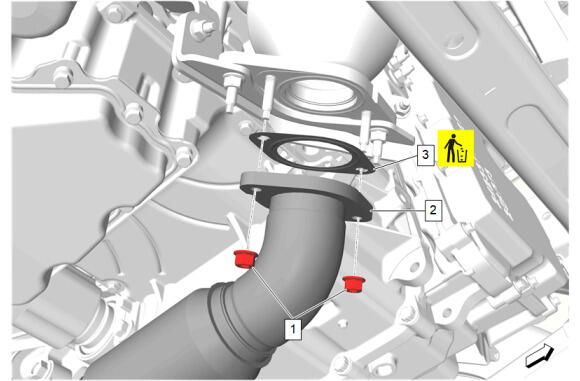

Exhaust System Front Gasket (3) - Install NEW
- Exhaust Front Pipe (2) - Install
- Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications
- Lower the vehicle.
- Inspect the exhaust system for leaks.
CAUTION:
Refer to Fastener Caution .
