Installation Procedure
Ignition Lock Key Transmitter Antenna Bracket (1) - Install

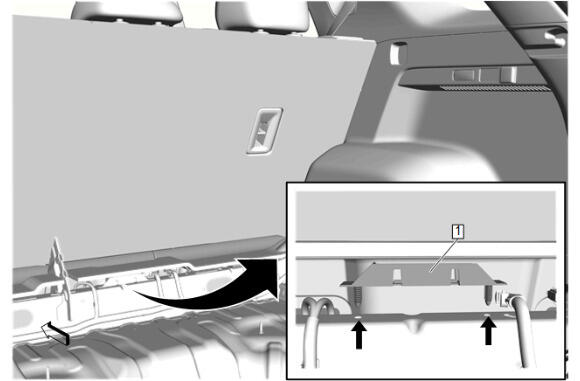

Low Frequency Rear Compartment Antenna (1) - Install
- Ensure that the retaining tabs are fully secured.
- Connect the electrical connector.
Rear Compartment Floor Stowage Trim Compartment (2) - Install
- Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
Rear Compartment Floor Panel Trim (1) - Install
Load Floor Trim Panel (1) - Install
CAUTION:
Refer to Fastener Caution
