Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

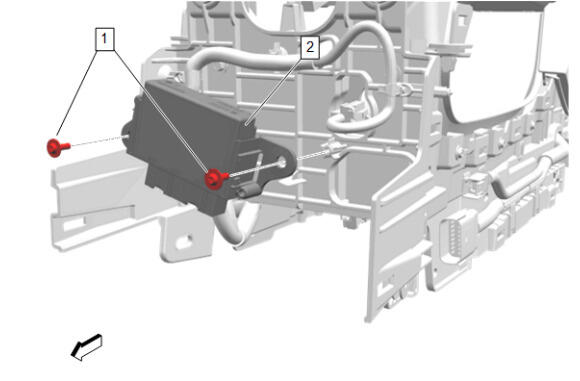

UHF Short Range Low Energy Remote Control Access Transceiver (2) - Install

CAUTION:

UHF Short Range Low Energy Remote Control Access Transceiver Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

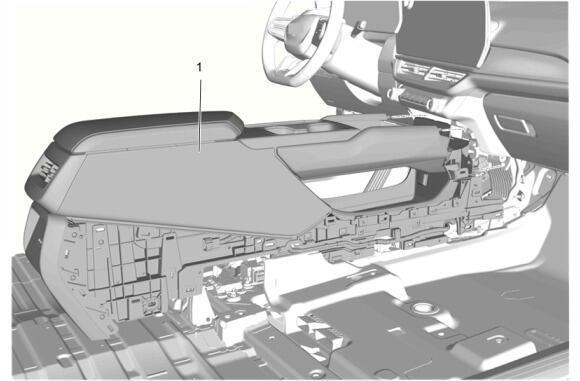

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Perform the necessary programming and setup procedure: Control Module References .
