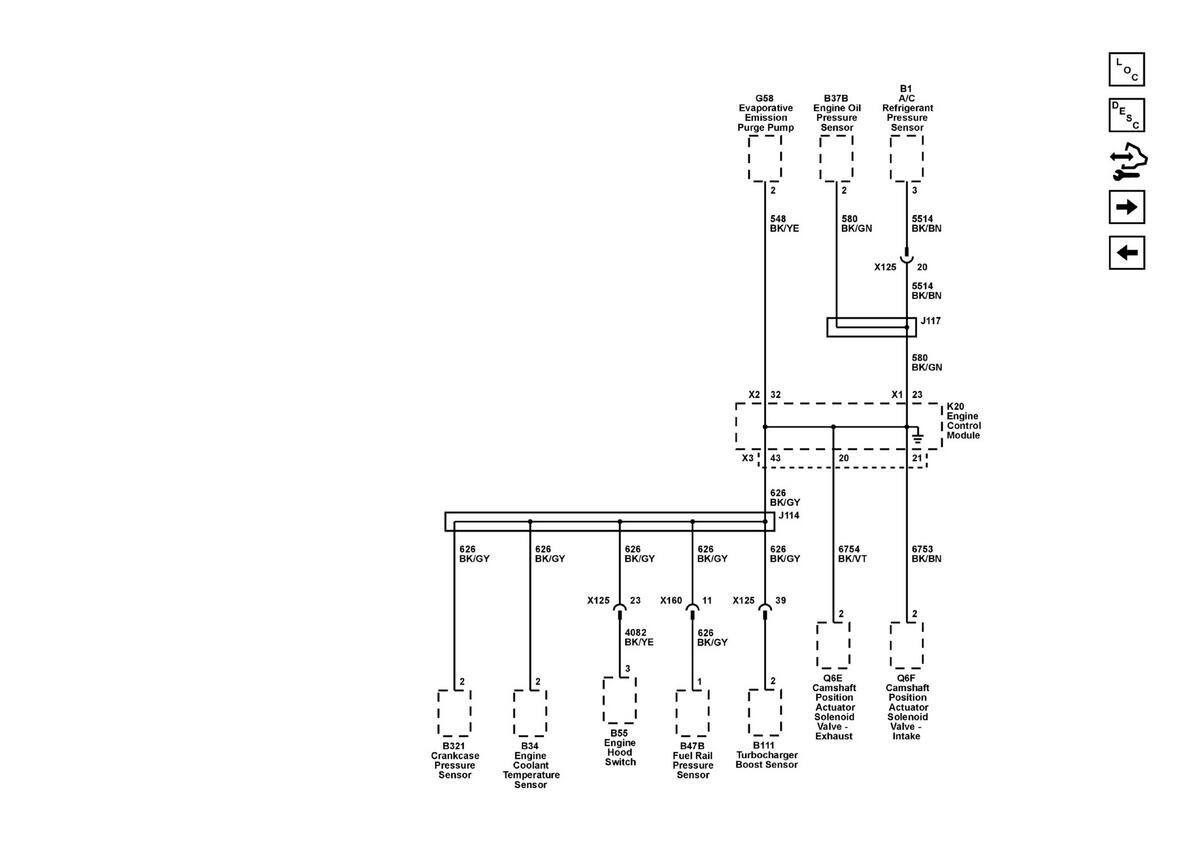

Home >> Chevrolet >> 2024 >> Trax LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 1.2L (LIH) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Low Reference Bus
