Installation Procedure

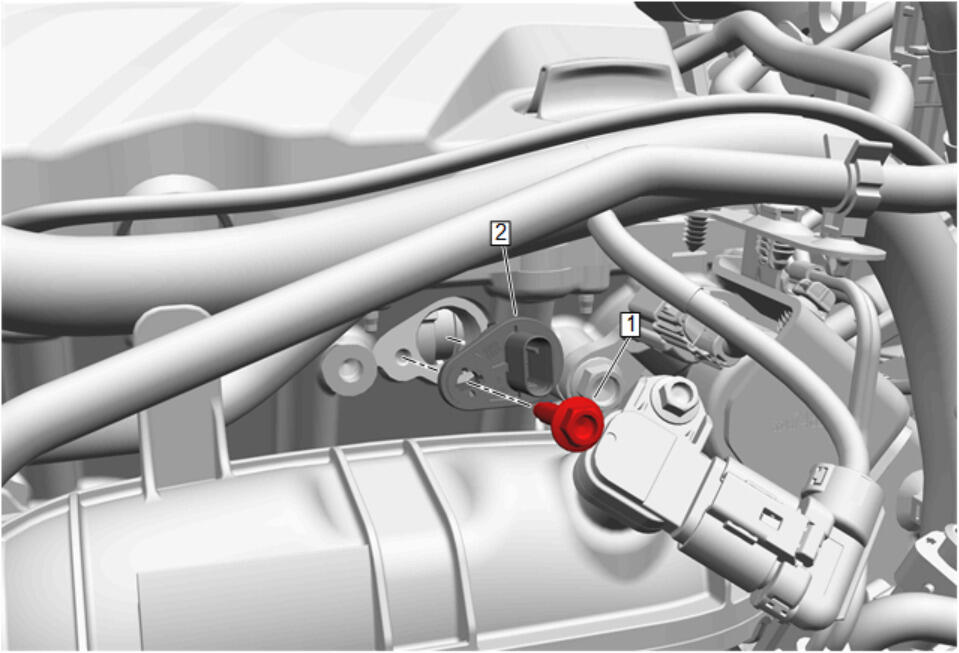

  1. GM5392479Courtesy of GENERAL MOTORS COMPANY

    Camshaft Position Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Camshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
