Installation Procedure

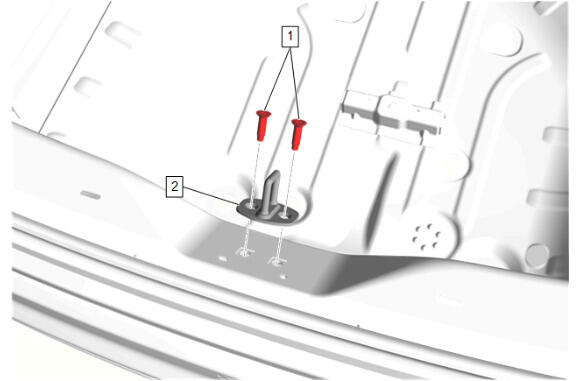

  1. GM5925400Courtesy of GENERAL MOTORS COMPANY

    Liftgate Latch Striker (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Liftgate Latch Striker Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5920420Courtesy of GENERAL MOTORS COMPANY

    Liftgate Sill Garnish Molding (1) - Install

  4. GM5919839Courtesy of GENERAL MOTORS COMPANY

    Load Floor Stowage Compartment Cover (1) - Install

  5. Close the liftgate.
