Installation Procedure

  1. GM6385114Courtesy of GENERAL MOTORS COMPANY

    Power Transfer Unit Heat Shield (2) - Install

  2. CAUTION:

    Refer to Fastener Caution .

  3. Power Transfer Unit Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. GM6426271Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Exhaust Pipe Gasket (2) - Install NEW

  5. Warm Up Three-Way Catalytic Converter (1) - Install
  6. GM6584103Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket Bolt (1) - Install and hand tighten [2x]

  7. Connect the electrical connector.
  8. GM6382897Courtesy of GENERAL MOTORS COMPANY

    Warm Up Three-Way Catalytic Converter Nut (1) - Install and tighten [4x] - Fastener Specifications

  9. GM6584103Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket Bolt (1) - Tighten [2x] - Fastener Specifications

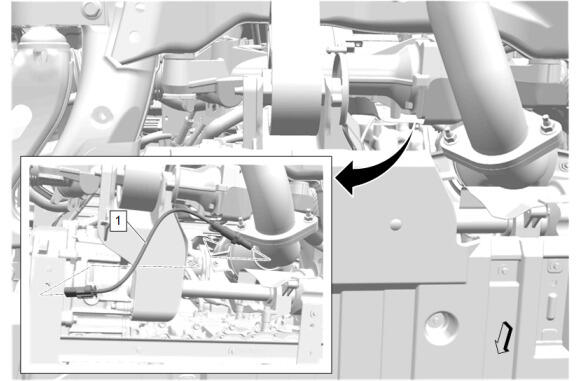

  10. GM6410391Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector @ Heated Oxygen Sensor (1) - Connect

  11. GM6398843Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Front Heat Shield- Inner (1) - Install

  12. GM6398179Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

  13. GM6397729Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Front Heat Shield- Outer (1) - Install

  14. GM6397678Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Using a torque adapter may be helpful for bolt access.

    Turbocharger Heat Shield Bolt (1) - Install and tighten [4x] - Fastener Specifications

  15. GM6396334Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

    Using a suitable tool, install and tighten the heated oxygen sensor (1). Fastener Specifications

  16. Connect the electrical connector.
  17. Drivetrain and Front Suspension Cradle - Install - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (FWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (Z71)
  18. Inspect the exhaust system for leaks.
