Installation Procedure

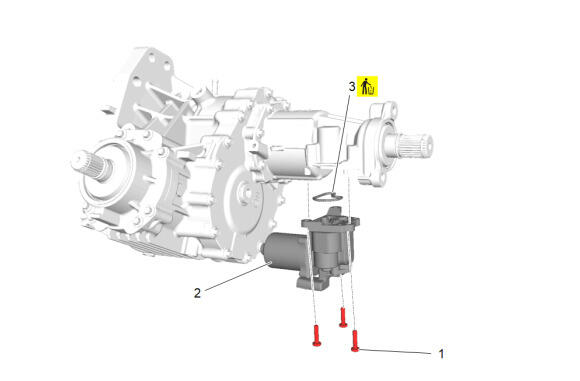

  1. GM6457262Courtesy of GENERAL MOTORS COMPANY

    Power Transfer Unit Shift Actuator Seal (3) - Install NEW

  2. Power Transfer Unit Shift Actuator (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Power Transfer Unit Shift Actuator Bolt (1) - Install and tighten - Fastener Specifications
  4. Connect the electrical connectors and install the wiring harness retainers as necessary.
  5. Install underbody panels as necessary. Underbody Panel Component Locator
