Installation Procedure

  1. GM4769184Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Buckle (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Refer to Fastener Caution .

  3. 3rd Row Seat Belt Buckle Nut (1) - Install and tighten - Fastener Specifications
  4. GM6399531Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Divider (2) - Install

  5. Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
  6. GM6399529Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Front Trim (1) - Install

  7. GM6399524Courtesy of GENERAL MOTORS COMPANY

    Load Floor Trim Panel (1) - Install

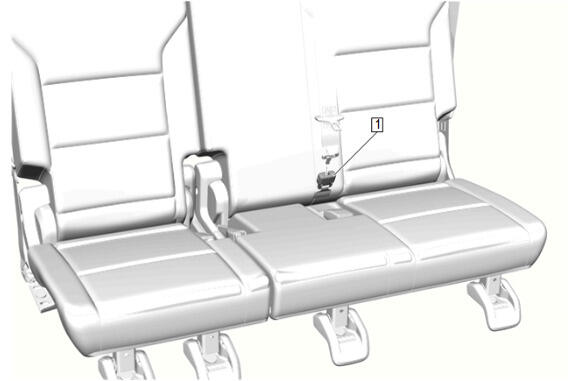

  8. GM6417461Courtesy of GENERAL MOTORS COMPANY

    Install the mini buckle. (1)
