Installation Procedure

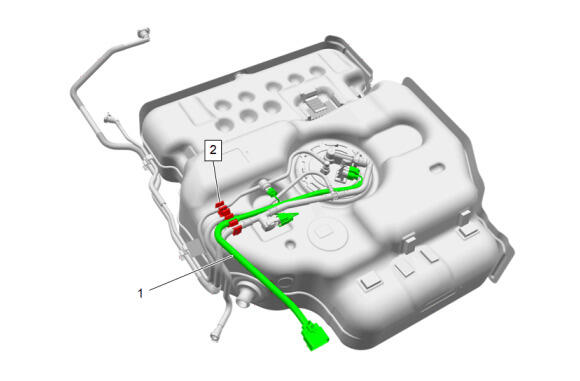

  1. GM6407665Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Fuel Pump Module Wiring Harness (1) @ Clip (2) - Install

  2. Connect all electrical connectors. [3x]

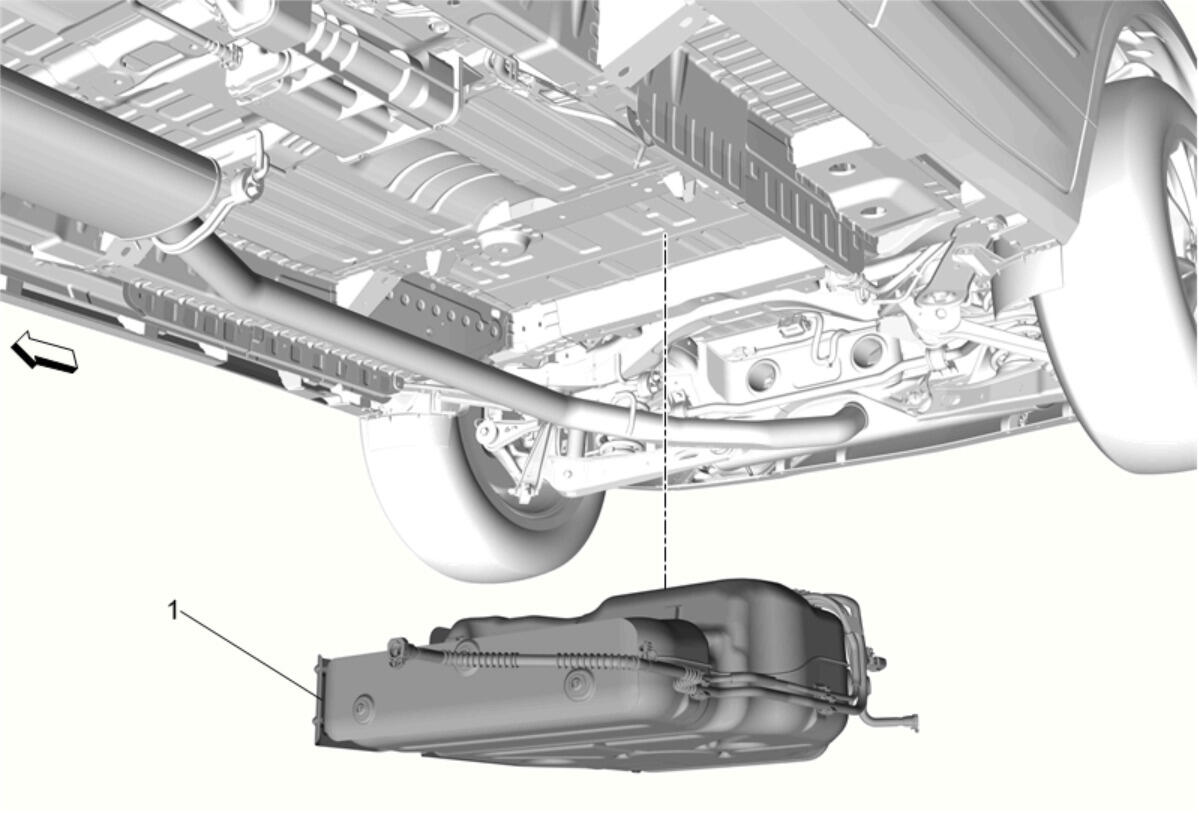

  3. GM5163159Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  4. Fuel Tank (1) - Install

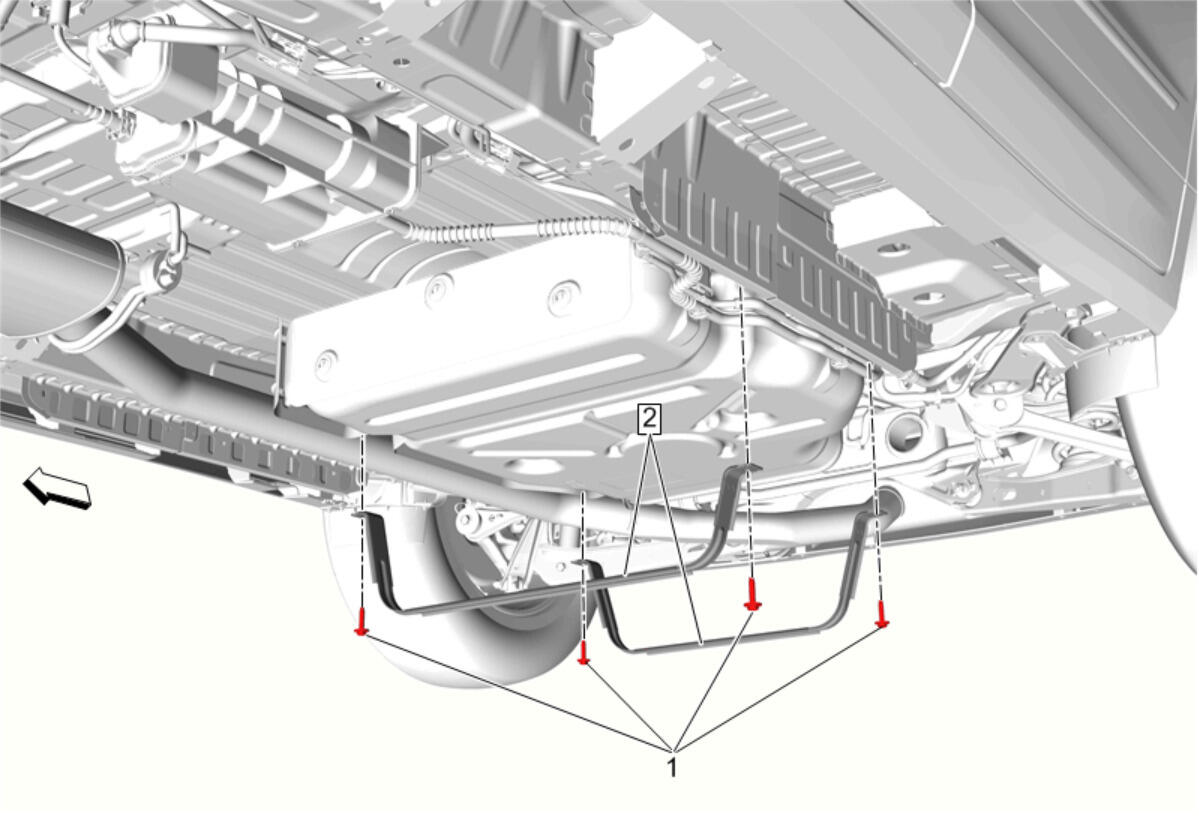

  5. GM5163149Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [2x]

    6. CAUTION:

    Fastener Caution

  6. Fuel Tank Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications

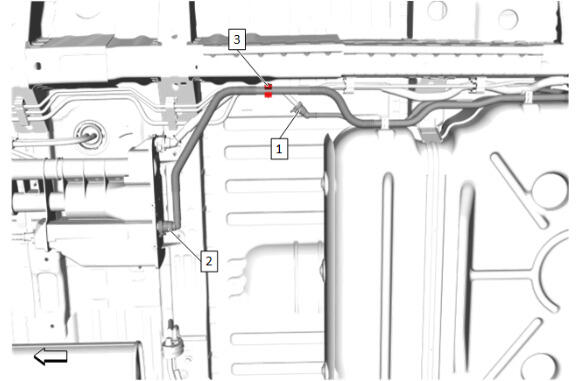

  7. GM6538008Courtesy of GENERAL MOTORS COMPANY

    Retainer (3) - Install

  8. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  9. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

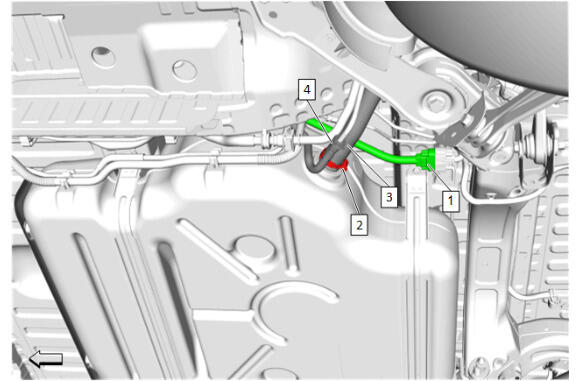

  10. GM6538007Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  11. Fuel Tank Filler Hose (3) - Install
  12. Fuel Tank Filler Hose Clamp (2) - Tighten - Fastener Specifications
  13. Wiring Harness (1) - Connect
  14. Remove the support and lower the vehicle.
  15. Refill the fuel tank.
  16. Inspect for fuel leaks.
